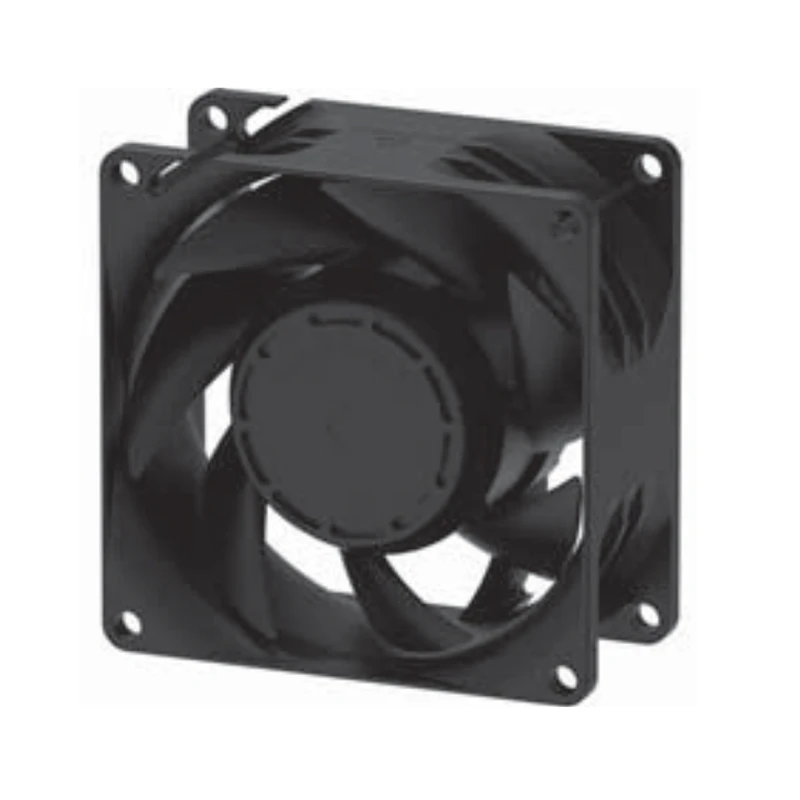

PF80382B3-10000-A9H SUNON Axial Fan

Brand :: SUNON

Model:: PF80382B3-10000-A9H | SUNON 24V 6.87W 80x80x38mm 126.6m3/h DC Axial Fan for Data Center Cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: SUNON PF80382B3-10000-A9H combines a 80 × 80 × 38 mm DC axial fan platform with a 24 VDC rating for servers and data-center electronics. 142 Pa maximum pressure is the standout documented duty-point value. Base operating-cost analysis on the stated cooling output. Validate mounting and wiring from the model drawing.

Datasheet:: PF80382B3-10000-A9H | SUNON 24V 6.87W 80x80x38mm 126.6m3/h DC Axial Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	80x80x38mm
Max.Air Flow(m³/h)	126.6
Max.Pressure(Pa)	142
Input Power(W)	6.87
Speed(rpm)	5600
Noise(db)	51.5

Product Features

Reliable Fan Cooling

Equipment builders can integrate SUNON PF80382B3-10000-A9H, a DC brushless axial fan, into server and data-center equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

When qualifying PF80382B3-10000-A9H, give specific attention to service access. Use duty-point validation in equipment qualification to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Record the intended operating point on the system resistance curve.

Application Industry

Server Cooling

SUNON PF80382B3-10000-A9H serves server platforms. Airflow around processors, memory and power components helps address sustained computing loads. The fan gives OEM equipment a defined air route and supports stable server operation. It supports reliable equipment cooling.

Storage Systems

SUNON PF80382B3-10000-A9H serves storage equipment. Airflow around drives, controllers and power assemblies helps address continuous data workloads. The fan gives OEM equipment a defined air route and supports reliable storage availability. It supports reliable equipment cooling.

Edge Computing

SUNON PF80382B3-10000-A9H serves edge-computing systems. Airflow around compact processing and communication modules helps address high heat density. The fan gives OEM equipment a defined air route and supports consistent thermal control. It supports reliable equipment cooling.

Data Center Equipment

SUNON PF80382B3-10000-A9H serves data-center equipment. Airflow around critical computing assemblies helps address round-the-clock heat generation. The fan gives OEM equipment a defined air route and supports infrastructure availability. It supports reliable equipment cooling.

Frequently Asked Questions

How is PF80382B3-10000-A9H electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for PF80382B3-10000-A9H?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose PF80382B3-10000-A9H over a general cooling fan?

Its documented 24 VDC rating and 142 pa maximum pressure is the standout documented duty-point value. allow comparison with the required duty point without assuming unlisted options.

What voltage is required by PF80382B3-10000-A9H?

The listed rating is 24 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

What should be checked if PF80382B3-10000-A9H stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What bearing information is confirmed for PF80382B3-10000-A9H?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.
