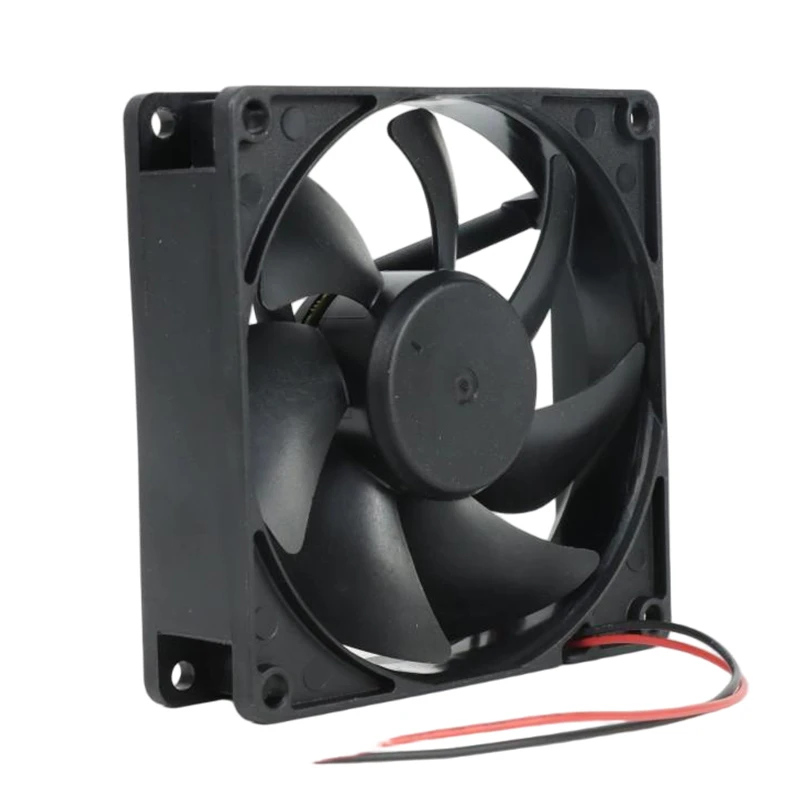

PF92252V1-10000-A99 SUNON Axial Fan

Brand :: SUNON

Model:: PF92252V1-10000-A99 | SUNON 24V 5.04W 92x92x25mm 127.4m3/h DC Axial Fan for Data Center Cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For airflow duties across servers and data-center electronics, the PF92252V1-10000-A99 provides a 24 VDC DC axial fan configuration measuring 92 × 92 × 25 mm. Up to 127.4 m³/h is its most prominent listed performance figure. During operating-cost analysis, compare the model's equipment fit. Validate mounting and wiring from the model drawing.

Datasheet:: PF92252V1-10000-A99 | SUNON 24V 5.04W 92x92x25mm 127.4m3/h DC Axial Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x25mm
Max.Air Flow(m³/h)	127.4
Max.Pressure(Pa)	87.2
Input Power(W)	5.04
Speed(rpm)	4500
Noise(db)	45.5

Product Features

MagLev Cooling

The SUNON PF92252V1-10000-A99 positions a DC brushless axial fan for server and data-center equipment. Its airflow path supports heat removal from enclosed components and toward the equipment exhaust.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats.

Design approval for PF92252V1-10000-A99 should cover cable routing together with thermal-load testing in equipment qualification. This creates a practical link between thermal validation, purchasing documentation and future servicing. Secure conductors away from the impeller and high-temperature components. The final assembly should be tested under its expected thermal load.

Application Industry

Server Cooling

SUNON PF92252V1-10000-A99 serves server platforms. Airflow around processors, memory and power components helps address sustained computing loads. The fan gives OEM equipment a defined air route and supports stable server operation. It supports reliable equipment cooling.

Storage Systems

SUNON PF92252V1-10000-A99 serves storage equipment. Airflow around drives, controllers and power assemblies helps address continuous data workloads. The fan gives OEM equipment a defined air route and supports reliable storage availability. It supports reliable equipment cooling.

Edge Computing

SUNON PF92252V1-10000-A99 serves edge-computing systems. Airflow around compact processing and communication modules helps address high heat density. The fan gives OEM equipment a defined air route and supports consistent thermal control. It supports reliable equipment cooling.

Data Center Equipment

SUNON PF92252V1-10000-A99 serves data-center equipment. Airflow around critical computing assemblies helps address round-the-clock heat generation. The fan gives OEM equipment a defined air route and supports infrastructure availability. It supports reliable equipment cooling.

Frequently Asked Questions

What bearing information is confirmed for PF92252V1-10000-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should PF92252V1-10000-A99 be matched to an enclosure?

Review its 92 × 92 × 25 mm size, 127.4 m³/h airflow, 87.2 Pa pressure, system resistance, and available mounting space.

Can PF92252V1-10000-A99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

What protection rating does PF92252V1-10000-A99 have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

What maintenance is recommended for PF92252V1-10000-A99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.
