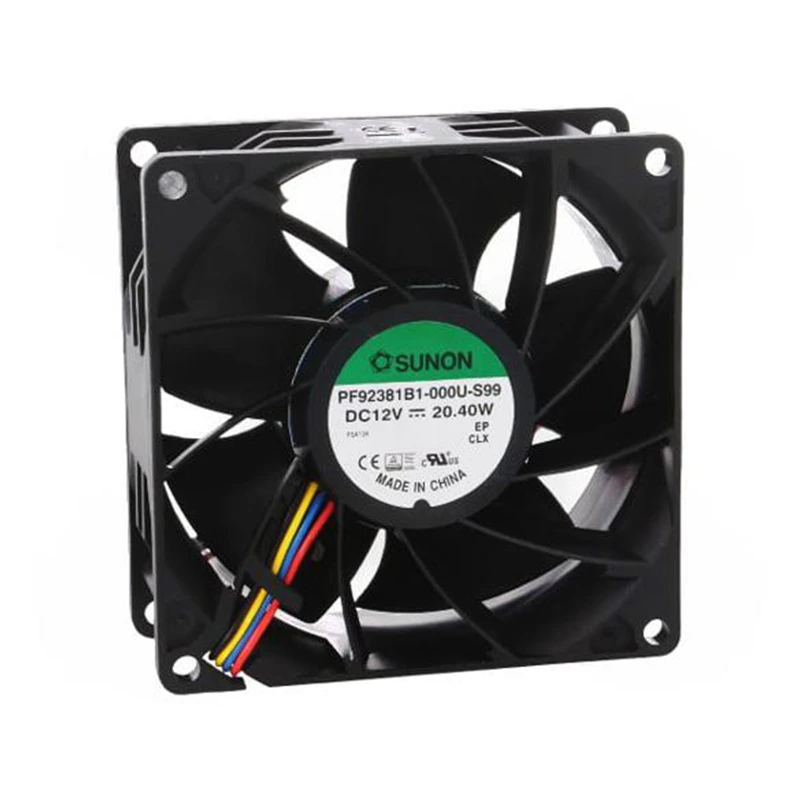

PF92381B1-000U-S99 SUNON Axial Fan

Brand :: SUNON

Model:: PF92381B1-000U-S99 | SUNON 12V 22.2W 92x92x38mm 234.6m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Equipment designers working with servers and data-center electronics can evaluate SUNON PF92381B1-000U-S99, a DC axial fan rated at 12 VDC and sized 92 × 92 × 38 mm. Up to 234.6 m³/h is its most prominent listed performance figure. Use the documented speed benchmark when planning controller selection. Treat bearing and life data as suffix-specific.

Datasheet:: PF92381B1-000U-S99 | SUNON 12V 22.2W 92x92x38mm 234.6m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	234.6
Max.Pressure(Pa)	485.7
Input Power(W)	22.2
Speed(rpm)	9300
Noise(db)	62.9

Product Features

High Airflow Cooling

SUNON PF92381B1-000U-S99 is a DC brushless axial fan for industrial equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. The enclosure should direct air across the heat source because bypass flow can reduce cooling even when the fan runs normally.

OEM teams specifying PF92381B1-000U-S99 should check airflow direction and complete maintenance planning during prototype approval. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Verify orientation so heated air does not recirculate through the inlet.

Application Industry

Industrial Equipment

SUNON PF92381B1-000U-S99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What maintenance is recommended for PF92381B1-000U-S99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

How can PF92381B1-000U-S99 affect operating cost?

Compare its listed 22.2 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What speed is listed for PF92381B1-000U-S99?

The listed speed is 9300 rpm. Confirm frequency, control method, and duty point for the installed system.

Is PF92381B1-000U-S99 suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

What installation checks apply to PF92381B1-000U-S99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.
