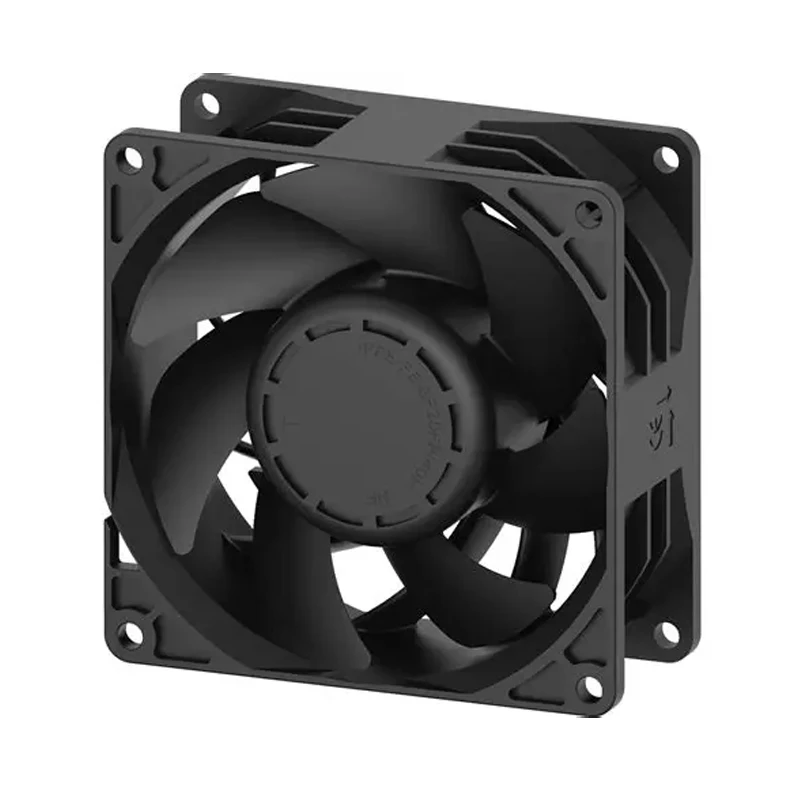

PF92381B1-10000-A9H SUNON Axial Fan

Brand :: SUNON

Model:: PF92381B1-10000-A9H | SUNON 12V 22.2W 92x92x38mm 234.6m3/h DC Axial Fan for Data Center Cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Within servers and data-center electronics, SUNON PF92381B1-10000-A9H serves as a 92 × 92 × 38 mm DC axial fan operating at 12 VDC. Up to 234.6 m³/h is its most prominent listed performance figure. Review its rated dataset during operating-cost analysis. Validate mounting and wiring from the model drawing.

Datasheet:: PF92381B1-10000-A9H | SUNON 12V 22.2W 92x92x38mm 234.6m3/h DC Axial Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	234.6
Max.Pressure(Pa)	485.7
Input Power(W)	22.2
Speed(rpm)	9300
Noise(db)	62.9

Product Features

High Airflow Cooling

Equipment builders can integrate SUNON PF92381B1-10000-A9H, a DC brushless axial fan, into server and data-center equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling.

OEM teams specifying PF92381B1-10000-A9H should check airflow direction and complete acoustic evaluation in equipment qualification. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Measure sound after mounting because the enclosure changes transmission. The final assembly should be tested under its expected thermal load.

Application Industry

Server Cooling

SUNON PF92381B1-10000-A9H serves server platforms. Airflow around processors, memory and power components helps address sustained computing loads. The fan gives OEM equipment a defined air route and supports stable server operation. It supports reliable equipment cooling.

Storage Systems

SUNON PF92381B1-10000-A9H serves storage equipment. Airflow around drives, controllers and power assemblies helps address continuous data workloads. The fan gives OEM equipment a defined air route and supports reliable storage availability. It supports reliable equipment cooling.

Edge Computing

SUNON PF92381B1-10000-A9H serves edge-computing systems. Airflow around compact processing and communication modules helps address high heat density. The fan gives OEM equipment a defined air route and supports consistent thermal control. It supports reliable equipment cooling.

Data Center Equipment

SUNON PF92381B1-10000-A9H serves data-center equipment. Airflow around critical computing assemblies helps address round-the-clock heat generation. The fan gives OEM equipment a defined air route and supports infrastructure availability. It supports reliable equipment cooling.

Frequently Asked Questions

How should PF92381B1-10000-A9H be matched to an enclosure?

Review its 92 × 92 × 38 mm size, 234.6 m³/h airflow, 485.7 Pa pressure, system resistance, and available mounting space.

What certification information is listed for PF92381B1-10000-A9H?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

Which selection data still require confirmation for PF92381B1-10000-A9H?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Does PF92381B1-10000-A9H support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

How should buyers confirm availability of PF92381B1-10000-A9H?

Stock and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What speed is listed for PF92381B1-10000-A9H?

The listed speed is 9300 rpm. Confirm frequency, control method, and duty point for the installed system.
