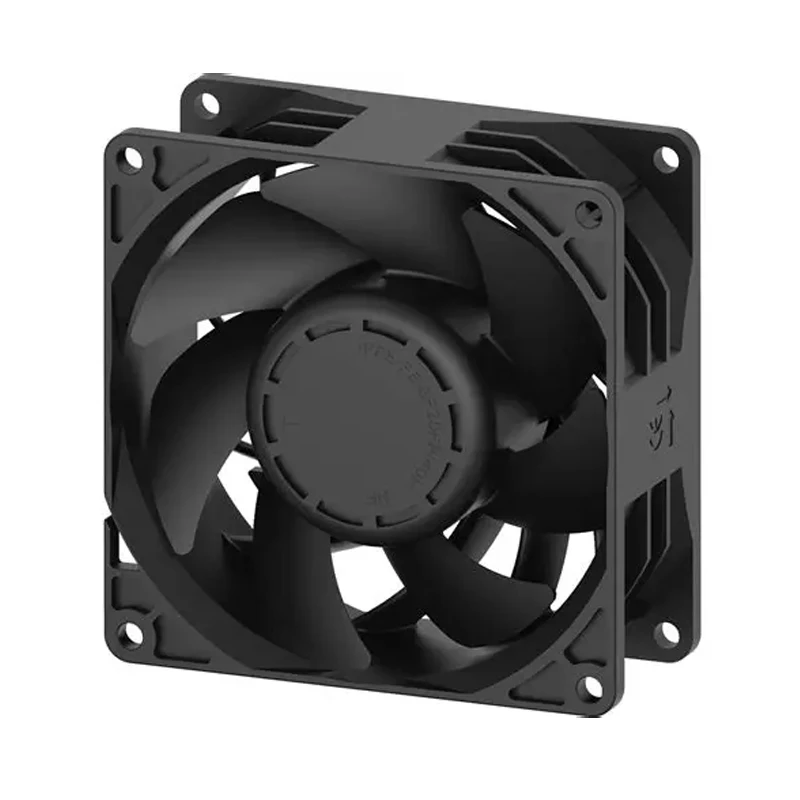

PF92381BX-10000-A9H SUNON Axial Fan

Brand :: SUNON

Model:: PF92381BX-10000-A9H | SUNON 12V 50.4W 92x92x38mm 309.9m3/h 12000rpm DC Axial Fan for New Energy

Type:: Axial Fans

Industry:: New Energy

Description:: Within inverters, energy-storage systems, and charging equipment, PF92381BX-10000-A9H provides a 92 × 92 × 38 mm, 12 VDC DC axial fan configuration. Up to 309.9 m³/h is its most prominent listed performance figure. The recorded duty-point values should guide operating-cost analysis. Validate mounting and wiring from the model drawing.

Datasheet:: PF92381BX-10000-A9H | SUNON 12V 50.4W 92x92x38mm 309.9m3/h 12000rpm DC Axial Fan for New Energy Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	309.9
Max.Pressure(Pa)	732.3
Input Power(W)	50.4
Speed(rpm)	12000
Noise(db)	70.2

Product Features

High Airflow Cooling

SUNON PF92381BX-10000-A9H is a DC brushless axial fan for new-energy power equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

System designers selecting PF92381BX-10000-A9H should account for filter loading, then schedule acoustic evaluation in equipment qualification. This approach links equipment cooling needs with practical procurement and service decisions. Allow operating margin for dust accumulation across the selected filter.

Application Industry

Energy Storage

SUNON PF92381BX-10000-A9H serves energy-storage systems. Airflow around battery-control and power-conversion assemblies helps address charging and discharging losses. The fan gives OEM equipment a defined air route and supports stable ESS operation. It supports reliable equipment cooling.

PV Inverters

SUNON PF92381BX-10000-A9H serves photovoltaic inverters. Airflow around switching devices and control electronics helps address solar power-conversion heat. The fan gives OEM equipment a defined air route and supports dependable inverter duty. It supports reliable equipment cooling.

EV Charging

SUNON PF92381BX-10000-A9H serves electric-vehicle charging equipment. Airflow around power modules and control assemblies helps address high charging loads. The fan gives OEM equipment a defined air route and supports reliable charging operation. It supports reliable equipment cooling.

Frequently Asked Questions

How should PF92381BX-10000-A9H be matched to an enclosure?

Review its 92 × 92 × 38 mm size, 309.9 m³/h airflow, 732.3 Pa pressure, system resistance, and available mounting space.

What certification information is listed for PF92381BX-10000-A9H?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is PF92381BX-10000-A9H electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Does PF92381BX-10000-A9H support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

How can PF92381BX-10000-A9H affect operating cost?

Compare its listed 50.4 W input with the required airflow and run time. Total savings depend on the complete system duty point.
