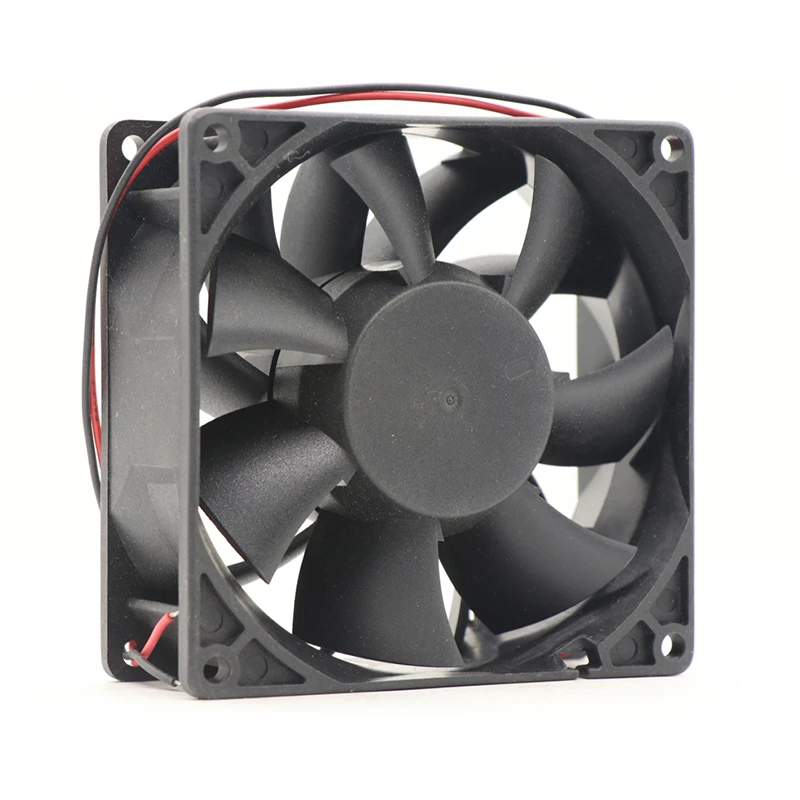

PMD1209PMB1A SUNON Axial Fan

Brand :: SUNON

Model:: PMD1209PMB1A | SUNON 12V 12.5W 92x92x38mm 204.2m3/h 4900rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON PMD1209PMB1A combines a 92 × 92 × 38 mm DC blower platform with a 12 VDC rating for industrial electronics and equipment cooling. Up to 204.2 m³/h is its most prominent listed performance figure. Use the documented speed benchmark when planning engineering comparison. Confirm temperature and service-life limits from current data.

Datasheet:: PMD1209PMB1A | SUNON 12V 12.5W 92x92x38mm 204.2m3/h 4900rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	204.2
Max.Pressure(Pa)	176.9
Input Power(W)	12.5
Speed(rpm)	4900
Noise(db)	57.6

Product Features

High Airflow Cooling

Equipment builders can integrate SUNON PMD1209PMB1A, a DC brushless axial fan, into industrial equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

OEM teams specifying PMD1209PMB1A should check airflow direction and complete replacement-fit checks before volume production. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Verify mounting, connector and airflow direction against the replacement space.

Application Industry

Industrial Equipment

SUNON PMD1209PMB1A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What bearing information is confirmed for PMD1209PMB1A?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should PMD1209PMB1A be matched to an enclosure?

Review its 92 × 92 × 38 mm size, 204.2 m³/h airflow, 176.9 Pa pressure, system resistance, and available mounting space.

What certification information is listed for PMD1209PMB1A?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

Which selection data still require confirmation for PMD1209PMB1A?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Does PMD1209PMB1A support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

How can PMD1209PMB1A affect operating cost?

Compare its listed 12.5 W input with the required airflow and run time. Total savings depend on the complete system duty point.

Related Products

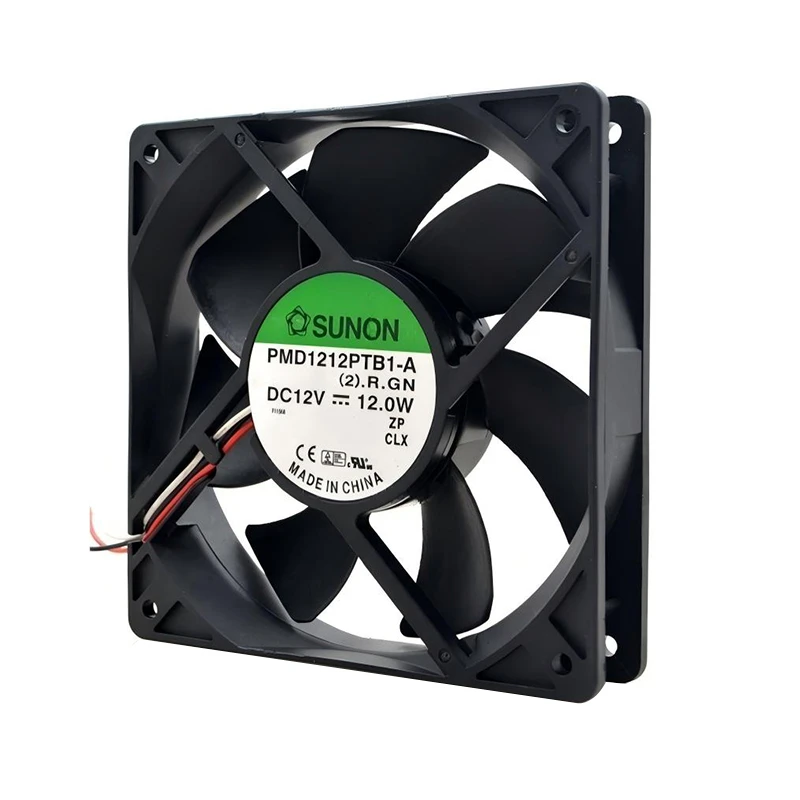

PMD1212PTB1-A | SUNON 12V 12W 120x120x25mm 254.9m3/h 4500rpm DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, PMD1212PTB1-A provides a 120 × 120 × 25 mm, 12 VDC DC axial fan configuration. Up to 254.9 m³/h is its most prominent listed performance figure. Base engineering comparison on the stated duty-point values. Confirm temperature and service-life limits from current data.

PMD1209PMB1-A(2).GN | SUNON 12V 12.5W 92x92x38mm 204.34m3/h DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, SUNON PMD1209PMB1-A(2).GN serves as a 92 × 92 × 38 mm DC axial fan operating at 12 VDC. Up to 204.34 m³/h is its most prominent listed performance figure. For engineering comparison, start with the supplied rated dataset. Confirm temperature and service-life limits from current data.

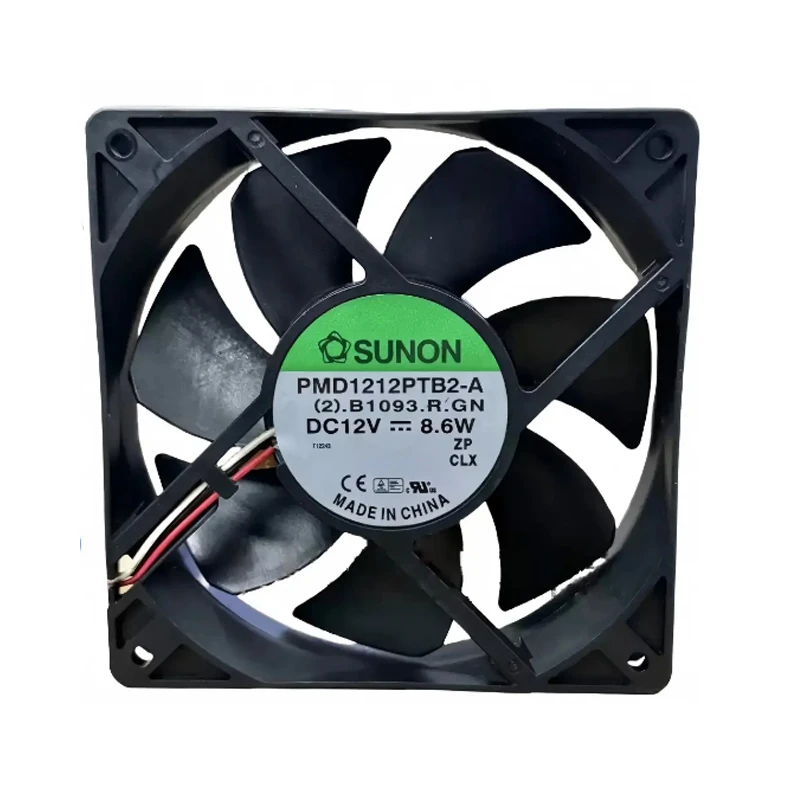

PMD1212PTB2-A | SUNON 12V 8.6W 120x120x25mm 226m3/h 4000rpm DC Axial Fan for Industrial Cooling

The PMD1212PTB2-A is SUNON's 12 VDC, 120 × 120 × 25 mm DC axial fan option for industrial electronics and equipment cooling. Up to 226 m³/h is its most prominent listed performance figure. Treat the cooling specification as a primary input to engineering comparison. Confirm temperature and service-life limits from current data.

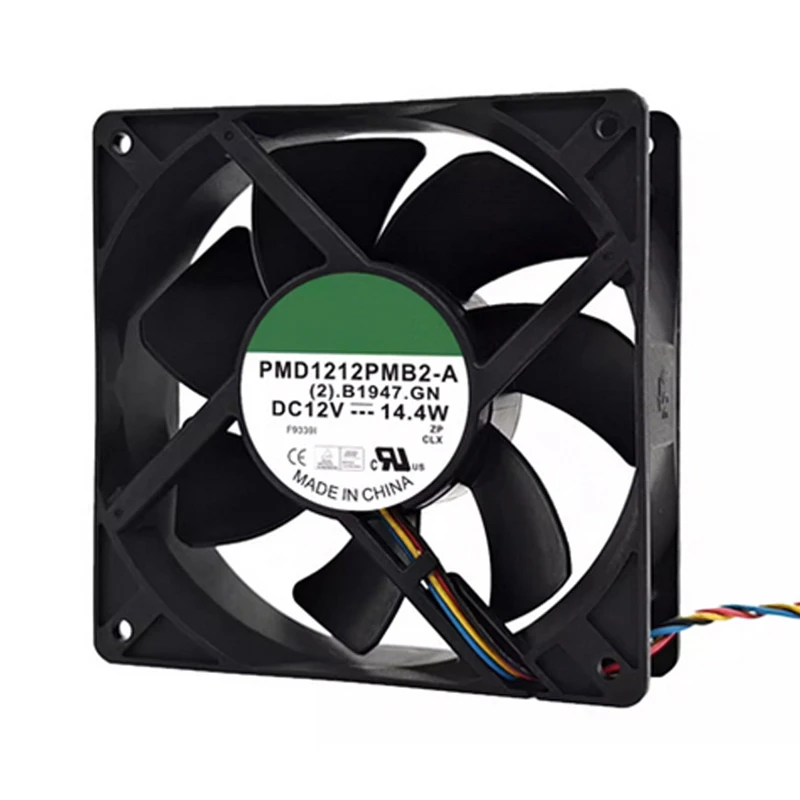

PMD1212PMB2-A | SUNON 12V 14.4W 120x120x38mm 288.8m3/h DC Axial Fan for Industrial Cooling

SUNON PMD1212PMB2-A combines a 120 × 120 × 38 mm DC axial fan platform with a 12 VDC rating for industrial electronics and equipment cooling. Up to 288.8 m³/h is its most prominent listed performance figure. During engineering comparison, compare the model's installation footprint. Confirm temperature and service-life limits from current data.

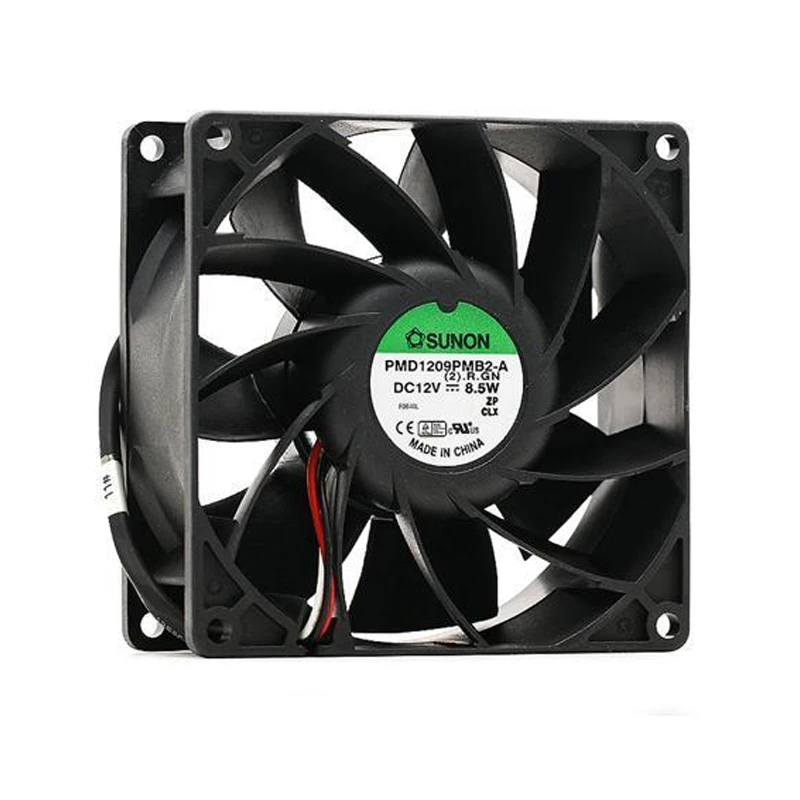

PMD1209PMB2-A | SUNON 12V 8.5W 92x92x38mm 180.6m3/h 4400rpm DC Axial Fan for Industrial Cooling

Applied in industrial electronics and equipment cooling, SUNON PMD1209PMB2-A is a 12 VDC DC axial fan in a 92 × 92 × 38 mm frame. Up to 180.6 m³/h is its most prominent listed performance figure. The recorded selection parameters should guide engineering comparison. Confirm temperature and service-life limits from current data.

PMD2407PKB1-A | SUNON 24V 5W 70x70x20mm DC Axial Fan for Industrial Cooling

The PMD2407PKB1-A is SUNON's 24 VDC, 70 × 70 × 20 mm DC blower option for industrial electronics and equipment cooling. 5 W input is the defining electrical load in the supplied data. Review its ventilation capacity during engineering comparison. Confirm temperature and service-life limits from current data.
