PMD1212PTB2-A SUNON Axial Fan

Brand :: SUNON

Model:: PMD1212PTB2-A | SUNON 12V 8.6W 120x120x25mm 226m3/h 4000rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The PMD1212PTB2-A is SUNON's 12 VDC, 120 × 120 × 25 mm DC axial fan option for industrial electronics and equipment cooling. Up to 226 m³/h is its most prominent listed performance figure. Treat the cooling specification as a primary input to engineering comparison. Confirm temperature and service-life limits from current data.

Datasheet:: PMD1212PTB2-A | SUNON 12V 8.6W 120x120x25mm 226m3/h 4000rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	120x120x25mm
Max.Air Flow(m³/h)	226
Max.Pressure(Pa)	124.5
Input Power(W)	8.6
Speed(rpm)	4000
Noise(db)	51

Product Features

High Airflow Cooling

SUNON PMD1212PTB2-A supports industrial equipment with DC brushless axial fan airflow. It is intended for installations where predictable air exchange is central to equipment stability.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

A dependable PMD1212PTB2-A installation starts with a review of exhaust separation. Complete system-resistance review before volume production to confirm compatibility, operating margin and the information needed for repeat orders. Include filters, vents and grilles when checking available airflow.

Application Industry

Industrial Equipment

SUNON PMD1212PTB2-A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Is PMD1212PTB2-A suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

Does PMD1212PTB2-A have a documented pressure rating?

Yes. The worksheet lists up to 124.5 Pa; compare it with the system curve.

Which performance figures define PMD1212PTB2-A?

Use the listed voltage, size, 226 m³/h airflow, 4000 rpm, and 8.6 W input for preliminary comparison.

What certification information is listed for PMD1212PTB2-A?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

What protection rating does PMD1212PTB2-A have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

What maintenance is recommended for PMD1212PTB2-A?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Related Products

PMD1212PMB2-A | SUNON 12V 14.4W 120x120x38mm 288.8m3/h DC Axial Fan for Industrial Cooling

SUNON PMD1212PMB2-A combines a 120 × 120 × 38 mm DC axial fan platform with a 12 VDC rating for industrial electronics and equipment cooling. Up to 288.8 m³/h is its most prominent listed performance figure. During engineering comparison, compare the model's installation footprint. Confirm temperature and service-life limits from current data.

PMD1209PMB2-A | SUNON 12V 8.5W 92x92x38mm 180.6m3/h 4400rpm DC Axial Fan for Industrial Cooling

Applied in industrial electronics and equipment cooling, SUNON PMD1209PMB2-A is a 12 VDC DC axial fan in a 92 × 92 × 38 mm frame. Up to 180.6 m³/h is its most prominent listed performance figure. The recorded selection parameters should guide engineering comparison. Confirm temperature and service-life limits from current data.

PMD1212PTB1-A | SUNON 12V 12W 120x120x25mm 254.9m3/h 4500rpm DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, PMD1212PTB1-A provides a 120 × 120 × 25 mm, 12 VDC DC axial fan configuration. Up to 254.9 m³/h is its most prominent listed performance figure. Base engineering comparison on the stated duty-point values. Confirm temperature and service-life limits from current data.

PMD2407PKB1-A | SUNON 24V 5W 70x70x20mm DC Axial Fan for Industrial Cooling

The PMD2407PKB1-A is SUNON's 24 VDC, 70 × 70 × 20 mm DC blower option for industrial electronics and equipment cooling. 5 W input is the defining electrical load in the supplied data. Review its ventilation capacity during engineering comparison. Confirm temperature and service-life limits from current data.

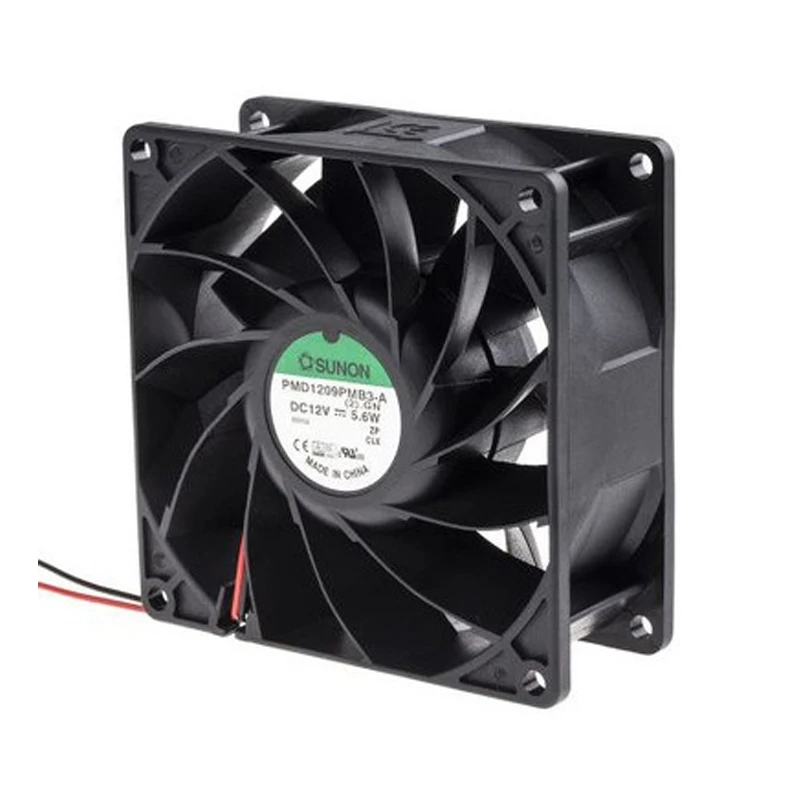

PMD1209PMB3-A | SUNON 12V 5.6W 92x92x38mm 155.8m3/h 3800rpm DC Axial Fan for Industrial Cooling
