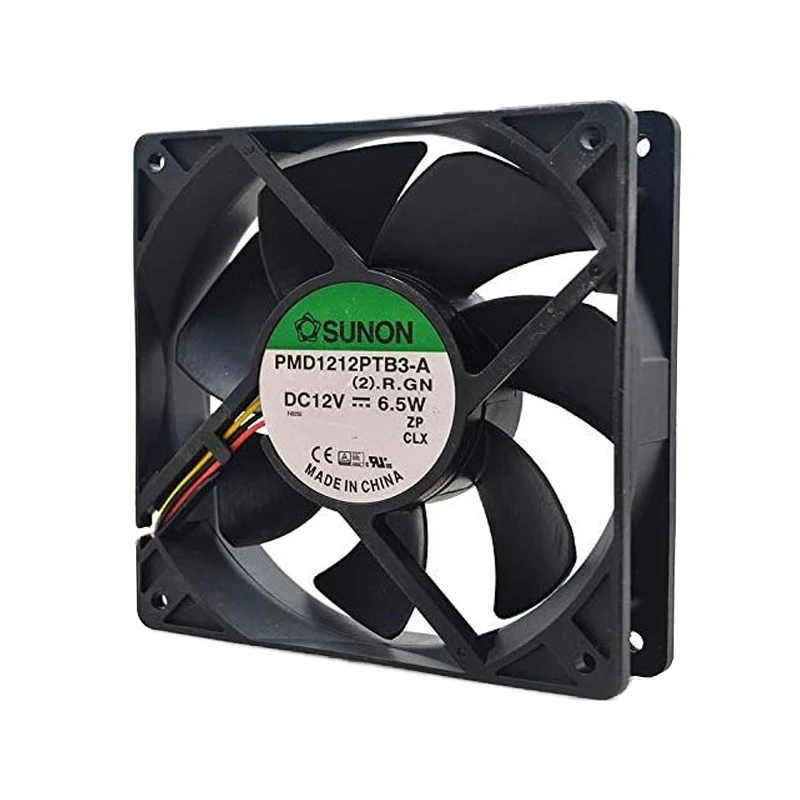

PMD1212PTB3-A SUNON Axial Fan

Brand :: SUNON

Model:: PMD1212PTB3-A | SUNON 12V 6.5W 120x120x25mm 203.9m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: A 120 × 120 × 25 mm frame and 12 VDC rating define PMD1212PTB3-A, a DC axial fan for industrial electronics and equipment cooling. Up to 203.9 m³/h is its most prominent listed performance figure. Review its system interface during engineering comparison. Confirm temperature and service-life limits from current data.

Datasheet:: PMD1212PTB3-A | SUNON 12V 6.5W 120x120x25mm 203.9m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	120x120x25mm
Max.Air Flow(m³/h)	203.9
Max.Pressure(Pa)	102.1
Input Power(W)	6.5
Speed(rpm)	3600
Noise(db)	48

Product Features

High Airflow Cooling

SUNON PMD1212PTB3-A is a DC brushless axial fan for industrial equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

For an orderly design-in process, assess vibration transfer around PMD1212PTB3-A and perform system-resistance review before volume production. The result is a clearer cooling specification for engineering, purchasing and maintenance teams. Check how rotating forces couple into panels and sensitive assemblies.

Application Industry

Industrial Equipment

SUNON PMD1212PTB3-A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What airflow value is listed for PMD1212PTB3-A?

The worksheet lists up to 203.9 m³/h. Verify the operating point against system resistance.

What bearing information is confirmed for PMD1212PTB3-A?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

What input power is listed for PMD1212PTB3-A?

The worksheet lists 6.5 W input. Check supply capacity and operating conditions before commissioning.

What certification information is listed for PMD1212PTB3-A?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

What protection rating does PMD1212PTB3-A have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.
