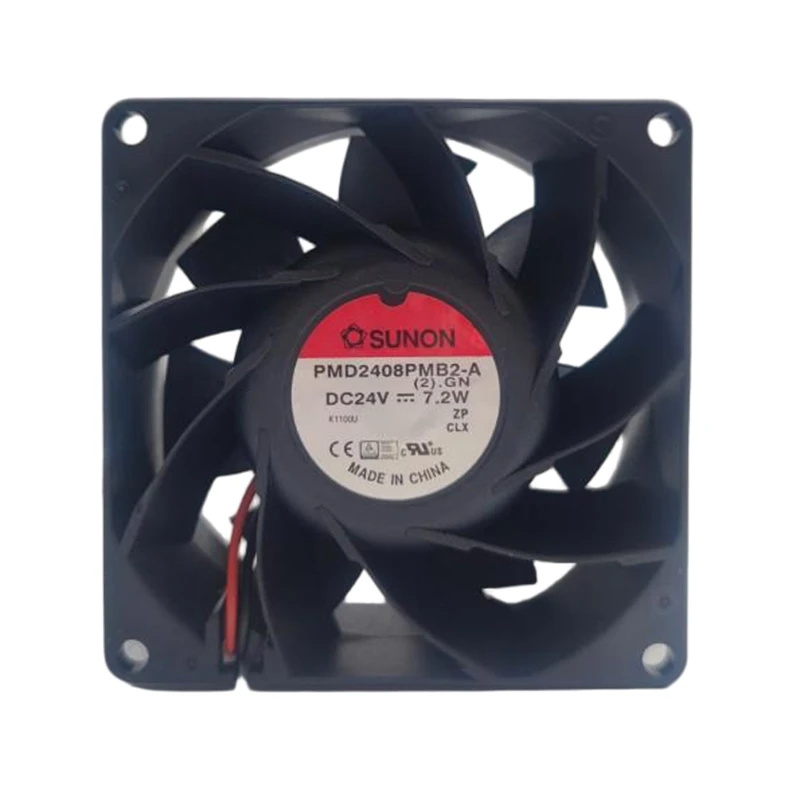

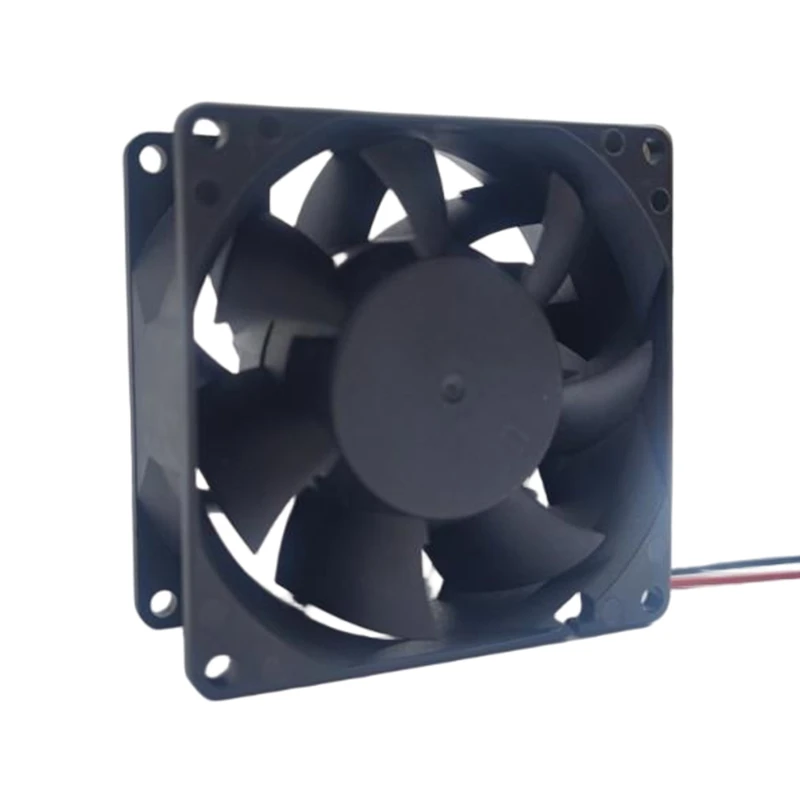

PMD2408PMB2-A.GN SUNON Axial Fan

Brand :: SUNON

Model:: PMD2408PMB2-A.GN | SUNON 24V 7.2W 80x80x38mm 126.6m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Applied in industrial electronics and equipment cooling, SUNON PMD2408PMB2-A.GN is a 24 VDC DC blower in a 80 × 80 × 38 mm frame. 142 Pa maximum pressure is the standout documented duty-point value. Use the documented power demand when planning service-life planning. Check the ordering suffix before assigning control functions.

Datasheet:: PMD2408PMB2-A.GN | SUNON 24V 7.2W 80x80x38mm 126.6m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	80x80x38mm
Max.Air Flow(m³/h)	126.6
Max.Pressure(Pa)	142
Input Power(W)	7.2
Speed(rpm)	4900
Noise(db)	51.6

Product Features

Reliable Fan Cooling

SUNON PMD2408PMB2-A.GN brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

Design approval for PMD2408PMB2-A.GN should cover cable routing together with duty-point validation within OEM validation. This creates a practical link between thermal validation, purchasing documentation and future servicing. Secure conductors away from the impeller and high-temperature components.

Application Industry

Industrial Equipment

SUNON PMD2408PMB2-A.GN serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What airflow value is listed for PMD2408PMB2-A.GN?

The worksheet lists up to 126.6 m³/h. Verify the operating point against system resistance.

What installation checks apply to PMD2408PMB2-A.GN?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define PMD2408PMB2-A.GN?

Use the listed voltage, size, 126.6 m³/h airflow, 4900 rpm, and 7.2 W input for preliminary comparison.

What certification information is listed for PMD2408PMB2-A.GN?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is PMD2408PMB2-A.GN electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.
