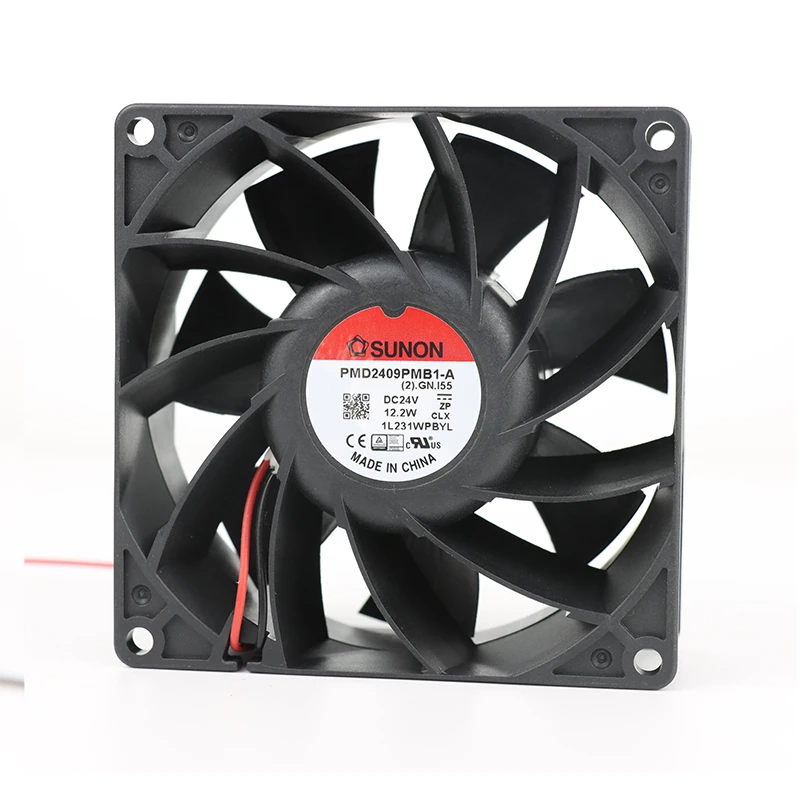

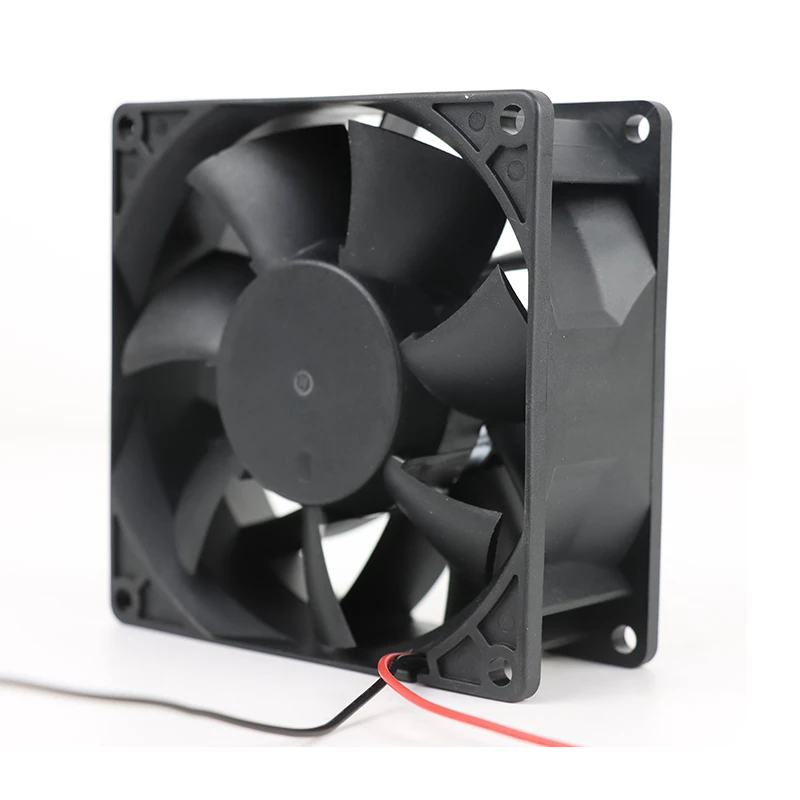

PMD2409PMB1-A (2).GN I55 SUNON Axial Fan

Brand :: SUNON

Model:: PMD2409PMB1-A (2).GN I55 | SUNON 24V 12.2W 92x92x38mm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Within industrial electronics and equipment cooling, PMD2409PMB1-A (2).GN I55 provides a 92 × 92 × 38 mm, 24 VDC DC axial fan configuration. Up to 204.2 m³/h is its most prominent listed performance figure. During acoustic assessment, compare the model's duty-point values. Match the exact part number before approving a substitute.

Datasheet:: PMD2409PMB1-A (2).GN I55 | SUNON 24V 12.2W 92x92x38mm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	204.2
Max.Pressure(Pa)	176.9
Input Power(W)	12.2
Speed(rpm)	4900
Noise(db)	57.6

Product Features

High Airflow Cooling

The PMD2409PMB1-A (2).GN I55 from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

System designers selecting PMD2409PMB1-A (2).GN I55 should account for filter loading, then schedule airflow mapping during prototype approval. This approach links equipment cooling needs with practical procurement and service decisions. Allow operating margin for dust accumulation across the selected filter.

Application Industry

Industrial Equipment

SUNON PMD2409PMB1-A (2).GN I55 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Which selection data still require confirmation for PMD2409PMB1-A (2).GN I55?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Does PMD2409PMB1-A (2).GN I55 support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

Why choose PMD2409PMB1-A (2).GN I55 over a general cooling fan?

Its documented 24 VDC rating and up to 204.2 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.

What speed is listed for PMD2409PMB1-A (2).GN I55?

The listed speed is 4900 rpm. Confirm frequency, control method, and duty point for the installed system.

What airflow value is listed for PMD2409PMB1-A (2).GN I55?

The worksheet lists up to 204.2 m³/h. Verify the operating point against system resistance.

Related Products

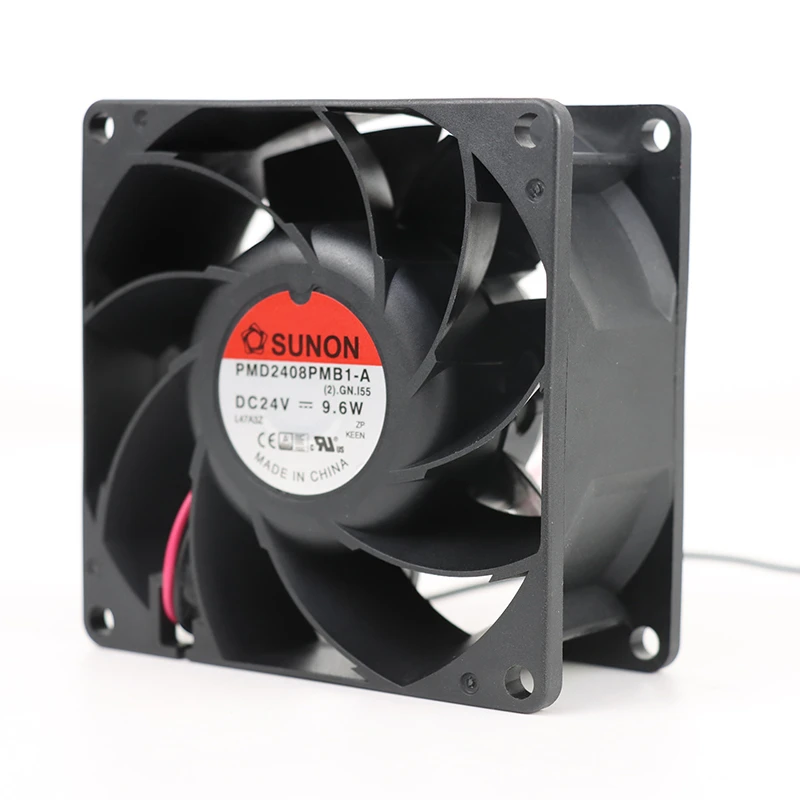

PMD2408PMB1-A (2).GN I55 | SUNON 24V 9.6W 80x80x38mm 5700rpm DC Axial Fan for Industrial Cooling

Configured for industrial electronics and equipment cooling, SUNON PMD2408PMB1-A (2).GN I55 is a 24 VDC DC blower in a 80 × 80 × 38 mm frame. 184.3 Pa maximum pressure is the standout documented duty-point value. Use the documented model record when planning acoustic assessment. Match the exact part number before approving a substitute.

PMD2409PMB1-A | SUNON 24V 12.2W 92x92x38mm 204.2m3/h 4900rpm DC Axial Fan for Industrial Cooling

SUNON PMD2409PMB1-A combines a 92 × 92 × 38 mm DC axial fan platform with a 24 VDC rating for industrial electronics and equipment cooling. Up to 204.2 m³/h is its most prominent listed performance figure. Review its cooling output during engineering comparison. Confirm temperature and service-life limits from current data.

PMD2408PMB1-A | SUNON 24V 9.6W 80x80x38mm 142.97m3/h 5700rpm DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, SUNON PMD2408PMB1-A serves as a 80 × 80 × 38 mm DC blower operating at 24 VDC. Up to 142.97 m³/h is its most prominent listed performance figure. Base engineering comparison on the stated pressure capability. Confirm temperature and service-life limits from current data.

PMD2406PMB1-A | SUNON 24V 10.3W 60x60x38mm 96m3/h 8000rpm DC Axial Fan for Industrial Cooling

PMD2406PMB1-A serves industrial electronics and equipment cooling as a 60 × 60 × 38 mm DC blower rated at 24 VDC. 229.2 Pa maximum pressure is the standout documented duty-point value. For engineering comparison, start with the supplied electrical load. Confirm temperature and service-life limits from current data.

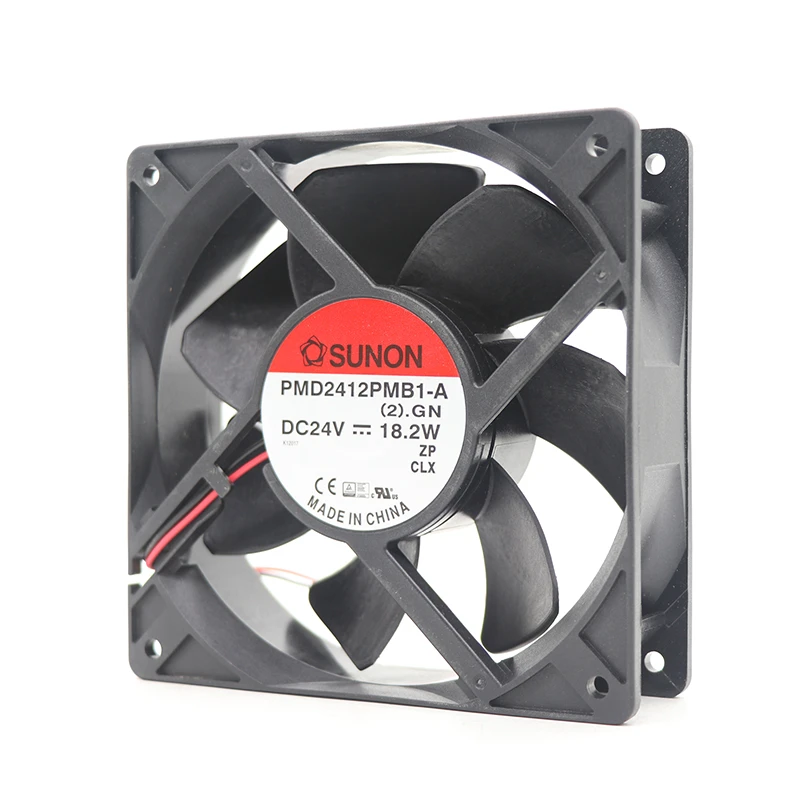

PMD2412PMB1 | SUNON 24V 18.2W 120x120x38mm 322.8m3/h 4200rpm DC Axial Fan for Industrial Cooling
