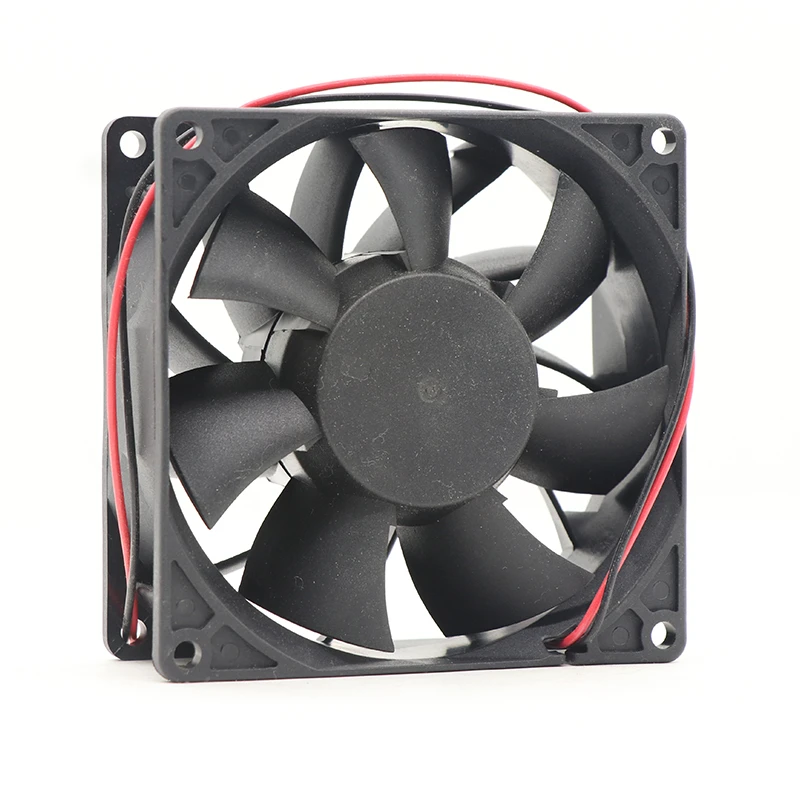

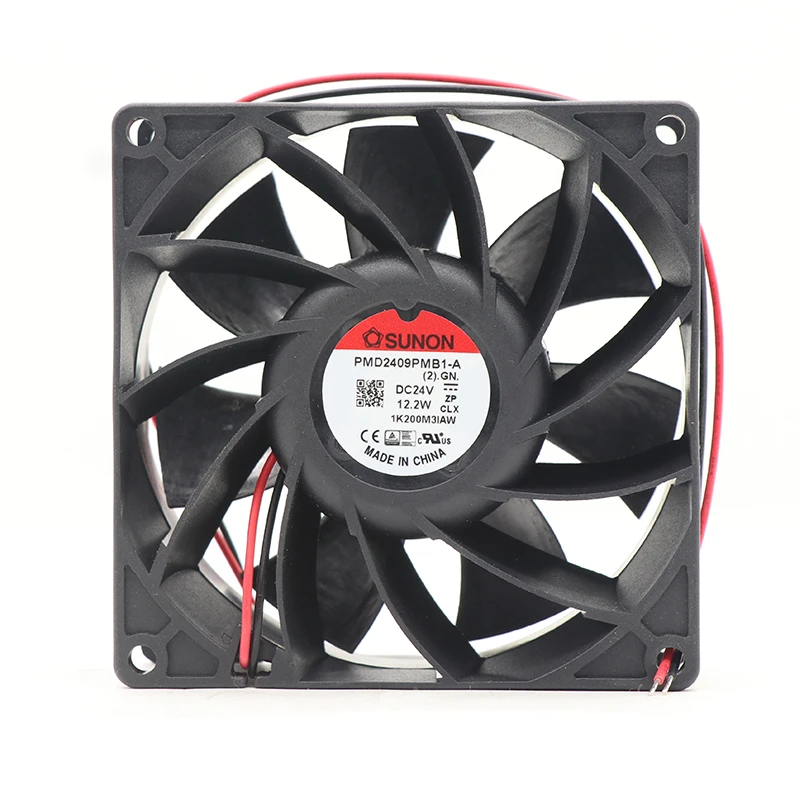

PMD2409PMB1-A.GN SUNON Axial Fan

Brand :: SUNON

Model:: PMD2409PMB1-A.GN | SUNON 24V 12.2W 92x92x38mm 204.2m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON PMD2409PMB1-A.GN combines a 92 × 92 × 38 mm DC axial fan platform with a 24 VDC rating for industrial electronics and equipment cooling. Up to 204.2 m³/h is its most prominent listed performance figure. For service-life planning, start with the supplied rotational rating. Check the ordering suffix before assigning control functions.

Datasheet:: PMD2409PMB1-A.GN | SUNON 24V 12.2W 92x92x38mm 204.2m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	204.2
Max.Pressure(Pa)	176.9
Input Power(W)	12.2
Speed(rpm)	4900
Noise(db)	57.6

Product Features

High Airflow Cooling

Equipment builders can integrate SUNON PMD2409PMB1-A.GN, a DC brushless axial fan, into industrial equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

To integrate PMD2409PMB1-A.GN effectively, review outlet geometry at equipment level and arrange duty-point validation within OEM validation. Confirmed system compatibility supports stable cooling and repeatable procurement. Record the intended operating point on the system resistance curve.

Application Industry

Industrial Equipment

SUNON PMD2409PMB1-A.GN serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What input power is listed for PMD2409PMB1-A.GN?

The worksheet lists 12.2 W input. Check supply capacity and operating conditions before commissioning.

What equipment can use PMD2409PMB1-A.GN?

It is listed for industrial electronics and equipment cooling. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

What protection rating does PMD2409PMB1-A.GN have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

Is PMD2409PMB1-A.GN compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How can PMD2409PMB1-A.GN affect operating cost?

Compare its listed 12.2 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What noise data are available for PMD2409PMB1-A.GN?

The worksheet lists 57.6 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.
