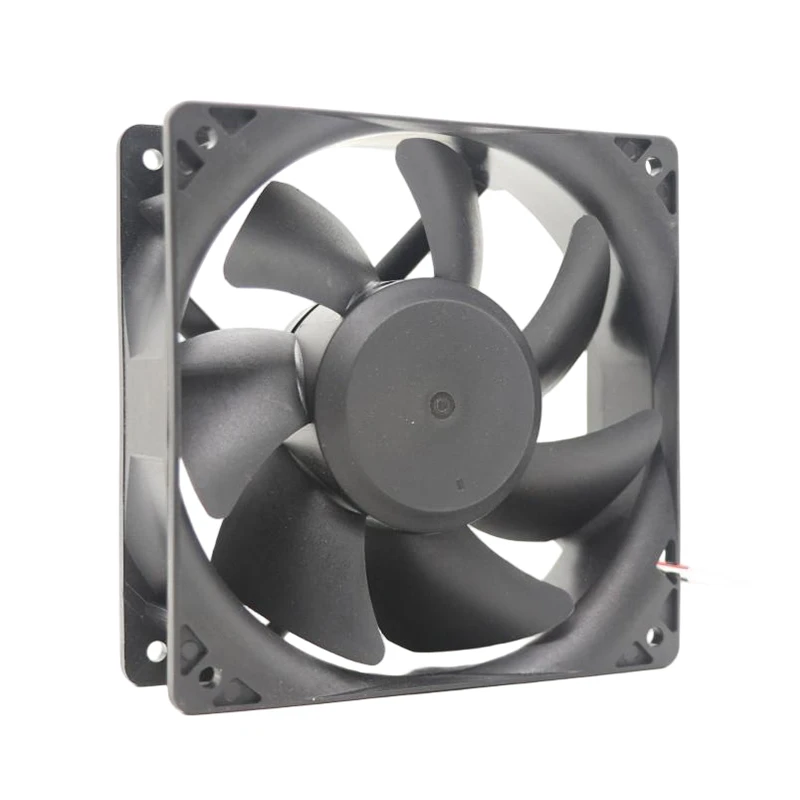

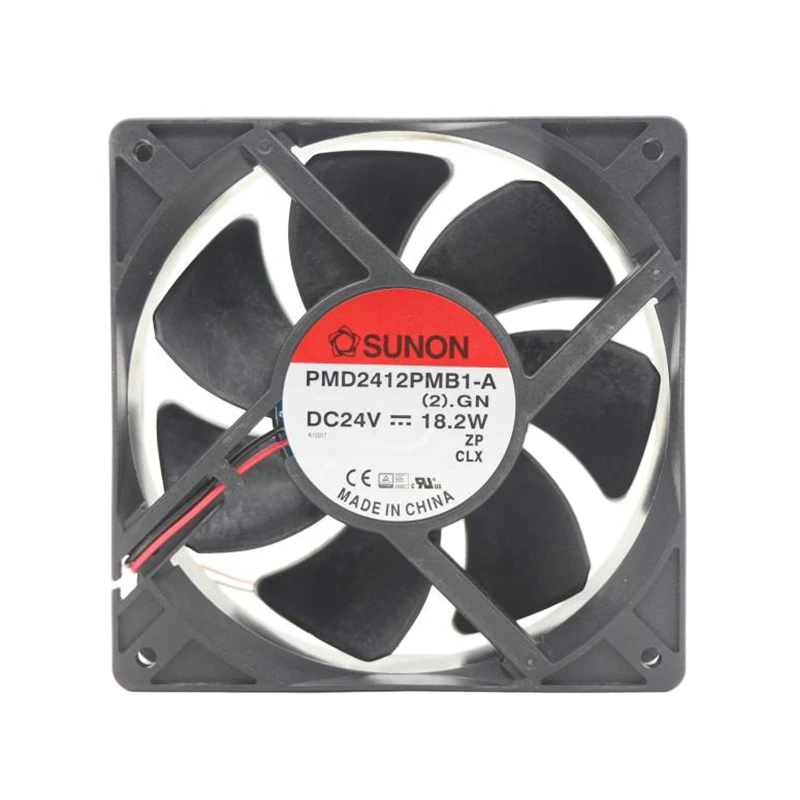

PMD2412PMB1-A.GN SUNON Axial Fan

Brand :: SUNON

Model:: PMD2412PMB1-A.GN | SUNON 24V 18.2W 120x120x38mm 322.8m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON PMD2412PMB1-A.GN is a 24 VDC DC axial fan in a 120 × 120 × 38 mm format for industrial electronics and equipment cooling. Up to 322.8 m³/h is its most prominent listed performance figure. The recorded sound level should guide service-life planning. Check the ordering suffix before assigning control functions.

Datasheet:: PMD2412PMB1-A.GN | SUNON 24V 18.2W 120x120x38mm 322.8m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x38mm
Max.Air Flow(m³/h)	322.8
Max.Pressure(Pa)	161.9
Input Power(W)	18.2
Speed(rpm)	4200
Noise(db)	54

Product Features

High Airflow Cooling

The PMD2412PMB1-A.GN from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

For PMD2412PMB1-A.GN integration, prioritize inlet clearance. Include thermal-load testing in engineering approval, and confirm the full model interface within OEM validation. This supports reliable cooling and traceable purchasing. Keep the intake free from nearby walls or bundled wiring.

Application Industry

Industrial Equipment

SUNON PMD2412PMB1-A.GN serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

How should PMD2412PMB1-A.GN be matched to an enclosure?

Review its 120 × 120 × 38 mm size, 322.8 m³/h airflow, 161.9 Pa pressure, system resistance, and available mounting space.

Can PMD2412PMB1-A.GN serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

What protection rating does PMD2412PMB1-A.GN have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

What maintenance is recommended for PMD2412PMB1-A.GN?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose PMD2412PMB1-A.GN over a general cooling fan?

Its documented 24 VDC rating and up to 322.8 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.
