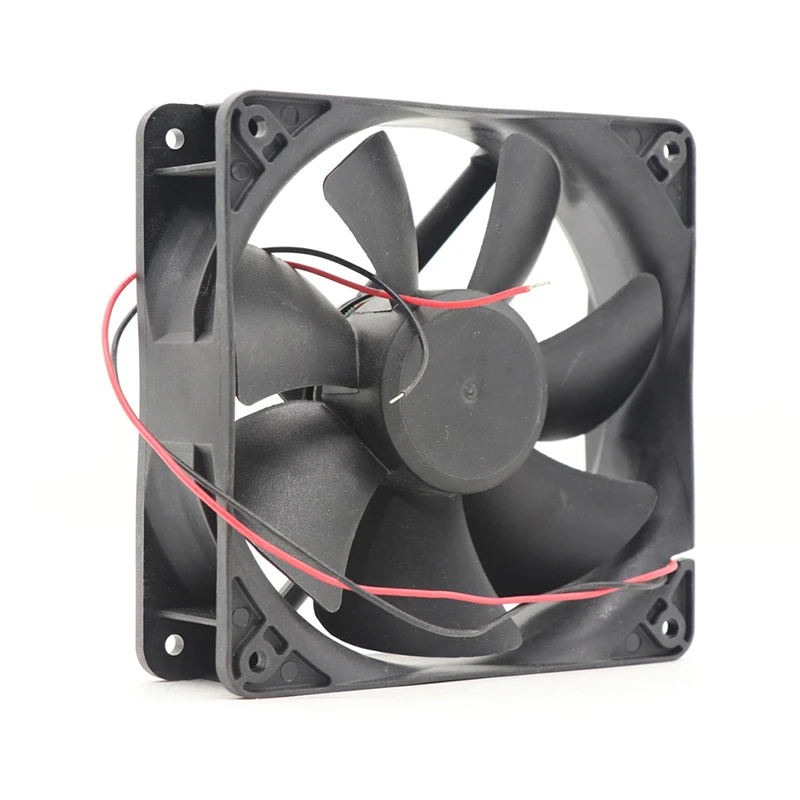

PMD2412PMB2-A SUNON Axial Fan

Brand :: SUNON

Model:: PMD2412PMB2-A | SUNON 24V 13.7W 120x120x38mm 288.8m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Engineered for industrial electronics and equipment cooling, SUNON PMD2412PMB2-A is a 24 VDC DC axial fan in a 120 × 120 × 38 mm frame. Up to 288.8 m³/h is its most prominent listed performance figure. Review its airflow profile during engineering comparison. Confirm temperature and service-life limits from current data.

Datasheet:: PMD2412PMB2-A | SUNON 24V 13.7W 120x120x38mm 288.8m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x38mm
Max.Air Flow(m³/h)	288.8
Max.Pressure(Pa)	134.5
Input Power(W)	13.7
Speed(rpm)	3800
Noise(db)	51

Product Features

High Airflow Cooling

SUNON PMD2412PMB2-A brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

A documented free-air delivery of up to 288.8 m3/h supports heat-removal planning. Filters, guards and restricted passages must be included when selecting the real duty point. The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling.

For PMD2412PMB2-A integration, prioritize inlet clearance. Include replacement-fit checks in engineering approval, and confirm the full model interface before volume production. This supports reliable cooling and traceable purchasing. Keep the intake free from nearby walls or bundled wiring.

Application Industry

Industrial Equipment

SUNON PMD2412PMB2-A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

How can PMD2412PMB2-A affect operating cost?

Compare its listed 13.7 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What speed is listed for PMD2412PMB2-A?

The listed speed is 3800 rpm. Confirm frequency, control method, and duty point for the installed system.

What airflow value is listed for PMD2412PMB2-A?

The worksheet lists up to 288.8 m³/h. Verify the operating point against system resistance.

Does PMD2412PMB2-A have a documented pressure rating?

Yes. The worksheet lists up to 134.5 Pa; compare it with the system curve.

What input power is listed for PMD2412PMB2-A?

The worksheet lists 13.7 W input. Check supply capacity and operating conditions before commissioning.

Related Products

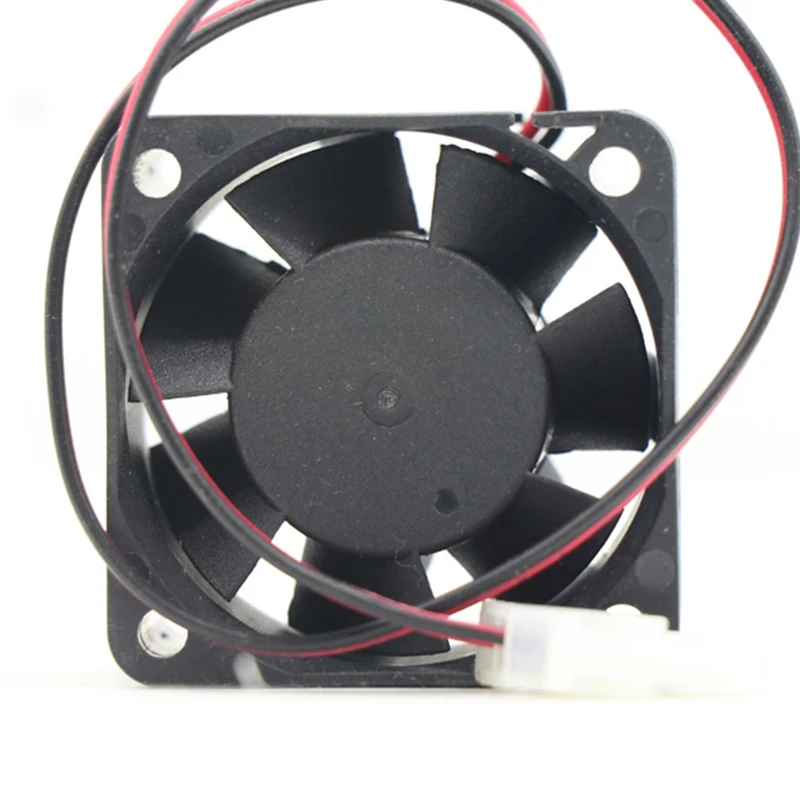

PMD2404PBB2-A | SUNON 24V 6W 40x40x28mm 7300rpm DC Axial Fan for Industrial Cooling

The PMD2404PBB2-A is SUNON's 24 VDC, 40 × 40 × 28 mm DC blower option for industrial electronics and equipment cooling. 7300 rpm is the model's most distinctive operating parameter. For engineering comparison, start with the supplied power demand. Confirm temperature and service-life limits from current data.

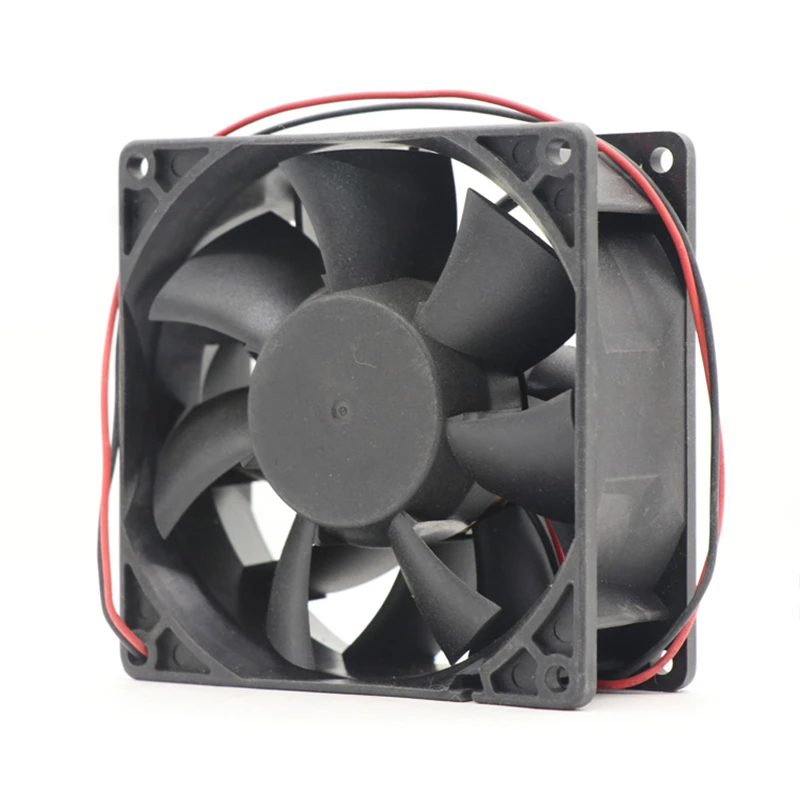

PMD2409PMB2-A | SUNON 24V 9.6W 92x92x38mm 180.6m3/h 4400rpm DC Axial Fan for Industrial Cooling

Configured for industrial electronics and equipment cooling, SUNON PMD2409PMB2-A is a 24 VDC DC axial fan in a 92 × 92 × 38 mm frame. Up to 180.6 m³/h is its most prominent listed performance figure. Treat the operating point as a primary input to engineering comparison. Confirm temperature and service-life limits from current data.

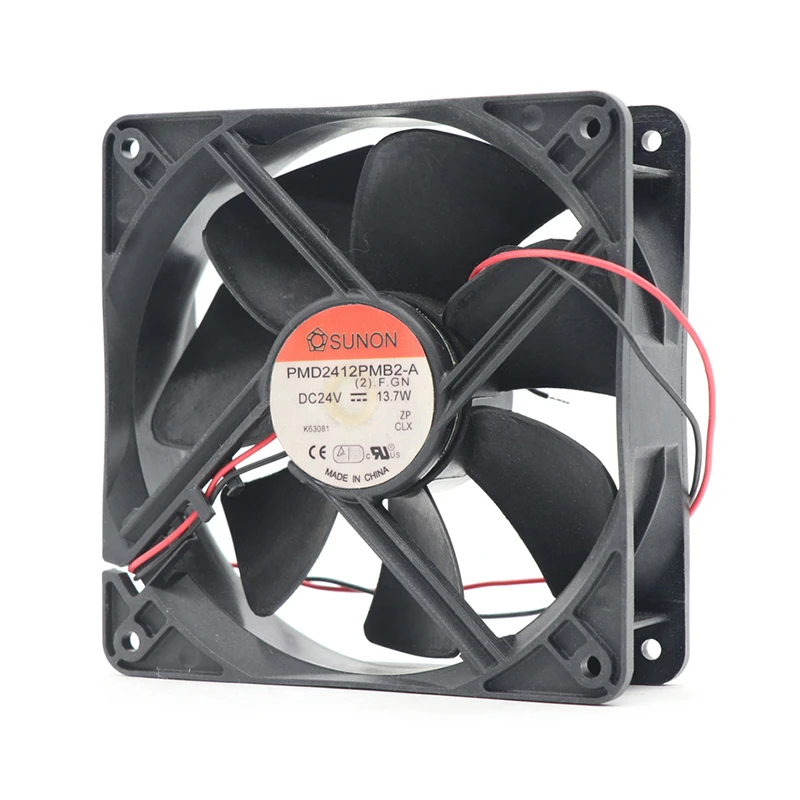

PMD2412PMB2-A(2).GN | SUNON 24V 13.7W 120x120x38mm 288.8m3/h DC Axial Fan for Industrial Cooling
