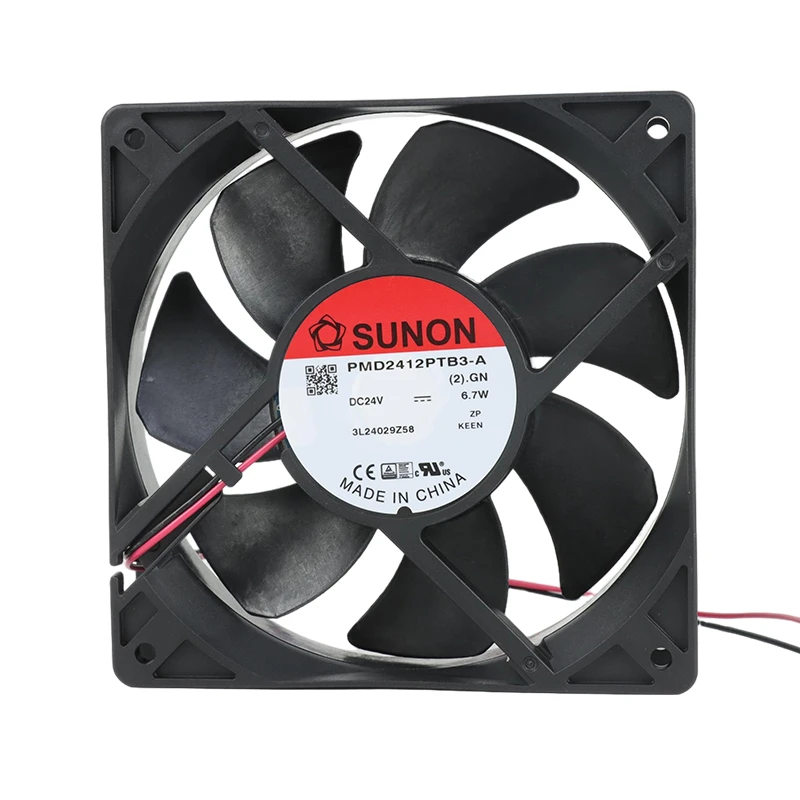

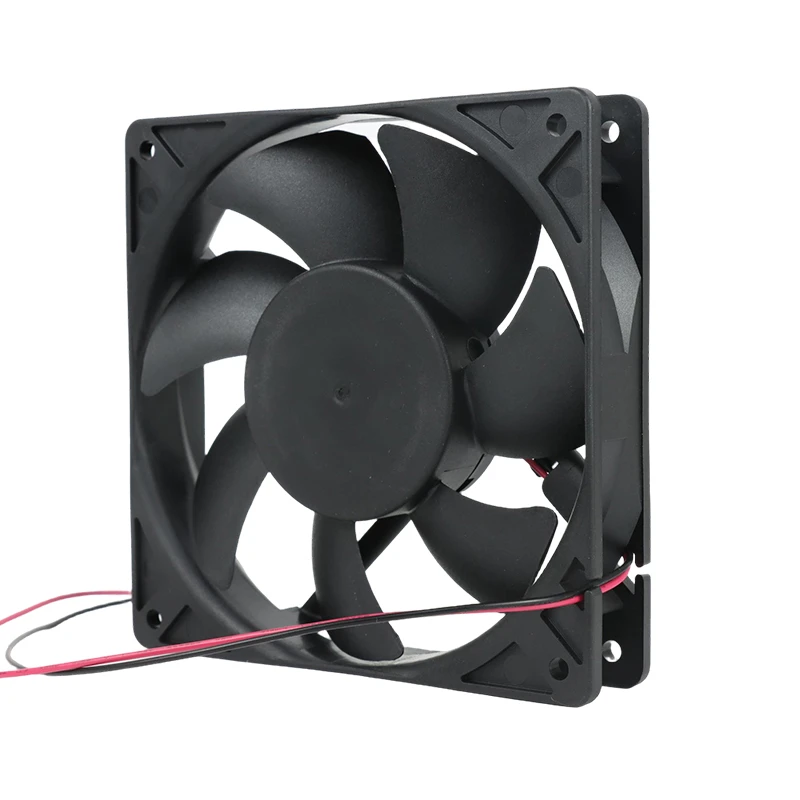

PMD2412PTB3-A (2).GN SUNON Axial Fan

Brand :: SUNON

Model:: PMD2412PTB3-A (2).GN | SUNON 24V 6.7W 120x120x25mm 120m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sized for industrial electronics and equipment cooling, SUNON PMD2412PTB3-A (2).GN is a 24 VDC DC axial fan in a 120 × 120 × 25 mm frame. Up to 120 m³/h is its most prominent listed performance figure. During power-budget planning, compare the model's acoustic value. Confirm control inputs against the complete ordering code.

Datasheet:: PMD2412PTB3-A (2).GN | SUNON 24V 6.7W 120x120x25mm 120m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012025
Max.Air Flow(m³/h)	120
Input Power(W)	6.7
Speed(rpm)	3600
Noise(db)	48

Product Features

Reliable Fan Cooling

The PMD2412PTB3-A (2).GN from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Matching the fan curve to the finished airflow path supports efficient cooling without unnecessary speed or power consumption.

PMD2412PTB3-A (2).GN is best integrated with attention to grille resistance. Engineering teams can use system-resistance review before release to verify thermal suitability and give buyers an auditable selection basis. Account for the pressure loss introduced by guards and protective screens.

Application Industry

Industrial Equipment

SUNON PMD2412PTB3-A (2).GN serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Which performance figures define PMD2412PTB3-A (2).GN?

Use the listed voltage, size, 120 m³/h airflow, 3600 rpm, and 6.7 W input for preliminary comparison.

Can PMD2412PTB3-A (2).GN serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

How is PMD2412PTB3-A (2).GN electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Does PMD2412PTB3-A (2).GN support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

Why choose PMD2412PTB3-A (2).GN over a general cooling fan?

Its documented 24 VDC rating and up to 120 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.
