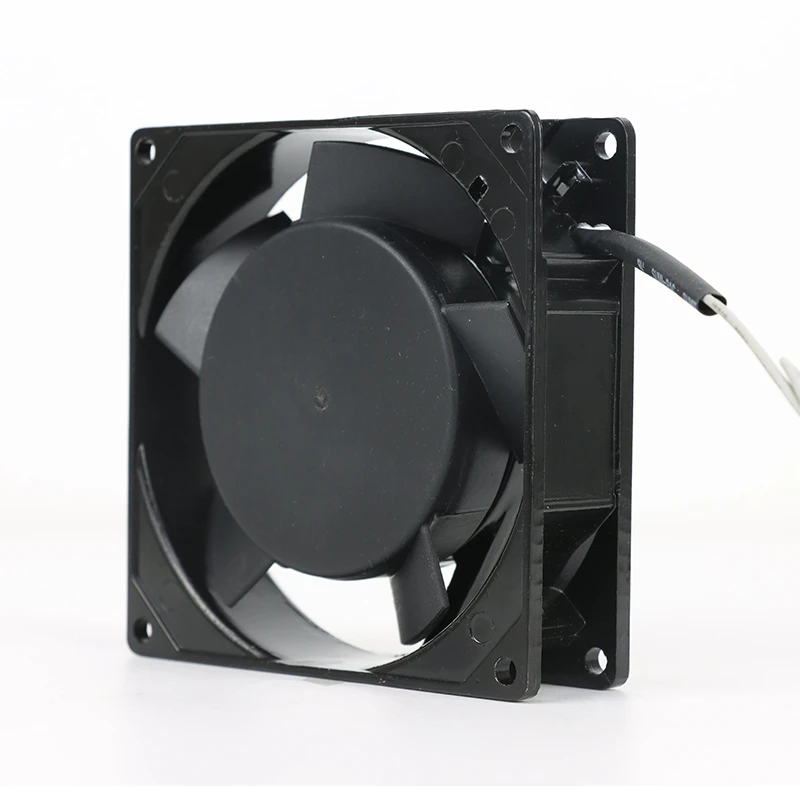

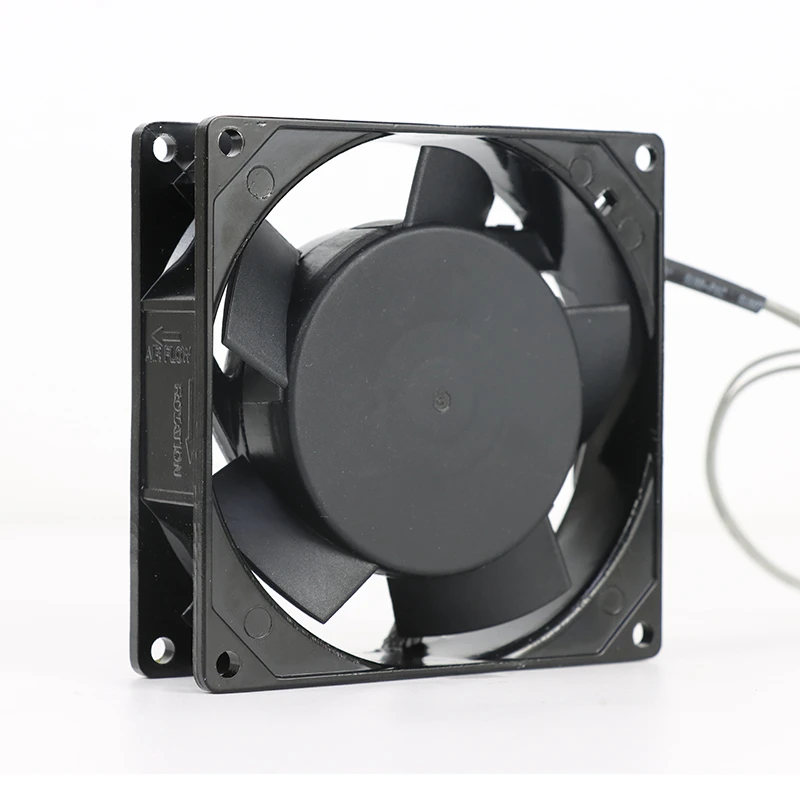

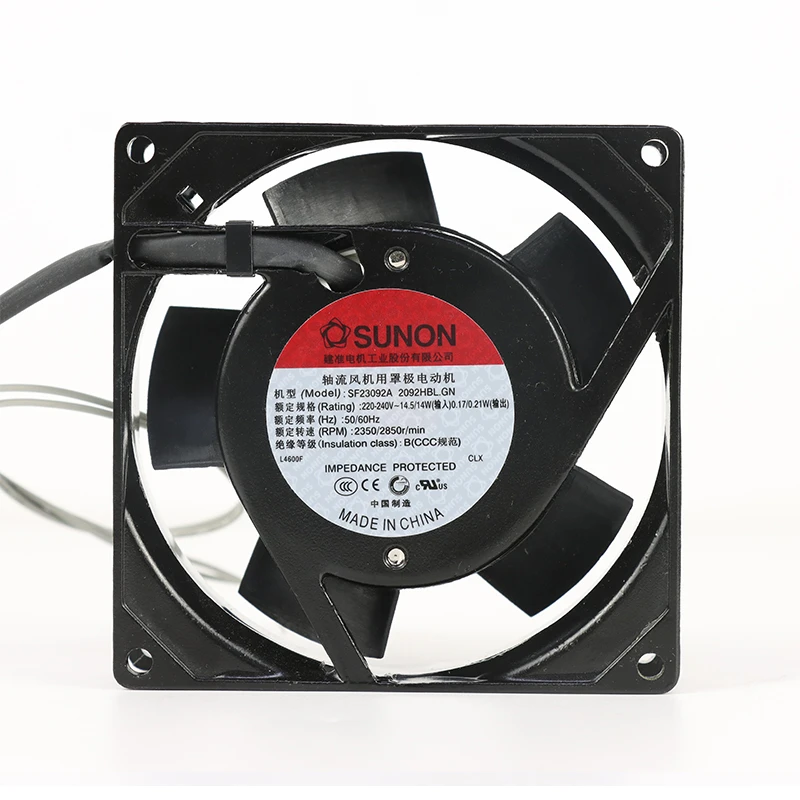

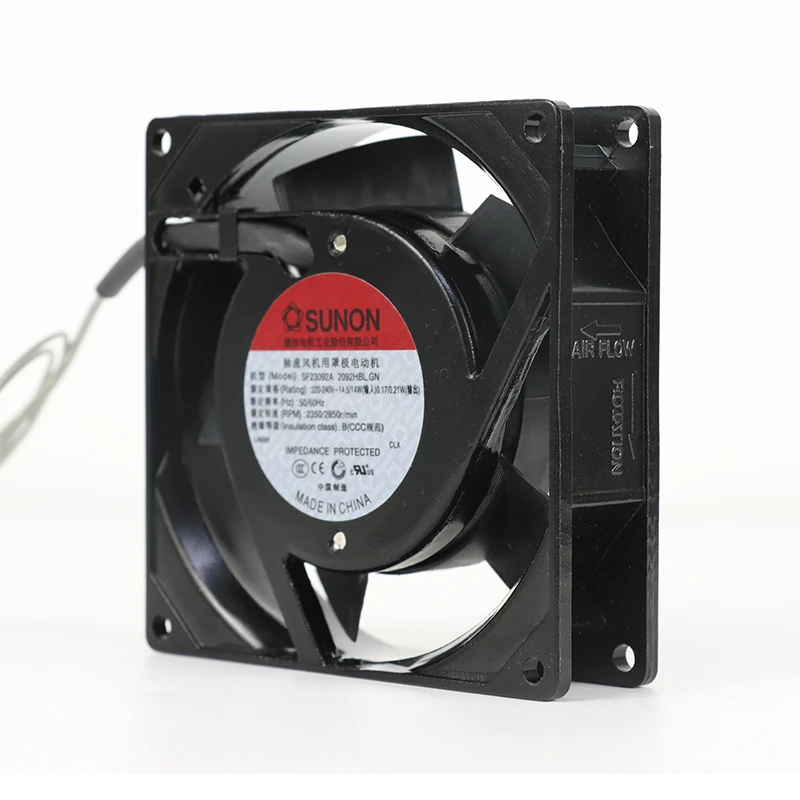

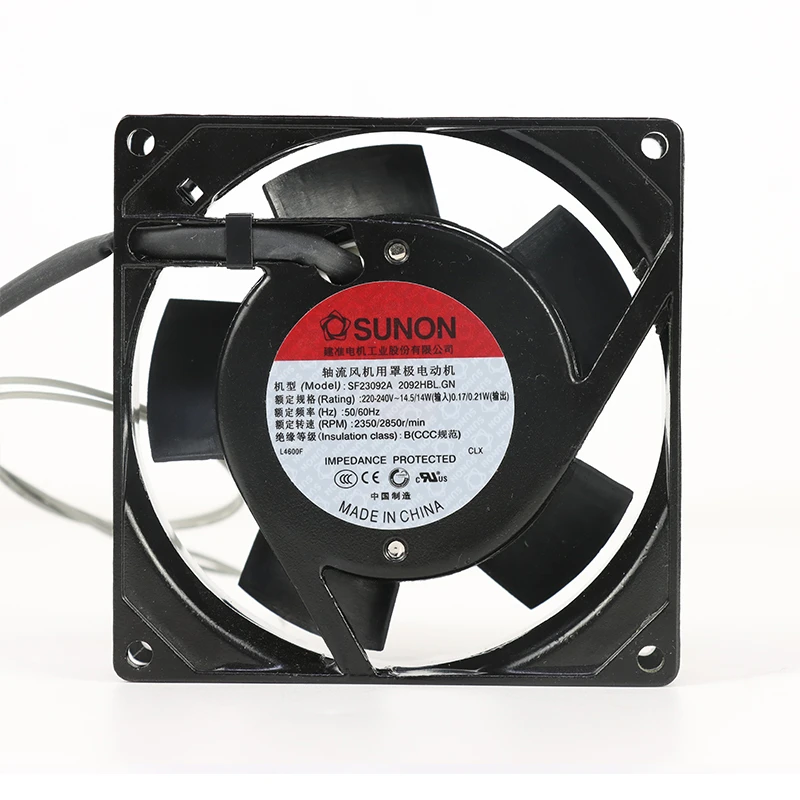

SF23092A-2092HBL.GN SUNON Axial Fan

Brand :: SUNON

Model:: SF23092A-2092HBL.GN | SUNON 240V 14W Square-91.5Lx91.5Hmm AC Axial Fan for HVAC & Ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: The SF23092A-2092HBL.GN is SUNON's 240 VAC, Square - 91.5mm L × 91.5mm H mm AC axial fan option for commercial refrigeration and refrigerator cooling. Its 2850 rpm rating defines a lower-speed operating point. Review its model record during project documentation. Reconcile the model code with the required electrical interface.

Datasheet:: SF23092A-2092HBL.GN | SUNON 240V 14W Square-91.5Lx91.5Hmm AC Axial Fan for HVAC & Ventilation Datasheet (Pdf)

Product Features

Rated Voltage(V)	240
Size(mm)	Square - 91.5mm L x 91.5mm H
Max.Air Flow(m³/h)	62.4
Max.Pressure(Pa)	47.3
Input Power(W)	14
Speed(rpm)	2850
Noise(db)	40

Product Features

Reliable Fan Cooling

For HVAC and ventilation equipment, SUNON SF23092A-2092HBL.GN serves as an AC axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number.

The final SF23092A-2092HBL.GN selection should consider connector reach as part of the installation layout. Finishing thermal-load testing for service documentation helps reduce integration uncertainty and supports reliable equipment cooling. Compare installed temperatures at representative equipment loads. The final assembly should be tested under its expected thermal load.

Application Industry

HVAC Equipment

SUNON SF23092A-2092HBL.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON SF23092A-2092HBL.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON SF23092A-2092HBL.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

Frequently Asked Questions

What should be checked if SF23092A-2092HBL.GN stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

Does SF23092A-2092HBL.GN have a documented pressure rating?

Yes. The worksheet lists up to 47.3 Pa; compare it with the system curve.

How should SF23092A-2092HBL.GN be matched to an enclosure?

Review its Square - 91.5mm L × 91.5mm H mm size, 62.4 m³/h airflow, 47.3 Pa pressure, system resistance, and available mounting space.

What equipment can use SF23092A-2092HBL.GN?

It is listed for commercial refrigeration and refrigerator cooling. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

What protection rating does SF23092A-2092HBL.GN have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

Does SF23092A-2092HBL.GN support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.
