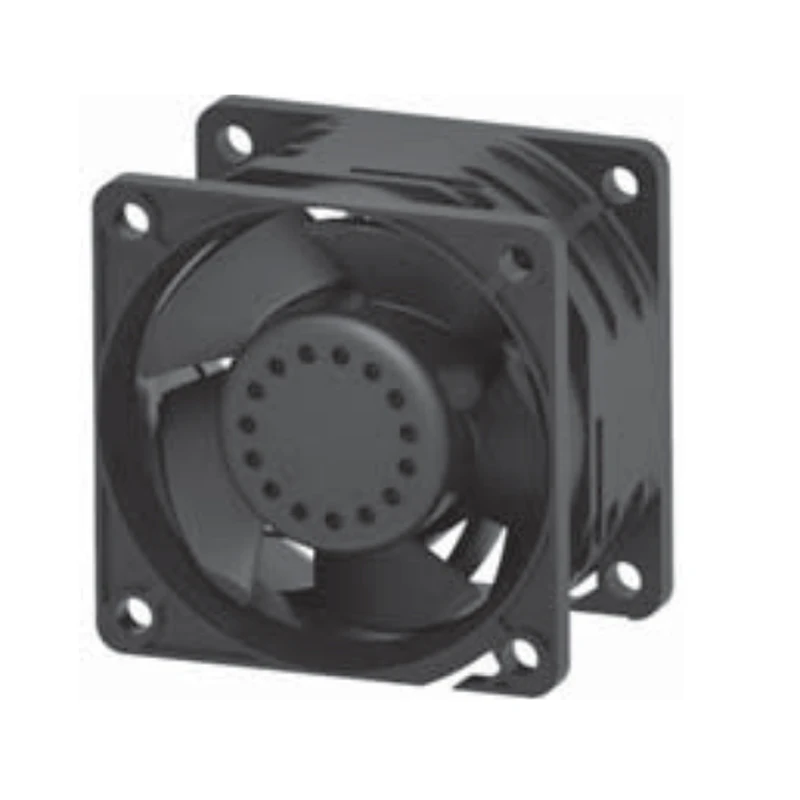

VF60381BX-Q08U-Q9I SUNON Axial Fan

Brand :: SUNON

Model:: VF60381BX-Q08U-Q9I | SUNON 12V 22.8W 60x60x38mm 115.2m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: VF60381BX-Q08U-Q9I serves servers and data-center electronics as a 60 × 60 × 38 mm DC axial fan rated at 12 VDC. 1205.6 Pa maximum pressure is the standout documented duty-point value. During project documentation, compare the model's static-pressure entry. Reconcile the model code with the required electrical interface.

Datasheet:: VF60381BX-Q08U-Q9I | SUNON 12V 22.8W 60x60x38mm 115.2m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	60x60x38mm
Max.Air Flow(m³/h)	115.2
Max.Pressure(Pa)	1205.6
Input Power(W)	22.8
Speed(rpm)	22800
Noise(db)	64.1

Product Features

Reliable Fan Cooling

The SUNON VF60381BX-Q08U-Q9I positions a DC brushless axial fan for industrial equipment. Its airflow path supports heat removal from enclosed components and toward the equipment exhaust.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. The enclosure should direct air across the heat source because bypass flow can reduce cooling even when the fan runs normally.

Before adopting VF60381BX-Q08U-Q9I, engineers should evaluate mounting rigidity. Carry out duty-point validation for service documentation so the chosen fan can be released with clear installation and sourcing requirements. Use a firm support surface to limit movement at the fan frame.

Application Industry

Industrial Equipment

SUNON VF60381BX-Q08U-Q9I serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

How should VF60381BX-Q08U-Q9I be matched to an enclosure?

Review its 60 × 60 × 38 mm size, 115.2 m³/h airflow, 1205.6 Pa pressure, system resistance, and available mounting space.

What certification information is listed for VF60381BX-Q08U-Q9I?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is VF60381BX-Q08U-Q9I electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for VF60381BX-Q08U-Q9I?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose VF60381BX-Q08U-Q9I over a general cooling fan?

Its documented 12 VDC rating and 1205.6 pa maximum pressure is the standout documented duty-point value. allow comparison with the required duty point without assuming unlisted options.
