VG80861BX-1Q07C-S9H SUNON Axial Fan

Brand :: SUNON

Model:: VG80861BX-1Q07C-S9H | SUNON 12V 156W 80x80x86mm 202.5m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Within servers and data-center electronics, VG80861BX-1Q07C-S9H provides a 80 × 80 × 86 mm, 12 VDC DC blower configuration. 156 W input is the defining electrical load in the supplied data. The recorded dimensional envelope should guide system commissioning. Verify bearing and signal options in the exact datasheet.

Datasheet:: VG80861BX-1Q07C-S9H | SUNON 12V 156W 80x80x86mm 202.5m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	80x80x86
Max.Air Flow(m³/h)	202.5
Max.Pressure(Pa)	10.18
Input Power(W)	156
Speed(rpm)	17500/15200
Noise(db)	TBD

Product Features

High Airflow Cooling

SUNON VG80861BX-1Q07C-S9H brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. System resistance, grille geometry and cable clearance should be reviewed together to maintain predictable air delivery.

System designers selecting VG80861BX-1Q07C-S9H should account for filter loading, then schedule wiring verification for service documentation. This approach links equipment cooling needs with practical procurement and service decisions. Allow operating margin for dust accumulation across the selected filter.

Application Industry

Industrial Equipment

SUNON VG80861BX-1Q07C-S9H serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What certification information is listed for VG80861BX-1Q07C-S9H?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is VG80861BX-1Q07C-S9H electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for VG80861BX-1Q07C-S9H?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

How can VG80861BX-1Q07C-S9H affect operating cost?

Compare its listed 156 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What noise data are available for VG80861BX-1Q07C-S9H?

The worksheet lists TBD dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

Related Products

VG80381BX-1Q010-S9H | SUNON 12V 57.6W 80x80x38mm 148.6m3/h DC Axial Fan for Industrial Cooling

The VG80381BX-1Q010-S9H is SUNON's 12 VDC, 80 × 80 × 38 mm DC blower option for servers and data-center electronics. 18300 rpm is the model's most distinctive operating parameter. Treat the volume-flow figure as a primary input to technical purchasing. Request the exact performance curve for final engineering signoff.

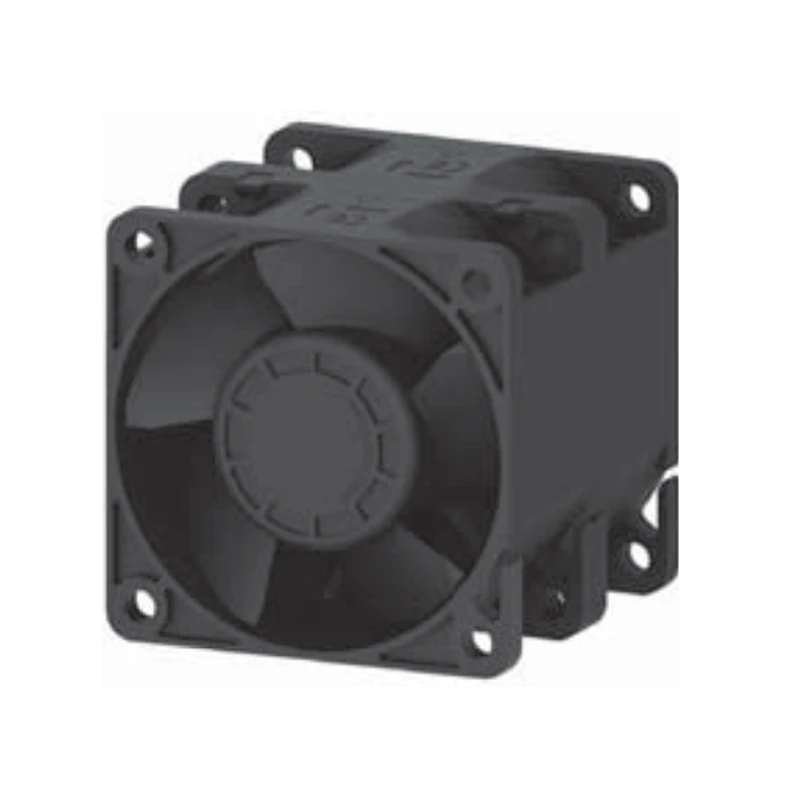

VG60561BX-1Q010-S9H | SUNON 12V 61.2W 60x60x56mm 82.64m3/h DC Axial Fan for Data Center Cooling
