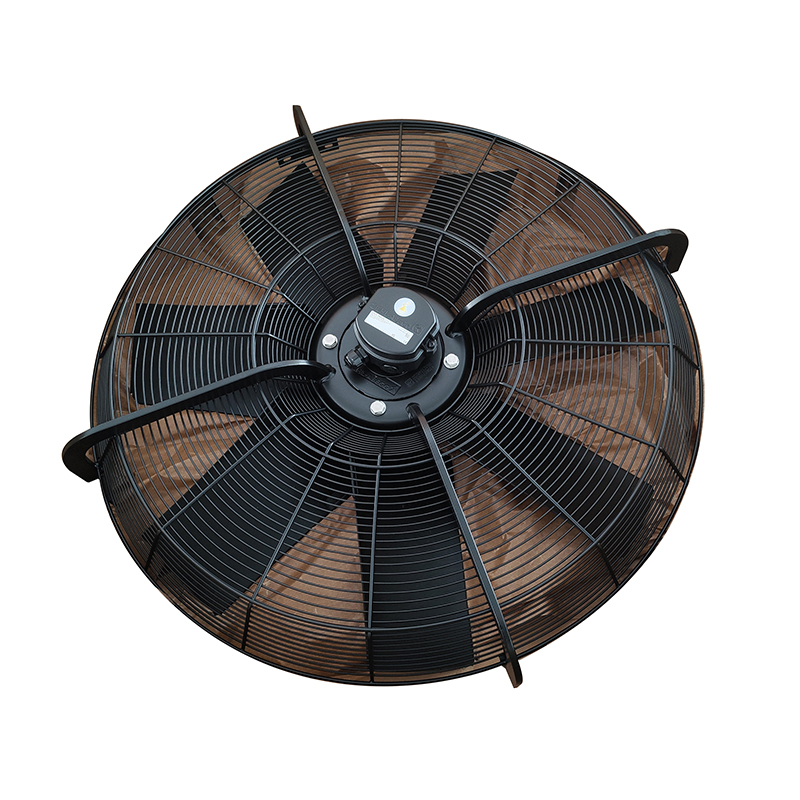

FC091-SDS.7Q.V5 169968 ZIEHL-ABEGG Axial Fan

Brand :: ZIEHL-ABEGG

Model:: FC091-SDS.7Q.V5 169968 | ZIEHL-ABEGG 400VAC 3800W AC Axial Fan for HVAC and ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: FC091-SDS.7Q.V5 169968 is a 400 VAC axial fan for transformer cooling, air-conditioning systems, agricultural ventilation. Its main supplied feature is 280 Pa maximum pressure stated for this model. It also lists a 910 mm size specified in the upload data. Review ventilation duty for motor selection.

Product Features

Reliable Fan Design

For HVAC and ventilation systems, the ZIEHL-ABEGG FC091-SDS.7Q.V5 169968 provides a practical AC axial fan platform. Its construction is intended for repeatable installation where cooling performance affects equipment availability.

Profiled die-cast aluminum blades balance aerodynamic efficiency with mechanical strength. The axial fan is intended for use with a properly designed full inlet ring or duct, while the external-rotor drive and supported speed control help match airflow to changing equipment demand.

System qualification for FC091-SDS.7Q.V5 169968 should use the final grille, nozzle and surrounding equipment structure. This helps manufacturers preserve useful airflow, manage sound and define compatible replacements.

Application Industry

HVAC Ventilation

Stable ventilation supports predictable operation when ambient conditions and equipment demand vary. For equipment serving HVAC, outdoor air-conditioning and ventilation equipment, ZIEHL-ABEGG FC091-SDS.7Q.V5 169968 maintains planned air exchange through air-handling and outdoor HVAC equipment.

Refrigeration Systems

Commercial and industrial refrigeration systems use FC091-SDS.7Q.V5 169968 where the AC axial fan supports condenser and equipment ventilation in refrigeration systems. A repeatable airflow path lets OEM engineers manage heat without enlarging the complete equipment package.

Agricultural Ventilation

Thermal consistency matters because changing loads can shift where heat collects inside the system. FC091-SDS.7Q.V5 169968 supports agricultural buildings, livestock and aquaculture ventilation. In this duty, it moves stale or warm air away from animal and production areas.

Transformer Cooling

Used within power transformers and electrical conversion equipment, FC091-SDS.7Q.V5 169968 drives cooling air across transformer surfaces and associated electrical parts. This application gives designers a practical route to balance cooling demand, space and maintainability.

Frequently Asked Questions

What protection information is available for FC091-SDS.7Q.V5 169968?

No exact IP protection level is stated for this item in the supplied sources. Confirm it before use in dusty, wet, or harsh locations.

Does FC091-SDS.7Q.V5 169968 support speed control?

Speed-control support is not stated for this exact item in the supplied sources. Confirm the motor and controller version before specifying control hardware.

How stable is the lead time for FC091-SDS.7Q.V5 169968?

No guaranteed lead time is provided in the supplied sources. Confirm current stock, required quantity, production schedule, and shipping date with the supplier.

Which performance values should I compare for FC091-SDS.7Q.V5 169968?

The supplied row lists 32000 m³/h airflow, 280 Pa pressure, 3800 W input, 890 rpm. Compare these values with the real system operating point, not only the free-air rating.

How should I select between FC091-SDS.7Q.V5 169968 and a nearby model?

Compare the full model suffix, voltage, size, motor or controller type, mounting, airflow, pressure, power, speed, and protection; do not copy data from a similar model.

What airflow or pressure data is supplied for FC091-SDS.7Q.V5 169968?

Available performance data includes 32000 m³/h airflow, 280 Pa pressure, 3800 W input, 890 rpm. Obtain the full curve when system resistance or part-load behavior matters.
