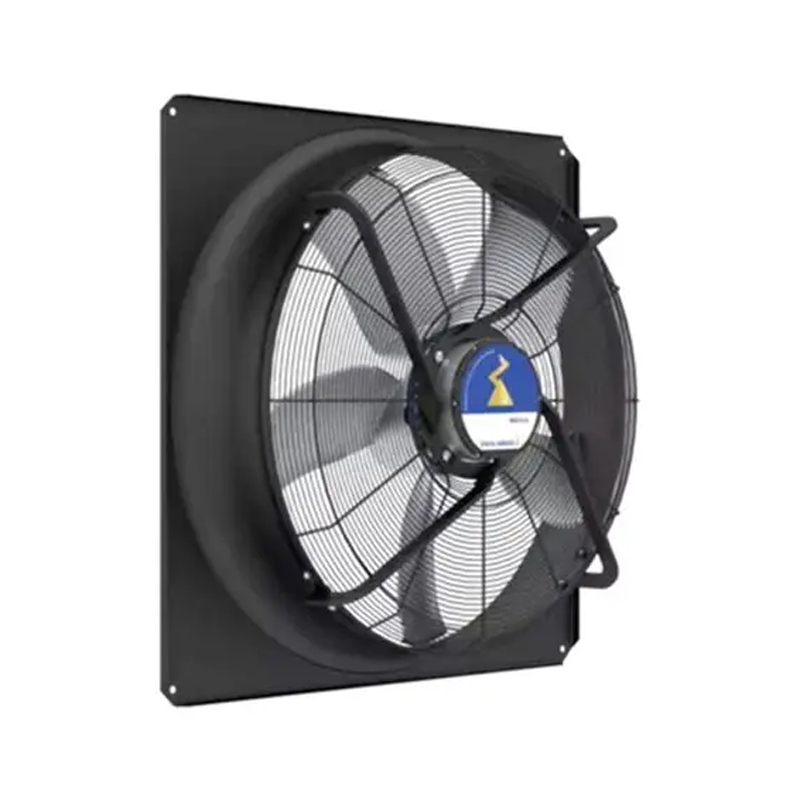

FN091-ZIQ.GL.V5P1 180713 ZIEHL-ABEGG Axial Fan

Brand :: ZIEHL-ABEGG

Model:: FN091-ZIQ.GL.V5P1 180713 | ZIEHL-ABEGG 3~380-480VAC 3200W EC Axial Fan for renewable energy

Type:: Axial Fans

Industry:: New Energy

Description:: FN091-ZIQ.GL.V5P1 180713 is a 3~380-480 VAC axial fan for chillers, cold-chain equipment, industrial refrigeration. Its main supplied feature is bionic blade geometry developed for efficient, low-noise airflow. It also lists a 5-blade impeller identified for this model. Review acoustic limit for system integration.

Product Features

Rated Voltage(V)	3~380-480
Size(mm)	910
Max.Air Flow(m³/h)	32000
Max.Pressure(Pa)	275
Input Power(W)	3200
Speed(rpm)	1100
Noise(db)	93

Product Features

Biomimetic Airflow

ZIEHL-ABEGG FN091-ZIQ.GL.V5P1 180713 brings EC axial fan performance to renewable-energy and power-conversion equipment. The product is suited to manufacturers that need controlled airflow, stable operation and a clear integration path.

A 3~380-480 VAC rating with 3200 W input helps engineers plan the electrical supply and cooling-energy budget. Biomimetic impeller geometry inspired by owl-wing aerodynamics is optimized for high efficiency and low noise. Dynamic balancing and a compact air path support low vibration, energy-conscious operation and long service life.

Selection of FN091-ZIQ.GL.V5P1 180713 should include the installed resistance, mechanical fit and available control method. Prototype testing links the fan specification to reliable cooling and practical lifecycle sourcing.

Application Industry

Renewable Energy

Regular air exchange helps the equipment handle long duty periods without trapping heat around key assemblies. Within photovoltaic, bioenergy and fuel-cell equipment, ZIEHL-ABEGG FN091-ZIQ.GL.V5P1 180713 supports steady cabinet temperatures during long operating periods.

Transformer Cooling

As part of power transformers and electrical conversion equipment, FN091-ZIQ.GL.V5P1 180713 drives cooling air across transformer surfaces and associated electrical parts. Regular air exchange helps the equipment handle long duty periods without trapping heat around key assemblies.

HVAC Ventilation

This helps manufacturers connect the specified airflow function with equipment reliability and maintainable installation. For HVAC, outdoor air-conditioning and ventilation equipment, the FN091-ZIQ.GL.V5P1 180713 EC axial fan moves conditioned or exhaust air through the intended system path.

Chiller Systems

ZIEHL-ABEGG FN091-ZIQ.GL.V5P1 180713 is specified for chillers and heat-pump systems; it keeps cooling air moving across coils when the unit operates for extended periods. A controlled air path is needed to carry heat from active parts toward the intended rejection surface.

Frequently Asked Questions

What should I check if FN091-ZIQ.GL.V5P1 180713 develops a cooling fault?

Check supply voltage, controller signals, blocked airflow, contamination, abnormal noise, rotation, and the equipment operating point before replacing the unit.

How should FN091-ZIQ.GL.V5P1 180713 be maintained?

No model-specific maintenance interval is supplied. Keep the airflow path clean, inspect mounting and electrical connections, and follow the exact product instructions.

Which performance values should I compare for FN091-ZIQ.GL.V5P1 180713?

The supplied row lists 32000 m³/h airflow, 275 Pa pressure, 3200 W input, 1100 rpm, 93 dB. Compare these values with the real system operating point, not only the free-air rating.

Can FN091-ZIQ.GL.V5P1 180713 be considered for continuous operation?

The supplied files do not establish a universal 24/7 duty rating. Validate ambient conditions, duty cycle, protection, and maintenance requirements for continuous use.

What equipment is FN091-ZIQ.GL.V5P1 180713 suited to?

The supplied application data covers chillers, cold-chain equipment, industrial refrigeration. Confirm the installation's airflow, pressure, space, and electrical requirements.

Which application details should be confirmed before ordering FN091-ZIQ.GL.V5P1 180713?

Confirm the target equipment, operating point, ambient conditions, installation space, electrical supply, controls, protection, quantity, and required delivery date.
