GR40C-ZID.GG.1R 117268/H01 ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: GR40C-ZID.GG.1R 117268/H01 | ZIEHL-ABEGG 3~380-480VAC 4100W EC Centrifugal Fan for renewable energy

Type:: Centrifugal Fans

Industry:: New Energy

Description:: GR40C-ZID.GG.1R 117268/H01 is a 3~380-480 VAC centrifugal fan for data centers, wind-power equipment. Its main supplied feature is 9200 m³/h maximum airflow stated for this model. It also lists a 400 mm size specified in the upload data. Review service access for site verification. Check the exact variant before ordering.

Product Features

Rated Voltage(V)	3~380-480
Size(mm)	400
Max.Air Flow(m³/h)	9200
Max.Pressure(Pa)	1800
Input Power(W)	4100
Speed(rpm)	2900
Noise(db)	94

Product Features

Efficient Radial Fan

Designed for renewable-energy and power-conversion equipment, GR40C-ZID.GG.1R 117268/H01 combines ZIEHL-ABEGG engineering with a EC centrifugal fan format suited to OEM integration. The design supports stable thermal management in compact equipment layouts.

A free-running backward-curved impeller supports high static-pressure capability without a conventional scroll. The aerodynamic wheel and diffuser concept are designed for efficient airflow, stable rotation and favorable acoustic behavior.

System qualification for GR40C-ZID.GG.1R 117268/H01 should use the final grille, nozzle and surrounding equipment structure. This helps manufacturers preserve useful airflow, manage sound and define compatible replacements.

Application Industry

Wind Power

Reliable circulation is important here because compact assemblies leave limited space for passive heat dissipation. For wind-power converters and turbine cooling systems, the GR40C-ZID.GG.1R 117268/H01 EC centrifugal fan removes heat from power electronics installed in wind-energy systems.

HVAC Ventilation

As part of HVAC, outdoor air-conditioning and ventilation equipment, GR40C-ZID.GG.1R 117268/H01 supports ventilation duty where filters, coils and duct resistance affect airflow. The application depends on controlled airflow to keep thermal conditions within the equipment designer's target range.

Data Center Cooling

A repeatable airflow path lets OEM engineers manage heat without enlarging the complete equipment package. In data-center cooling and dry-cooler systems, ZIEHL-ABEGG GR40C-ZID.GG.1R 117268/H01 supports heat rejection for data-center cooling and dry-cooler equipment.

Frequently Asked Questions

Which supplied feature distinguishes GR40C-ZID.GG.1R 117268/H01?

The matched source highlights 9200 m³/h maximum airflow stated for this model. Compare that point together with the listed electrical and dimensional data.

Does GR40C-ZID.GG.1R 117268/H01 require a separate controller?

The series information indicates controllability, but whether a separate controller is needed depends on the exact motor and integrated electronics.

How should I select between GR40C-ZID.GG.1R 117268/H01 and a nearby model?

Compare the full model suffix, voltage, size, motor or controller type, mounting, airflow, pressure, power, speed, and protection; do not copy data from a similar model.

What should be checked before installing GR40C-ZID.GG.1R 117268/H01?

Check electrical supply, mounting clearance, fasteners, airflow direction, guards, wiring, and access for service before installation.

Can GR40C-ZID.GG.1R 117268/H01 help reduce operating cost?

The matched series documentation highlights efficiency-related design. Calculate savings from the actual operating point, control strategy, service interval, and purchase cost.

Which certifications are documented for GR40C-ZID.GG.1R 117268/H01?

The upload row lists RoHS compliance, but no additional exact-model certification is confirmed in the supplied feature record.

Related Products

GR56C-ZID.GG.1R 117390/H01 | ZIEHL-ABEGG 3~380-480VAC 3600W EC Centrifugal Fan for renewable energy

GR56C-ZID.GG.1R 117390/H01 is a 3~380-480 VAC centrifugal fan for data centers, wind-power equipment. Its main supplied feature is a backward-curved impeller configuration. It also lists a 560 mm size specified in the upload data. Review air direction for procurement comparison. Check the exact variant before ordering.

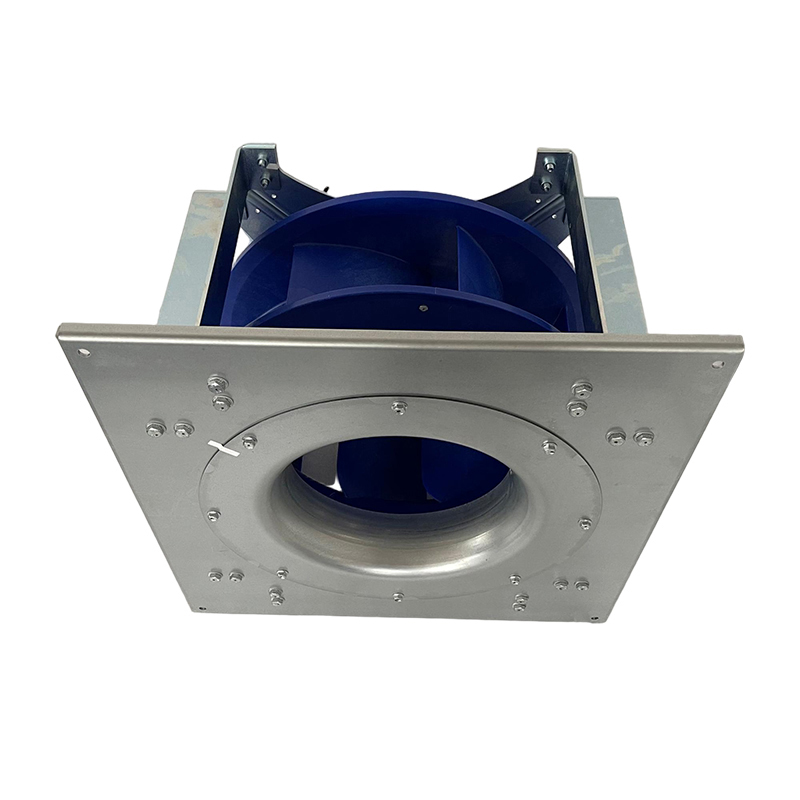

GR31C-ZID.DC.1R 116220/H01 | ZIEHL-ABEGG 3~380-480VAC 2200W EC Centrifugal Fan for renewable energy
