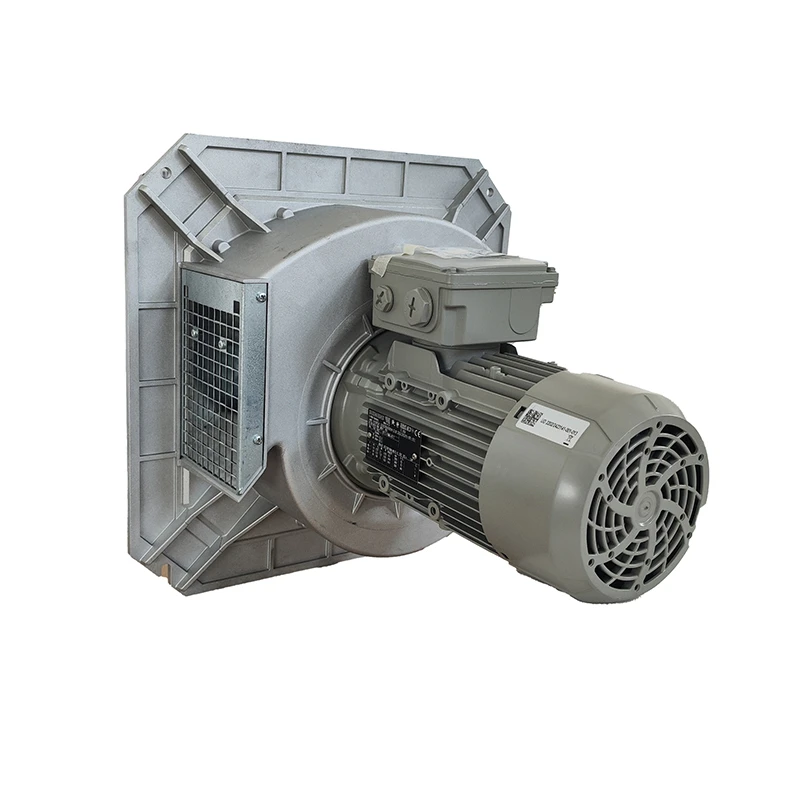

RF22P-2DN.B4.5R ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: RF22P-2DN.B4.5R | ZIEHL-ABEGG 400VAC 610W AC Centrifugal Fan for HVAC and ventilation systems

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: RF22P-2DN.B4.5R is a 400 VAC centrifugal fan for equipment cooling, air-conditioning systems. Its main supplied feature is a 220 mm size specified in the upload data. It also lists 610 W input power for the listed electrical version. Review control method for replacement review. Check the exact variant before ordering.

Product Features

Rated Voltage(V)	400
Size(mm)	220
Input Power(W)	610
Speed(rpm)	2230

Product Features

Pressure Airflow

For HVAC and ventilation systems, the ZIEHL-ABEGG RF22P-2DN.B4.5R provides a practical AC centrifugal fan platform. Its construction is intended for repeatable installation where cooling performance affects equipment availability.

A 400 VAC rating with 610 W input helps engineers plan the electrical supply and cooling-energy budget. Backward-curved impeller geometry converts motor power into focused airflow and useful static pressure. A balanced rotating assembly supports stable operation, controlled vibration and efficient cooling in restrictive equipment layouts.

Selection of RF22P-2DN.B4.5R should include the installed resistance, mechanical fit and available control method. Prototype testing links the fan specification to reliable cooling and practical lifecycle sourcing.

Application Industry

HVAC Ventilation

For OEM selection, the AC centrifugal fan gives engineers a defined component for prototype validation and series sourcing. Within HVAC, outdoor air-conditioning and ventilation equipment, ZIEHL-ABEGG RF22P-2DN.B4.5R maintains planned air exchange through air-handling and outdoor HVAC equipment.

Frequently Asked Questions

Is RF22P-2DN.B4.5R suitable for a high-reliability cooling system?

It may be evaluated for high-reliability cooling using the supplied parameters, but duty cycle, redundancy, ambient limits, and protection must be confirmed at system level.

What equipment is RF22P-2DN.B4.5R suited to?

The supplied application data covers equipment cooling, air-conditioning systems. Confirm the installation's airflow, pressure, space, and electrical requirements.

How do I confirm RF22P-2DN.B4.5R is compatible with my equipment?

Match the complete model code, voltage, dimensions, mounting arrangement, airflow direction, performance point, and control interface to the equipment.

What type of fan or control product is RF22P-2DN.B4.5R?

The product is classified as a centrifugal fan. Use the full model code because nearby variants can differ in motor, mounting, and controls.

What protection information is available for RF22P-2DN.B4.5R?

No exact IP protection level is stated for this item in the supplied sources. Confirm it before use in dusty, wet, or harsh locations.

What should I check if RF22P-2DN.B4.5R develops a cooling fault?

Check supply voltage, controller signals, blocked airflow, contamination, abnormal noise, rotation, and the equipment operating point before replacing the unit.
