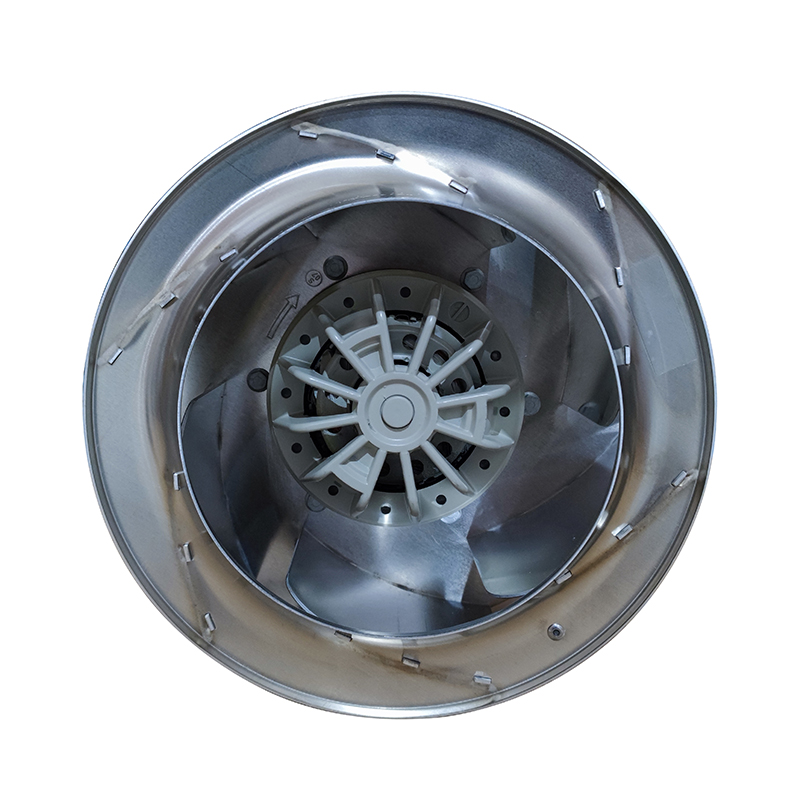

RH28M-2DK.3I.2R 172141 ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: RH28M-2DK.3I.2R 172141 | ZIEHL-ABEGG 3~230/400VAC 520W AC Centrifugal Fan for HVAC and ventilation

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: RH28M-2DK.3I.2R 172141 is a 3~230/400 VAC centrifugal fan for air-conditioning systems. Its main supplied feature is 2400 m³/h maximum airflow stated for this model. It also lists a 280 mm size specified in the upload data. Review performance curve for replacement review. Check the exact variant before ordering.

Product Features

Efficient Radial Fan

The RH28M-2DK.3I.2R 172141 serves HVAC and ventilation systems as a ZIEHL-ABEGG AC centrifugal fan. It supports forced-air cooling or fan control where natural convection cannot maintain the required thermal margin.

The aluminum backward-curved wheel is integrated with an external-rotor motor in a compact single-inlet arrangement. Its geometry supports free-running use or integration with a suitable scroll, giving equipment designers flexibility when balancing airflow, pressure and installation space.

System qualification for RH28M-2DK.3I.2R 172141 should use the final grille, nozzle and surrounding equipment structure. This helps manufacturers preserve useful airflow, manage sound and define compatible replacements.

Application Industry

HVAC Ventilation

HVAC, outdoor air-conditioning and ventilation equipment use RH28M-2DK.3I.2R 172141 where the AC centrifugal fan moves conditioned or exhaust air through the intended system path. System testing can confirm that the selected unit delivers the required cooling role after integration.

Refrigeration Systems

The application depends on controlled airflow to keep thermal conditions within the equipment designer's target range. Used within commercial and industrial refrigeration systems, RH28M-2DK.3I.2R 172141 helps refrigeration assemblies maintain a defined heat-rejection path.

Rail Transit

ZIEHL-ABEGG RH28M-2DK.3I.2R 172141 addresses airflow needs in rail vehicles and trackside equipment and removes heat from enclosed rail-vehicle or trackside equipment. Thermal consistency matters because changing loads can shift where heat collects inside the system.

Drying Equipment

A repeatable airflow path lets OEM engineers manage heat without enlarging the complete equipment package. Industrial drying and wood-processing equipment use RH28M-2DK.3I.2R 172141 where the AC centrifugal fan supports uniform process airflow across wood and other drying systems.

Frequently Asked Questions

What airflow or pressure data is supplied for RH28M-2DK.3I.2R 172141?

Available performance data includes 2400 m³/h airflow, 800 Pa pressure, 520 W input, 2860 rpm. Obtain the full curve when system resistance or part-load behavior matters.

How do I confirm RH28M-2DK.3I.2R 172141 is compatible with my equipment?

Match the complete model code, voltage, dimensions, mounting arrangement, airflow direction, performance point, and control interface to the equipment.

What type of fan or control product is RH28M-2DK.3I.2R 172141?

The product is classified as a centrifugal fan. Use the full model code because nearby variants can differ in motor, mounting, and controls.

What mounting details matter for RH28M-2DK.3I.2R 172141?

Verify the listed size, mounting pattern, fan housing or nozzle arrangement, airflow direction, and service clearance against the equipment drawing.

What noise data is available for RH28M-2DK.3I.2R 172141?

No noise value is supplied for this model. Request exact acoustic data if the project has a sound limit.

How should RH28M-2DK.3I.2R 172141 be maintained?

No model-specific maintenance interval is supplied. Keep the airflow path clean, inspect mounting and electrical connections, and follow the exact product instructions.
