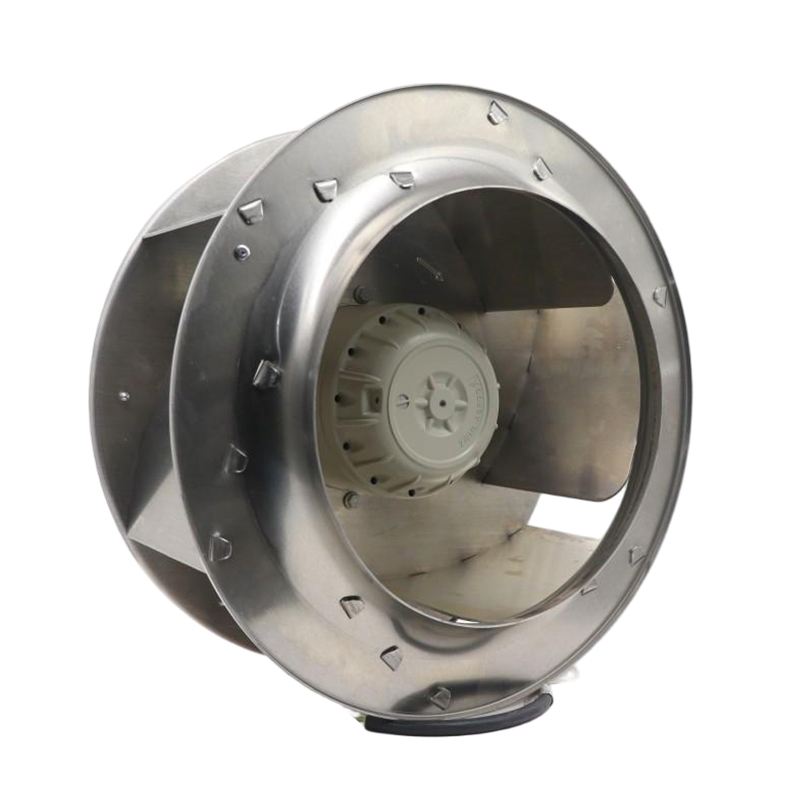

RH63M-6DK.6K.1R 109363 ZIEHL-ABEGG Centrifugal Fan

Brand :: ZIEHL-ABEGG

Model:: RH63M-6DK.6K.1R 109363 | ZIEHL-ABEGG 3~230/400VAC 1050W AC Centrifugal Fan for HVAC and ventilation

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: RH63M-6DK.6K.1R 109363 is a 3~230/400 VAC centrifugal fan for air-conditioning systems. Its main supplied feature is 430 Pa maximum pressure stated for this model. It also lists a 630 mm size specified in the upload data. Review fan selection for maintenance planning. Check the exact variant before ordering.

Product Features

Pressure Airflow

For HVAC and ventilation systems, the ZIEHL-ABEGG RH63M-6DK.6K.1R 109363 provides a practical AC centrifugal fan platform. Its construction is intended for repeatable installation where cooling performance affects equipment availability.

The aluminum backward-curved wheel is integrated with an external-rotor motor in a compact single-inlet arrangement. Its geometry supports free-running use or integration with a suitable scroll, giving equipment designers flexibility when balancing airflow, pressure and installation space.

Before volume ordering RH63M-6DK.6K.1R 109363, confirm the duty point in the finished enclosure and review connector or controller requirements. The result is a documented solution for engineering, procurement and maintenance.

Application Industry

HVAC Ventilation

Effective circulation helps the wider installation retain its intended operating temperature. Within HVAC, outdoor air-conditioning and ventilation equipment, ZIEHL-ABEGG RH63M-6DK.6K.1R 109363 maintains planned air exchange through air-handling and outdoor HVAC equipment.

Refrigeration Systems

ZIEHL-ABEGG RH63M-6DK.6K.1R 109363 is specified for commercial and industrial refrigeration systems; it supports condenser and equipment ventilation in refrigeration systems. Continuous heat removal helps prevent temperature rise from disrupting the surrounding process or electrical system.

Rail Transit

For OEM selection, the AC centrifugal fan gives engineers a defined component for prototype validation and series sourcing. For rail vehicles and trackside equipment, the RH63M-6DK.6K.1R 109363 AC centrifugal fan maintains directed airflow through transportation equipment exposed to changing loads.

Drying Equipment

For equipment serving industrial drying and wood-processing equipment, ZIEHL-ABEGG RH63M-6DK.6K.1R 109363 carries warm, moisture-laden air through industrial drying equipment. The application depends on controlled airflow to keep thermal conditions within the equipment designer's target range.

Frequently Asked Questions

How should I select between RH63M-6DK.6K.1R 109363 and a nearby model?

Compare the full model suffix, voltage, size, motor or controller type, mounting, airflow, pressure, power, speed, and protection; do not copy data from a similar model.

What should be checked before installing RH63M-6DK.6K.1R 109363?

Check electrical supply, mounting clearance, fasteners, airflow direction, guards, wiring, and access for service before installation.

How do I confirm RH63M-6DK.6K.1R 109363 is compatible with my equipment?

Match the complete model code, voltage, dimensions, mounting arrangement, airflow direction, performance point, and control interface to the equipment.

What type of fan or control product is RH63M-6DK.6K.1R 109363?

The product is classified as a centrifugal fan. Use the full model code because nearby variants can differ in motor, mounting, and controls.

What mounting details matter for RH63M-6DK.6K.1R 109363?

Verify the listed size, mounting pattern, fan housing or nozzle arrangement, airflow direction, and service clearance against the equipment drawing.

What should I check if RH63M-6DK.6K.1R 109363 develops a cooling fault?

Check supply voltage, controller signals, blocked airflow, contamination, abnormal noise, rotation, and the equipment operating point before replacing the unit.
