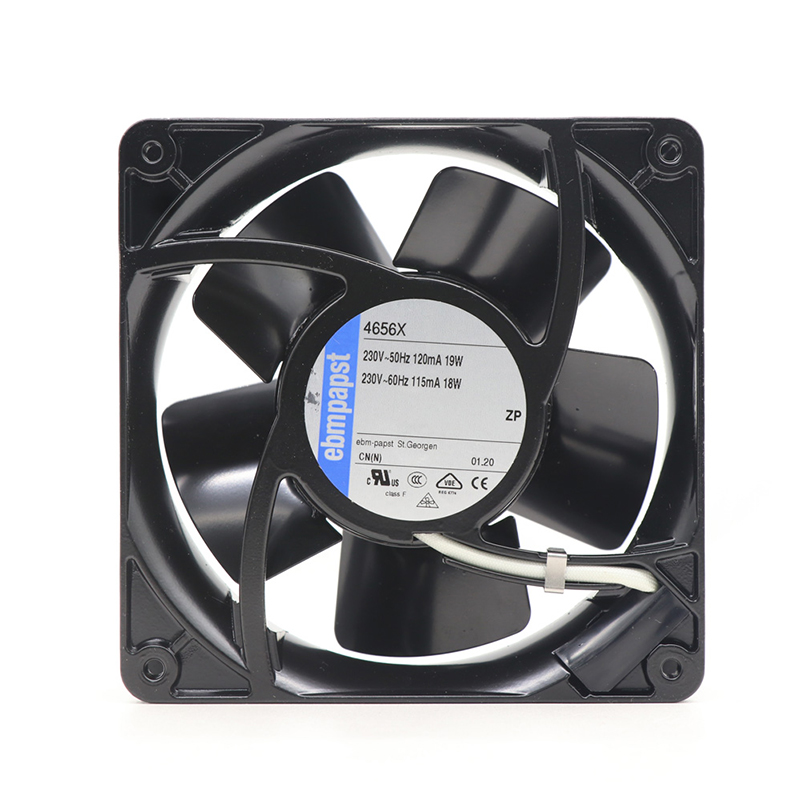

4656X ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4656X | ebm-papst 230V 19W AC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4656X is a high-performance ac axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 4656X | ebm-papst 230V 19W AC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	11911938
Max.Air Flow(m³/h)	146
Input Power(W)	19
Speed(rpm)	2600

Product Features

Compact Airflow

Designed as a compact axial cooling fan, the ebmpapst 4656X supports thermal management in industrial automation and electronic equipment. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 230 V supply, and airflow up to 146 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Automation Cooling

4656X Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Product Insights

Other Series Comparison — 4656X vs Variants

How the 4656X compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	5 m³/h	2 m³/h	130 m³/h	285 m³/h
Power	0.7 W	0.2 W	6.5 W	50 W
Noise	— dB	5 dB	— dB	— dB
Size	25258 mm	25258 mm	929238 mm	929238 mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 4656X Other Fan

Condenser Cooling: The 4656X axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the 4656X listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 4656X be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

Related Products

XF40561BX-Q023-S9H | SUNON 12V 30W 40x40x56mm 33.6m3/h DC Axial Fan for Data Center Cooling

The XF40561BX-Q023-S9H is SUNON's 12 VDC, 40 × 40 × 56 mm DC blower option for servers and data-center electronics. 7.6 Pa maximum pressure is the standout documented duty-point value. During application screening, compare the model's mounting size. Validate approvals and protection at complete-part-number level.

XG40561BX-1Q840-S9H | SUNON 12V 36.6W 40x40x56mm 41.8m3/h DC Axial Fan for Industrial Cooling

SUNON XG40561BX-1Q840-S9H combines a 40 × 40 × 56 mm DC blower platform with a 12 VDC rating for servers and data-center electronics. The supplied data list 76.1 dB, an important acoustic selection parameter. Use the documented suffix definition when planning application screening. Validate approvals and protection at complete-part-number level.

XG40561BX-1Q338-S9H | SUNON 12V 36W 40x40x56mm 41.3m3/h DC Axial Fan for Data Center Cooling

Designed for servers and data-center electronics, SUNON XG40561BX-1Q338-S9H is a 12 VDC DC blower in a 40 × 40 × 56 mm frame. The supplied data list 74 dB, an important acoustic selection parameter. Review its catalog specification during application screening. Validate approvals and protection at complete-part-number level.

XG40561BX-1Q380-S9H | SUNON 12V 34.56W 40x40x56mm 37.3m3/h DC Axial Fan for Industrial Cooling

Within servers and data-center electronics, SUNON XG40561BX-1Q380-S9H serves as a 40 × 40 × 56 mm DC blower operating at 12 VDC. The supplied data list 73.1 dB, an important acoustic selection parameter. Treat the thermal-duty record as a primary input to application screening. Validate approvals and protection at complete-part-number level.

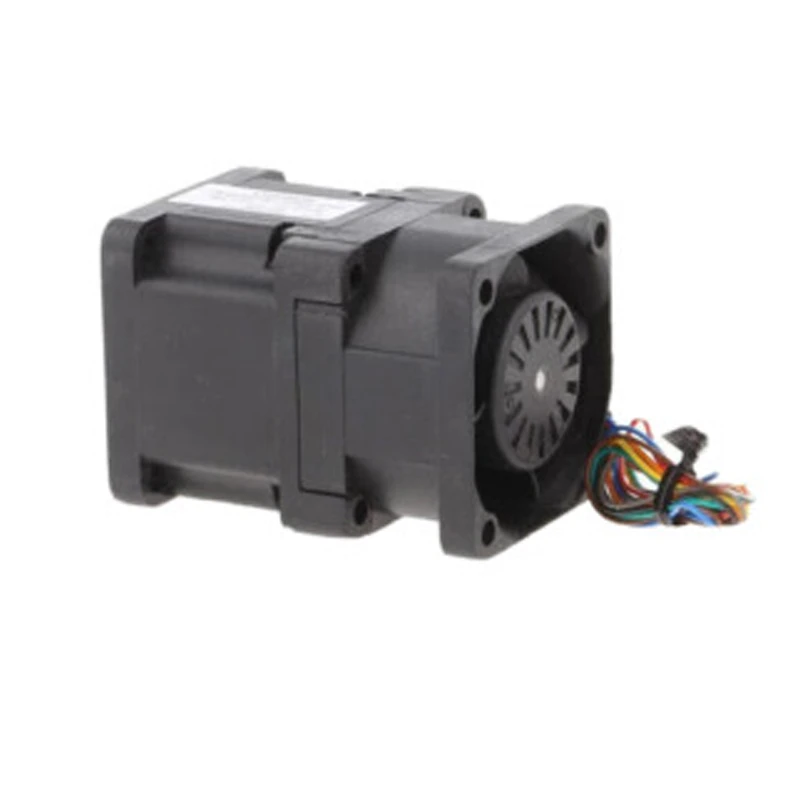

XG40561BX-1Q012-S9H | SUNON 12V 27.6W 40x40x56mm 34.6m3/h DC Axial Fan for Industrial Cooling
