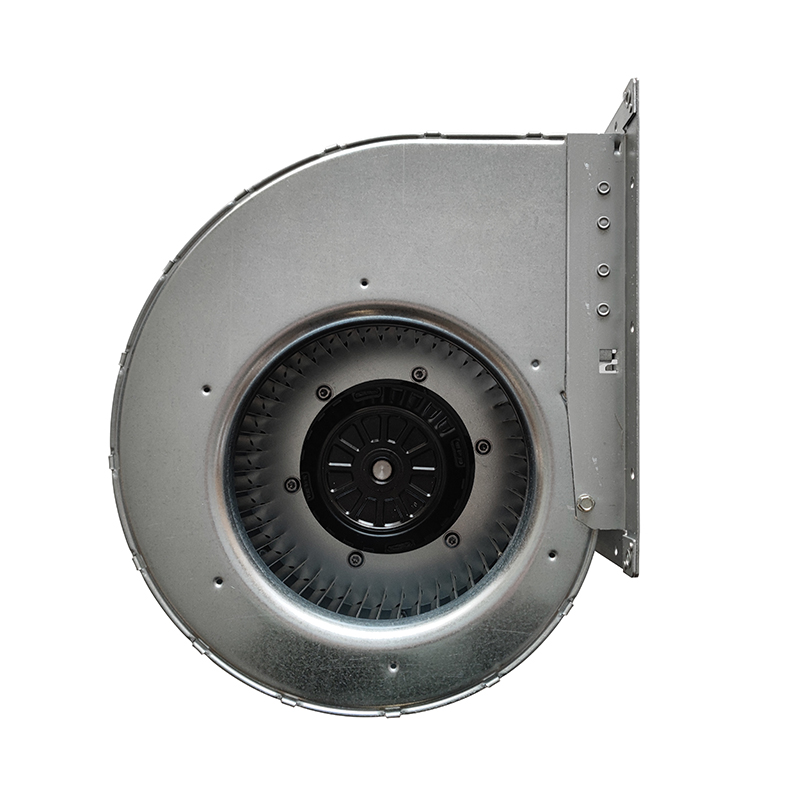

G2D160-AF28-38 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G2D160-AF28-38 | ebm-papst 480V 365W AC Centrifugal Blower for HVAC

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: A 480 V AC centrifugal blower for hvac, G2D160-AF28-38 has a clearly defined selection profile. Among the supplied ratings, a 365 W input rating with 750 Pa pressure clearly differentiates this variant.

Datasheet:: G2D160-AF28-38 | ebm-papst 480V 365W AC Centrifugal Blower for HVAC Datasheet (Pdf)

Product Features

Rated Voltage(V)	480
Size(mm)	160
Max.Air Flow(m³/h)	615
Max.Pressure(Pa)	750
Input Power(W)	365
Speed(rpm)	2820

Product Features

High Static Airflow

The ebm-papst G2D160-AF28-38 is an AC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 480 V operation, airflow up to 615 m³/h and pressure up to 750 Pa for matching airflow to system resistance. Its integrated motor and impeller support stable ventilation. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G2D160-AF28-38 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

HVAC Systems

The G2D160-AF28-38 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

Typical Applications — G2D160-AF28-38 AC Axial

Condenser Cooling: The G2D160-AF28-38 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Can the G2D160-AF28-38 reduce total ownership cost?

Correct sizing, efficient control and preventive maintenance can reduce thermal stress and avoidable downtime; validate savings for the actual duty cycle.

How does the G2D160-AF28-38 compare with an ordinary fan?

Its ac centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How should the G2D160-AF28-38 be installed?

The listed size is 160 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.

Is stock and lead time stable for the G2D160-AF28-38?

The workbook marks this product In Stock, but availability and lead time should be confirmed at quotation because inventory changes.
