G4D200-CD04-24 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G4D200-CD04-24 | ebm-papst 400V 310W AC Centrifugal Blower for Filter Cabinets

Type:: Centrifugal Fans

Industry:: Automation

Description:: G4D200-CD04-24 combines 400 V operation with a AC centrifugal blower format for filter cabinets. A key model-specific detail is 1,145 m³/h airflow with thermal-overload protection.

Datasheet:: G4D200-CD04-24 | ebm-papst 400V 310W AC Centrifugal Blower for Filter Cabinets Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	200
Max.Air Flow(m³/h)	1145
Max.Pressure(Pa)	340
Input Power(W)	310
Speed(rpm)	1530

Product Features

High Static Airflow

The ebm-papst G4D200-CD04-24 is an AC centrifugal blower for industrial cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 1145 m³/h and pressure up to 340 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, sheet-steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G4D200-CD04-24 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Industrial Cooling

The G4D200-CD04-24 ebm-papst fan is used in industrial equipment cooling where continuous heat generation requires controlled airflow for equipment heat removal and stable system operation.

Product Insights

G4D Series Comparison — G4D200-CD04-24 vs Variants

How the G4D200-CD04-24 compares to nearby G4D series variants:

Model	G4D200-CD04-24	G4D200-CD04-28	G4D200-CL12-01	G4D310-DK03-05/F02
Air Flow	1145 m³/h	1020 m³/h	1270 m³/h	—
Power	310 W	210 W	340 W	2180 W
Noise	— dB	— dB	— dB	— dB
Size	200 mm	200 mm	200 mm	310 mm

All G4D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — G4D200-CD04-24 AC Axial

Condenser Cooling: The G4D200-CD04-24 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How does the G4D200-CD04-24 compare with an ordinary fan?

Its ac centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How do I confirm compatibility for the G4D200-CD04-24?

Compare 400 V, 200 mm, 1145 m³/h, 340 Pa, connector details and operating environment with the existing system.

What should be considered for noise control with the G4D200-CD04-24?

Noise depends on the operating point and installation. Use smooth airflow paths, secure mounting and suitable isolation where needed.

How should the G4D200-CD04-24 be installed?

The listed size is 200 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.

Related Products

G2D180-BD18-13 | ebm-papst 400V 430W AC Centrifugal Blower for Inverter Cooling

In inverter cooling, G2D180-BD18-13 serves as a 400 V AC centrifugal blower. Its standout data point is 840 Pa pressure with IP00 protection. It supports exact-model comparison for OEM sourcing and replacement work.

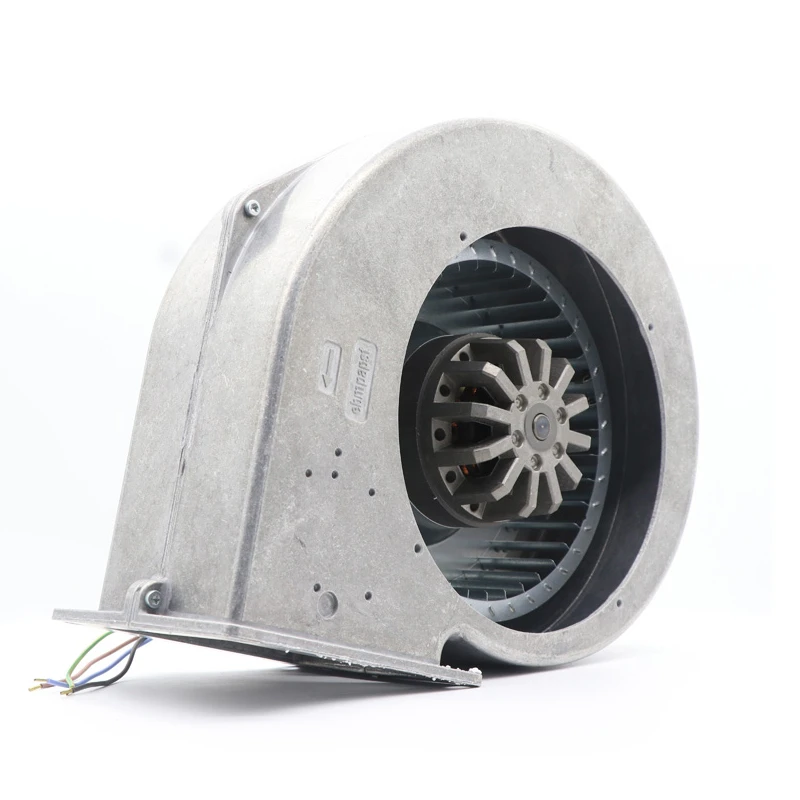

G2D180-BD18-11 | ebm-papst 400V 305W AC Centrifugal Blower for CNC Machines
