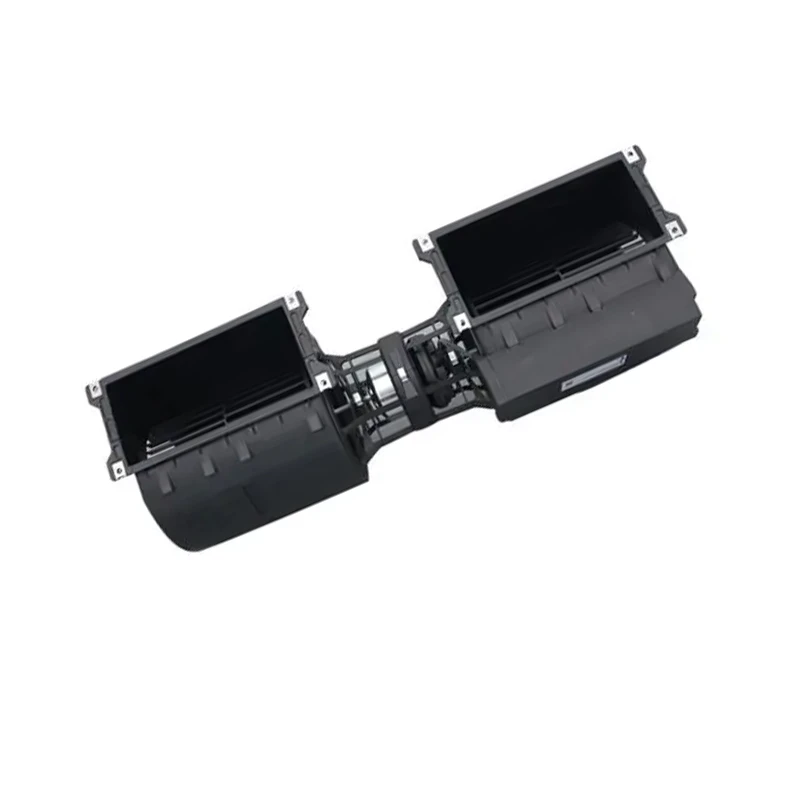

K3G146-AC15-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G146-AC15-01 | ebm-papst 1~ 200-277V 60W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Designed for Air Handling, the ebm-papst K3G146-AC15-01 is a 200-277V EC backward-curved centrifugal fan, defined by a documented 60 W input rating. The data helps compare K-series variants.

Datasheet:: K3G146-AC15-01 | ebm-papst 1~ 200-277V 60W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	1~ 200-277
Size(mm)	146
Max.Air Flow(m³/h)	1105
Max.Pressure(Pa)	100
Input Power(W)	60
Speed(rpm)	910
Noise(db)	44

Product Features

Low Noise Airflow

The ebm-papst K3G146-AC15-01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 1~ 200-277 V operation, airflow up to 1105 m³/h and pressure up to 100 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, engineered-plastic impeller, PWM/0-10 V speed control for durable motor support. Listed noise is 44 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G146-AC15-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G146-AC15-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G146-AC15-01 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G146-AC15-01 vs Variants

How the K3G146-AC15-01 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G146-AC15-01 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G146-AC15-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What compliance information is supplied for the K3G146-AC15-01?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.

What performance data is available for the K3G146-AC15-01?

The supplied table lists 1,105 m³/h, 100 Pa, 910 rpm; use the exact datasheet for the complete operating curve.

Which equipment can use the K3G146-AC15-01?

It is listed for Air Handling. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.
