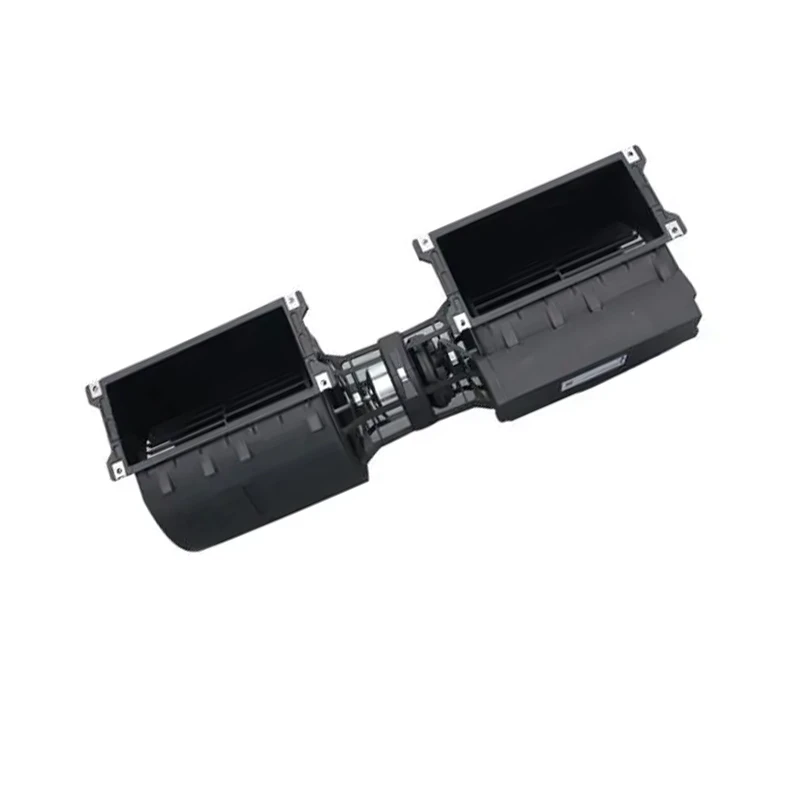

K3G146-AD01-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G146-AD01-01 | ebm-papst 1~ 200-277V 243W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Specified for Air Handling, the ebm-papst K3G146-AD01-01 is a 200-277V EC backward-curved centrifugal fan, characterized by 146 mm dimensions for installation planning. The value helps verify equipment fit.

Datasheet:: K3G146-AD01-01 | ebm-papst 1~ 200-277V 243W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	1~ 200-277
Size(mm)	146
Max.Air Flow(m³/h)	2295
Max.Pressure(Pa)	200
Input Power(W)	243
Speed(rpm)	1400
Noise(db)	63

Product Features

High Static Airflow

The ebm-papst K3G146-AD01-01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 1~ 200-277 V operation, airflow up to 2295 m³/h and pressure up to 200 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, engineered-plastic impeller, PWM/0-10 V speed control for durable motor support. Listed noise is 63 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G146-AD01-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G146-AD01-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What installation checks apply to the K3G146-AD01-01?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

How should buyers select the K3G146-AD01-01 for an operating point?

Match required airflow and pressure on the exact performance curve, then verify voltage, power, dimensions and environmental limits.

Why choose the K3G146-AD01-01 for Air Handling?

Its documented 200-277V EC backward-curved centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.
