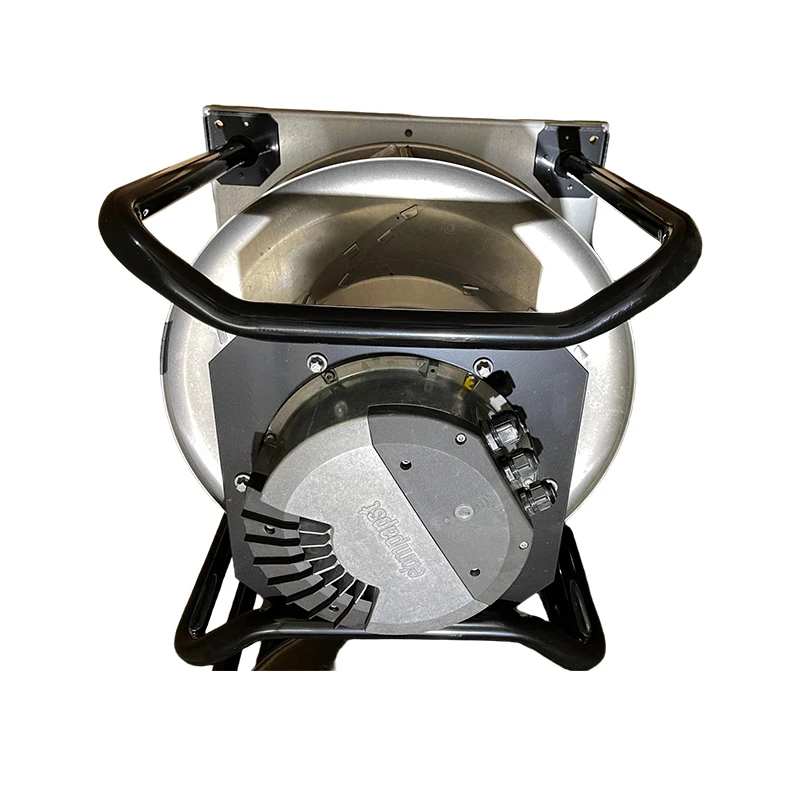

K3G500-PC16-L1/F01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G500-PC16-L1/F01 | ebm-papst 3~380-480V 7000W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Developed for Air Handling, the ebm-papst K3G500-PC16-L1/F01 is a 380-480V EC backward-curved centrifugal fan, centered on a listed pressure capability of 1,800 Pa. The data helps compare K-series variants.

Datasheet:: K3G500-PC16-L1/F01 | ebm-papst 3~380-480V 7000W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	500
Max.Air Flow(m³/h)	19450
Max.Pressure(Pa)	1800
Input Power(W)	7000
Speed(rpm)	2400
Noise(db)	84

Product Features

High Static Airflow

The ebm-papst K3G500-PC16-L1/F01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 19450 m³/h and pressure up to 1800 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP55 protection, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 84 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G500-PC16-L1/F01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G500-PC16-L1/F01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What supply voltage does the K3G500-PC16-L1/F01 require?

The supplied table lists 380-480V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.

Is the K3G500-PC16-L1/F01 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

Does the K3G500-PC16-L1/F01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
