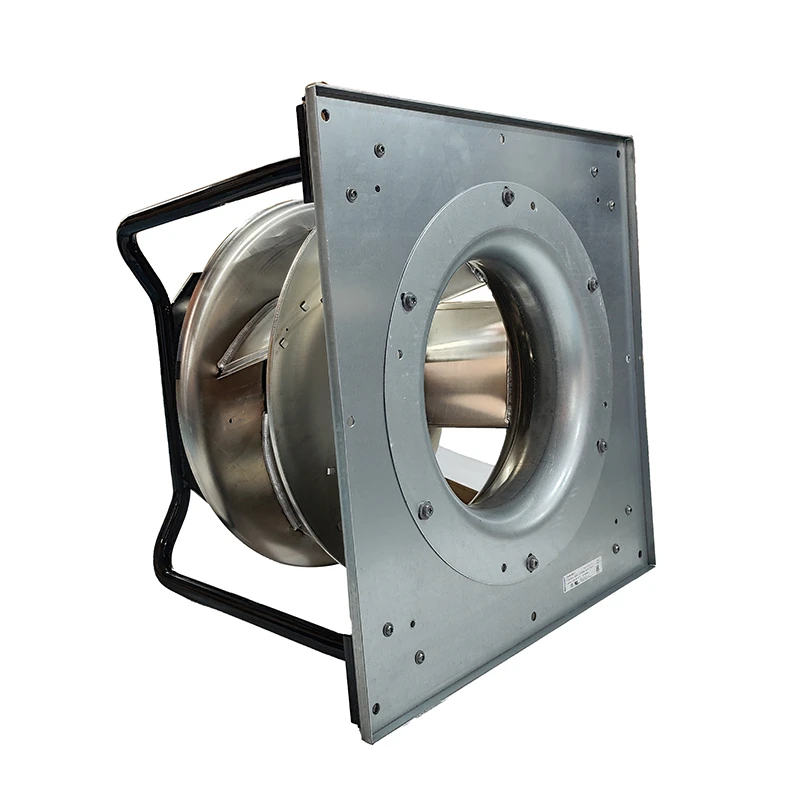

K3G560-PC04-01/F01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G560-PC04-01/F01 | ebm-papst 3~380-480V 5000W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Suited to Air Handling, the ebm-papst K3G560-PC04-01/F01 is a 380-480V EC backward-curved centrifugal fan, with a focus on a listed airflow of 21,265 m³/h. This assists electrical and mechanical review.

Datasheet:: K3G560-PC04-01/F01 | ebm-papst 3~380-480V 5000W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Max.Air Flow(m³/h)	21265
Max.Pressure(Pa)	1000
Input Power(W)	5000
Speed(rpm)	1760
Noise(db)	77

Product Features

High Static Airflow

The ebm-papst K3G560-PC04-01/F01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 21265 m³/h and pressure up to 1000 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 77 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G560-PC04-01/F01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G560-PC04-01/F01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G560-PC04-01/F01 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G560-PC04-01/F01 vs Variants

How the K3G560-PC04-01/F01 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G560-PC04-01/F01 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G560-PC04-01/F01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the K3G560-PC04-01/F01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

What compliance information is supplied for the K3G560-PC04-01/F01?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.

How can noise be managed when using the K3G560-PC04-01/F01?

The table lists 77 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

Can the K3G560-PC04-01/F01 run continuously in 24/7 equipment?

Continuous operation must remain within the published electrical, thermal and aerodynamic limits; confirm the exact datasheet and system conditions.
