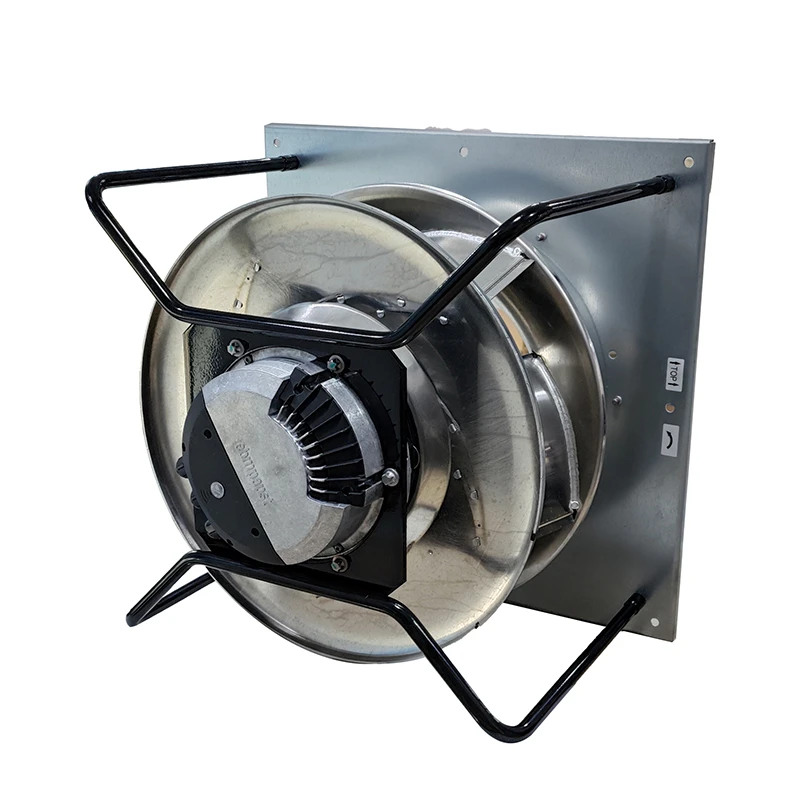

K3G560-PC04-05 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G560-PC04-05 | ebm-papst 3~380-480V 5000W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Engineered around Air Handling, the ebm-papst K3G560-PC04-05 is a 380-480V EC backward-curved centrifugal fan, featuring a listed airflow of 21,265 m³/h. It supports replacement and design review.

Datasheet:: K3G560-PC04-05 | ebm-papst 3~380-480V 5000W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Max.Air Flow(m³/h)	21265
Max.Pressure(Pa)	1300
Input Power(W)	5000
Speed(rpm)	1760
Noise(db)	77

Product Features

High Static Airflow

The ebm-papst K3G560-PC04-05 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 21265 m³/h and pressure up to 1300 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP55 protection, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 77 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G560-PC04-05 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G560-PC04-05 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G560-PC04-05 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G560-PC04-05 vs Variants

How the K3G560-PC04-05 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G560-PC04-05 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G560-PC04-05 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How should the K3G560-PC04-05 be checked for compatibility?

Compare 560 mm, 380-480V, 5,000 W plus mounting, connector and duty-point requirements.

What distinguishes the K3G560-PC04-05 from a general-purpose fan?

Its EC backward-curved centrifugal fan configuration and a listed airflow of 21,265 m³/h provide model-specific criteria for matching Air Handling systems.

Is inventory stable for the K3G560-PC04-05?

The workbook marks it In Stock, but quantity and lead time should be reconfirmed at quotation because availability can change.

How can noise be managed when using the K3G560-PC04-05?

The table lists 77 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.
