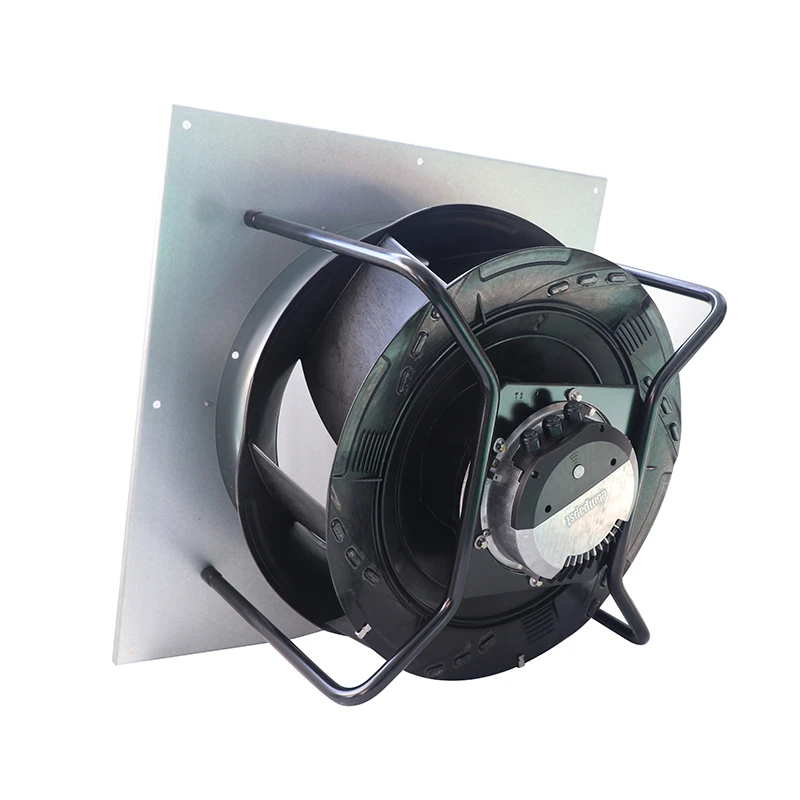

K3G630-FB32-03/F02 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G630-FB32-03/F02 | ebm-papst 3~380-480V 3700W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Built for Air Handling, the ebm-papst K3G630-FB32-03/F02 is a 380-480V EC backward-curved centrifugal fan, centered on a listed airflow of 21,540 m³/h. This helps guide installation planning.

Datasheet:: K3G630-FB32-03/F02 | ebm-papst 3~380-480V 3700W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	630
Max.Air Flow(m³/h)	21540
Max.Pressure(Pa)	780
Input Power(W)	3700
Speed(rpm)	1420
Noise(db)	73

Product Features

High Static Airflow

The ebm-papst K3G630-FB32-03/F02 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 21540 m³/h and pressure up to 780 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP55 protection, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 73 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G630-FB32-03/F02 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G630-FB32-03/F02 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G630-FB32-03/F02 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G630-FB32-03/F02 vs Variants

How the K3G630-FB32-03/F02 compares to nearby K3G series variants:

Model	K3G097-AK34-43	K3G190-RD45-03	K3G250-AV29-B2	K3G250-PR17-W9
Air Flow	1195 m³/h	524 m³/h	3120 m³/h	2405 m³/h
Power	325 W	169 W	750 W	1160 W
Noise	— dB	— dB	63 dB	— dB
Size	97 mm	190 mm	250 mm	250 mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G630-FB32-03/F02 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G630-FB32-03/F02 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How should the K3G630-FB32-03/F02 be checked for compatibility?

Compare 630 mm, 380-480V, 3,700 W plus mounting, connector and duty-point requirements.

Can the K3G630-FB32-03/F02 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Does the K3G630-FB32-03/F02 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
