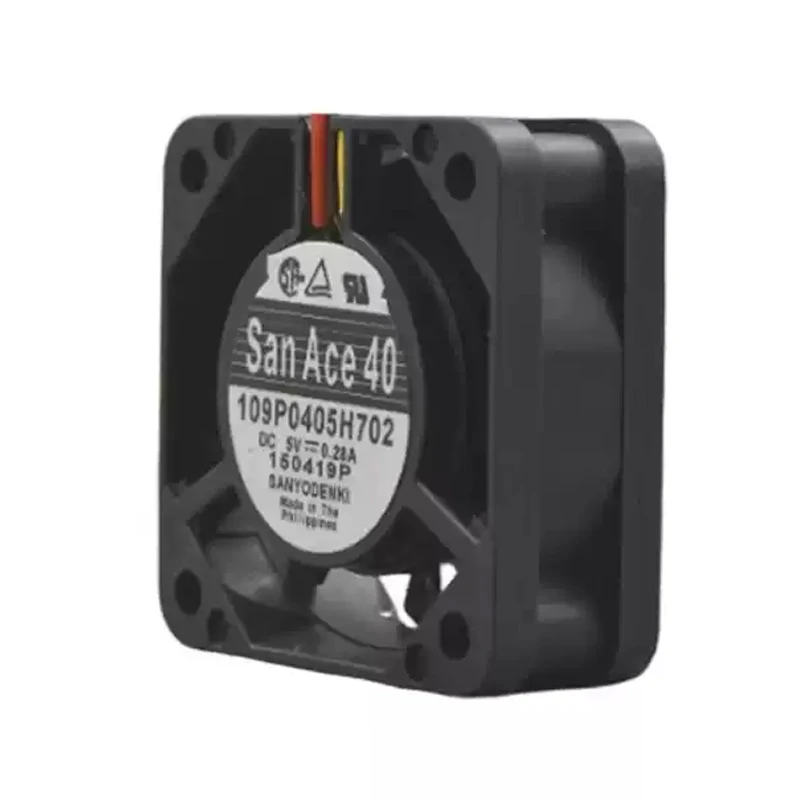

109P0405H702 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0405H702 | Sanyo Denki 5VDC 1.4W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109P0405H702 for servers, UPS systems, and telecom equipment as a 5 VDC DC axial fan with 40 × 40 × 15 mm dimensions. The 10.812 m³/h airflow figure supports its stated equipment-cooling role. For enclosure sizing, start with the supplied ventilation capacity. Obtain the applicable curve before final duty-point approval.

Datasheet:: 109P0405H702 | Sanyo Denki 5VDC 1.4W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	5
Size(mm)	404015
Max.Air Flow(m³/h)	10.812
Input Power(W)	1.4
Speed(rpm)	7700
Noise(db)	28

Product Features

Efficient Cooling

109P0405H702 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The specified maximum airflow of 10.812 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Measure installed sound in the final cabinet. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 109P0405H702 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

For storage arrays and data appliances, 109P0405H702 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

ICT Equipment

SANYO DENKI 109P0405H702 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What supply voltage does 109P0405H702 require?

The worksheet lists 5 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109P0405H702?

The listed speed is 7700 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109P0405H702?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109P0405H702 have a pressure rating?

No pressure value is supplied; request the performance curve if static pressure is important.

What certifications apply to 109P0405H702?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109P0405H702 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
