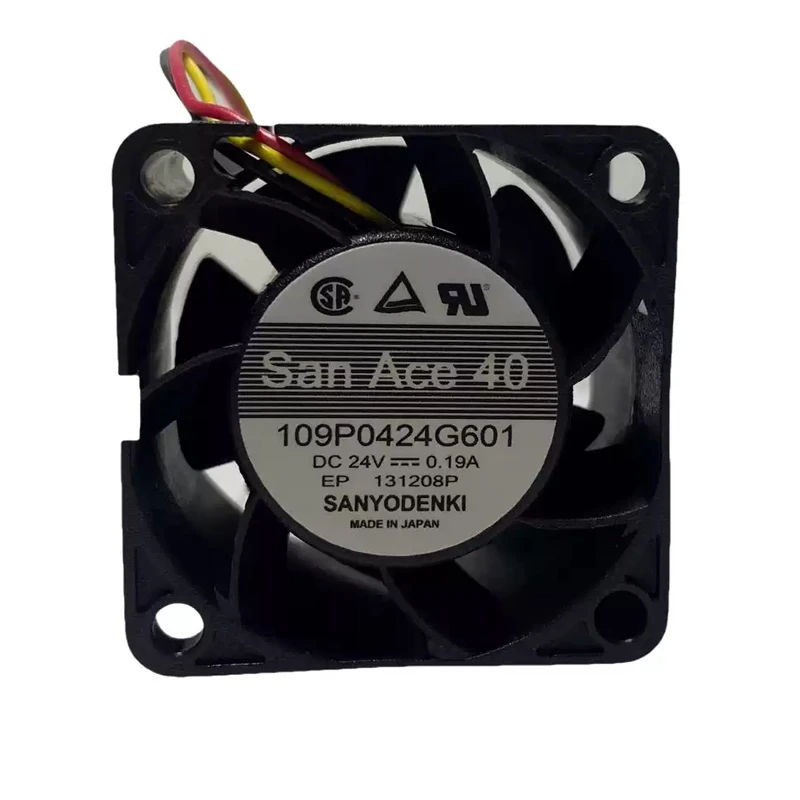

109P0424G601 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424G601 | Sanyo Denki 24VDC 3.6W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 109P0424G601 addresses servers, UPS systems, and telecom equipment through a 24 VDC DC axial fan platform measuring 40 × 40 × 20 mm. High airflow is highlighted together with a high-static-pressure design. The 20.8 m³/h airflow figure supports its stated equipment-cooling role. Check thermal margin assessment catalog specification.

Datasheet:: 109P0424G601 | Sanyo Denki 24VDC 3.6W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020
Max.Air Flow(m³/h)	20.8
Max.Pressure(Pa)	153.8
Input Power(W)	3.6
Speed(rpm)	12500
Noise(db)	44

Product Features

Efficient Cooling

SANYO DENKI positions 109P0424G601 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 20.8 m3/h maximum airflow supports rapid air exchange, while 153.8 Pa pressure capability helps overcome resistance within the finished equipment. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Map airflow around the hottest components. It supports a clear fan specification for future servicing. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109P0424G601 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Storage Systems

109P0424G601 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0424G601 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Frequently Asked Questions

What equipment is 109P0424G601 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Which application details matter most for 109P0424G601?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

Does 109P0424G601 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 109P0424G601?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 109P0424G601?

The worksheet lists 3.6 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 109P0424G601 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.
