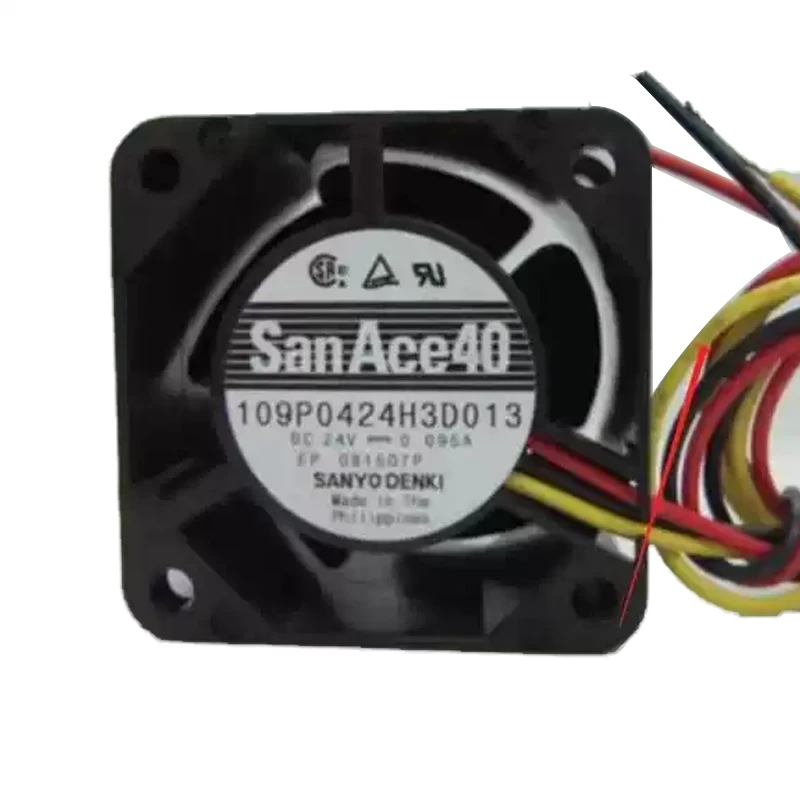

109P0424H3D013 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H3D013 | Sanyo Denki 24VDC 2.28W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0424H3D013 combines a 40 × 40 × 28 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. The supplied reference emphasizes high static pressure and high airflow. The 19.2 m³/h airflow figure supports its stated equipment-cooling role. Selection focus: wiring scheme review rated dataset.

Datasheet:: 109P0424H3D013 | Sanyo Denki 24VDC 2.28W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	19.2
Max.Pressure(Pa)	102.9
Input Power(W)	2.28
Speed(rpm)	8700
Noise(db)	37

Product Features

Efficient Cooling

The San Ace 109P0424H3D013 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Its 19.2 m3/h maximum airflow supports rapid air exchange, while 102.9 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Verify the mating connector and lead reach. This improves consistency between prototype and production. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109P0424H3D013 serves server chassis and computing nodes that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Storage Systems

109P0424H3D013 is suitable for storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0424H3D013 supports thermal management in network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Frequently Asked Questions

Can 109P0424H3D013 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109P0424H3D013?

The worksheet lists 37 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109P0424H3D013 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 109P0424H3D013 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109P0424H3D013 be matched to an enclosure?

Check its 40 × 40 × 28 mm size, 19.2 m³/h airflow, 102.9 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109P0424H3D013?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.
