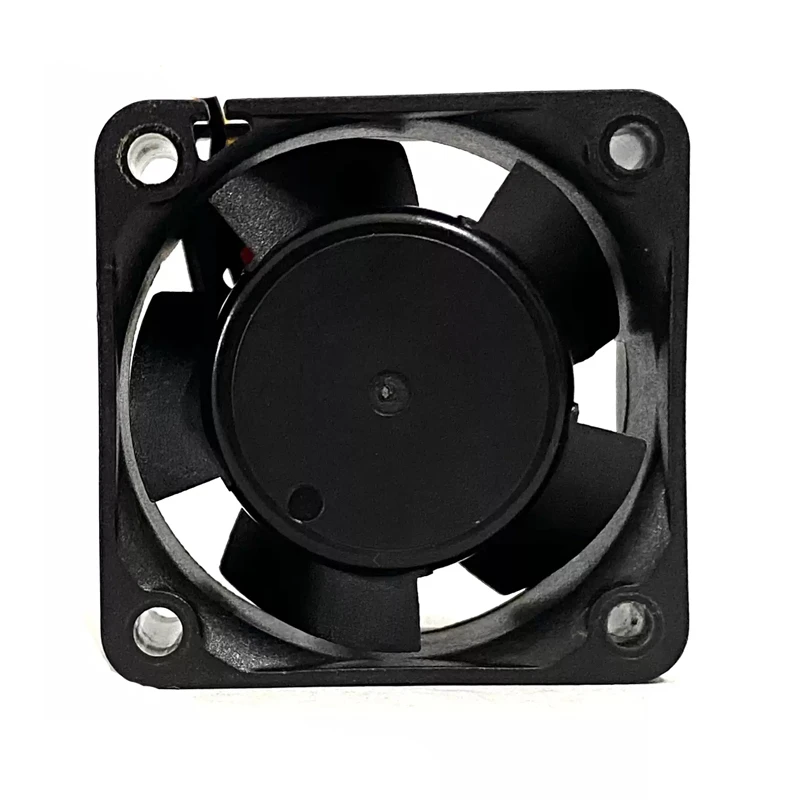

109P0424H3D18 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H3D18 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 24 VDC Sanyo Denki 109P0424H3D18 is a DC axial fan sized 40 × 40 × 20 mm for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 40 × 40 × 20 mm format is the primary stated selection detail. Check thermal margin assessment ventilation capacity.

Datasheet:: 109P0424H3D18 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020

Product Features

Pressure Cooling

109P0424H3D18 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Include filter loading in the airflow margin. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

For server chassis and computing nodes, 109P0424H3D18 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Storage Systems

SANYO DENKI 109P0424H3D18 serves storage arrays and data appliances that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

ICT Equipment

109P0424H3D18 is suitable for network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Frequently Asked Questions

Is 109P0424H3D18 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109P0424H3D18 be matched to an enclosure?

Check its 40 × 40 × 20 mm size, mounting points, airflow direction, and system resistance.

Is 109P0424H3D18 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 109P0424H3D18?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 109P0424H3D18 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
