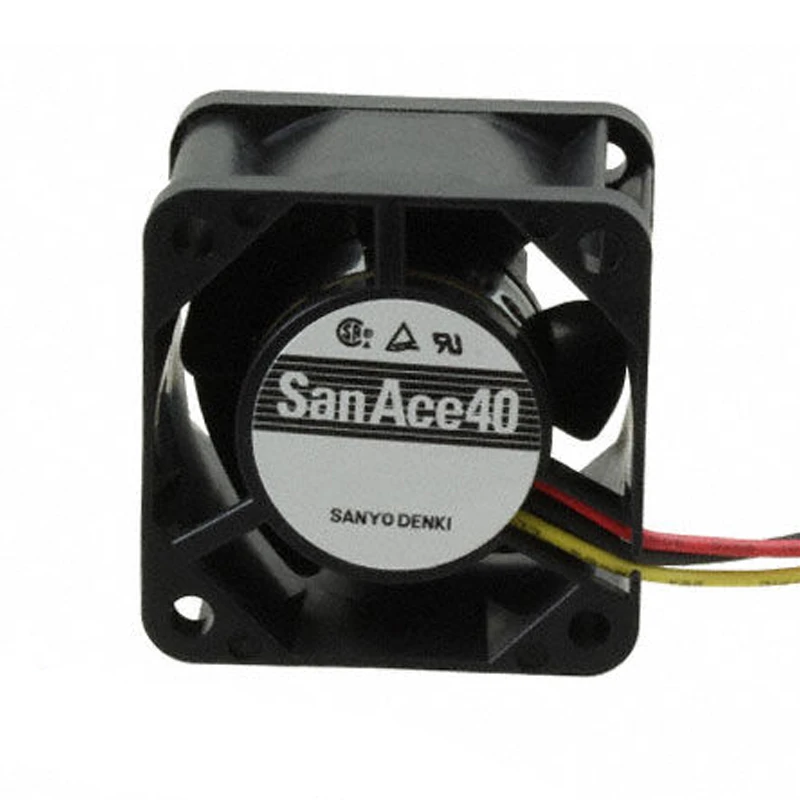

109P0424H6D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H6D01 | Sanyo Denki 24VDC 1.68W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109P0424H6D01 combines 24 VDC operation with a 40 × 40 × 20 mm DC axial fan design. Series focus: high airflow and pressure. The 13.94 m³/h airflow figure supports its stated equipment-cooling role. Check procurement data comparison operating point. Focus: procurement data comparison operating point.

Datasheet:: 109P0424H6D01 | Sanyo Denki 24VDC 1.68W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020
Max.Air Flow(m³/h)	13.94
Max.Pressure(Pa)	69.7
Input Power(W)	1.68
Speed(rpm)	8300
Noise(db)	35

Product Features

Low Vibration Fan

The San Ace 109P0424H6D01 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 13.94 m3/h and maximum pressure of 69.7 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Confirm inlet clearance around nearby cables. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109P0424H6D01 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 109P0424H6D01 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109P0424H6D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What should be checked if 109P0424H6D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 109P0424H6D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 109P0424H6D01?

Use rated voltage, 40 × 40 × 20 mm dimensions, 13.94 m³/h airflow, 8300 rpm, and 1.68 W input for preliminary comparison.

Is 109P0424H6D01 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 109P0424H6D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
