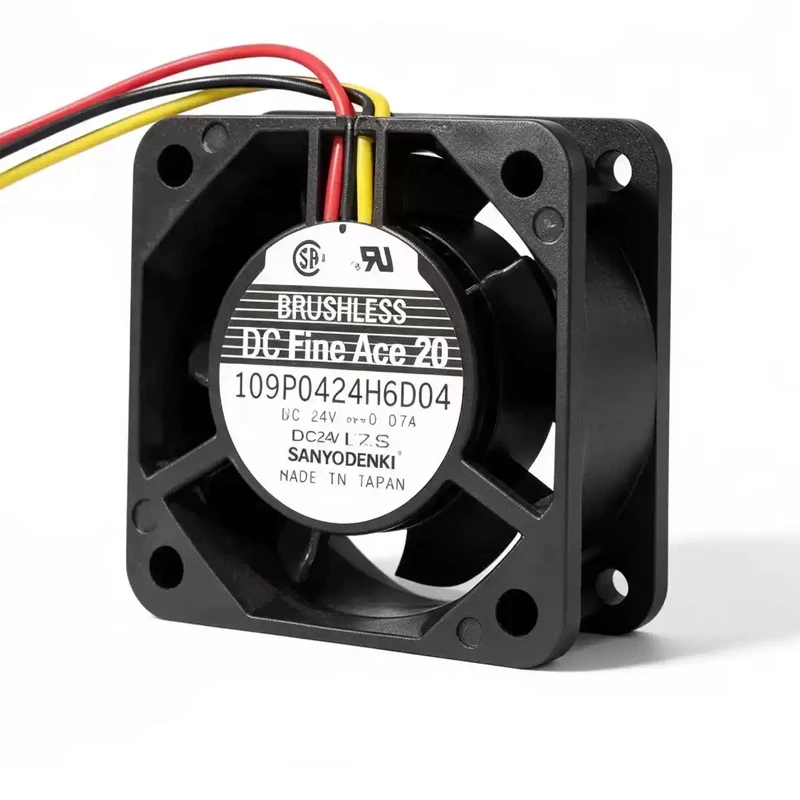

109P0424H6D04 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H6D04 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109P0424H6D04 is a Sanyo Denki 24 VDC, 40 × 40 × 20 mm DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Base maintenance preparation on the stated sound level. Validate mounting and wiring from the model drawing. Focus: thermal margin assessment sound level.

Datasheet:: 109P0424H6D04 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020

Product Features

Low Vibration Fan

109P0424H6D04 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Include filter loading in the airflow margin. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

109P0424H6D04 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation. Verified.

Storage Systems

The San Ace 109P0424H6D04 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

ICT Equipment

For network and other ICT hardware, 109P0424H6D04 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Frequently Asked Questions

Is 109P0424H6D04 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 109P0424H6D04?

Use rated voltage, 40 × 40 × 20 mm dimensions for preliminary comparison.

Is 109P0424H6D04 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 109P0424H6D04 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 109P0424H6D04?

No airflow value is supplied for this row; obtain the official curve before selection.
