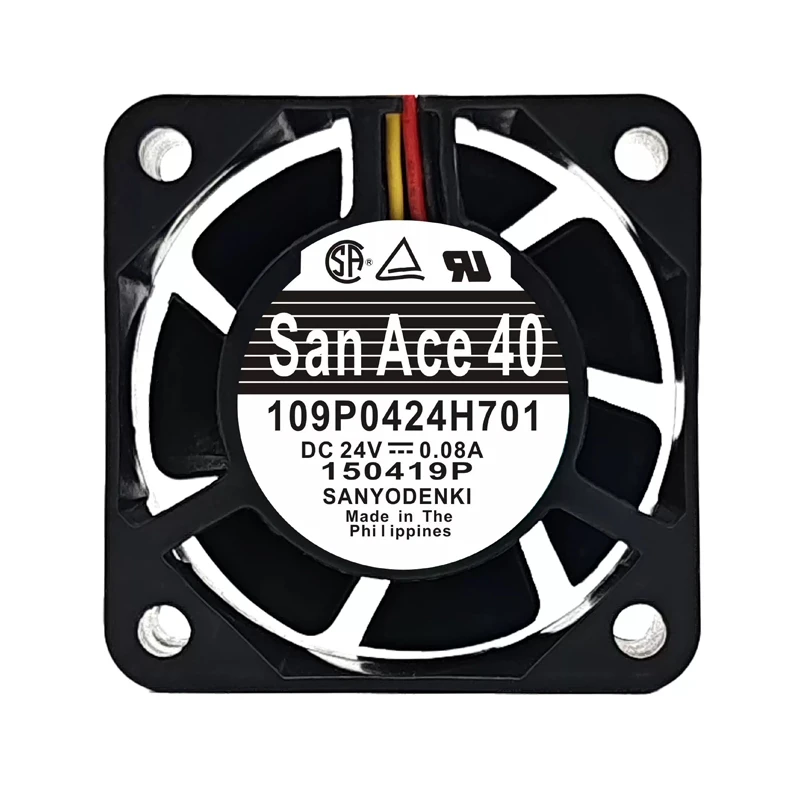

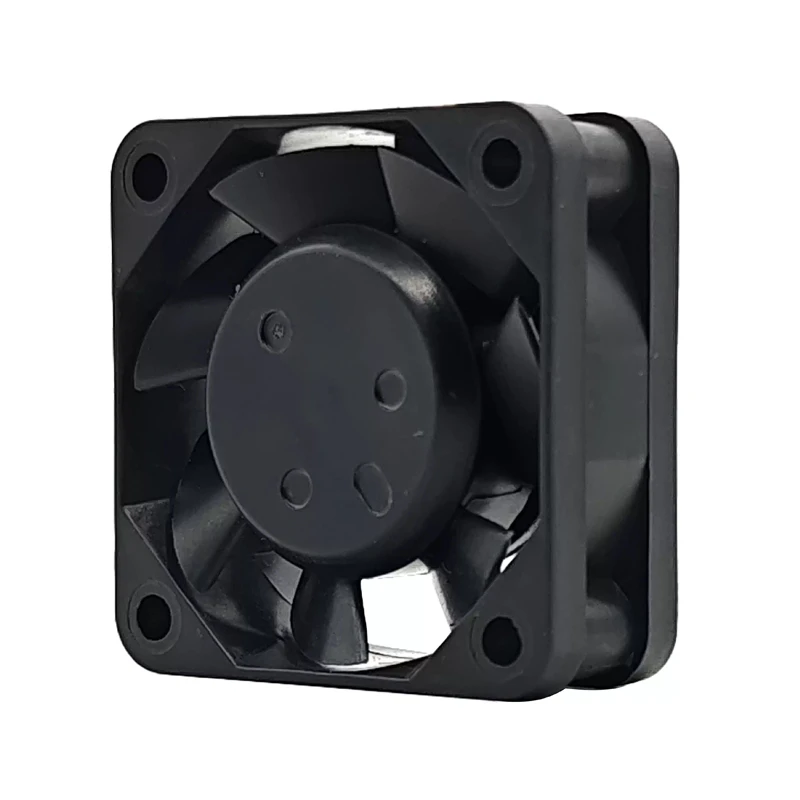

109P0424H701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H701 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109P0424H701 combines 24 VDC operation with a 40 × 40 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 10.8 m³/h airflow figure supports its stated equipment-cooling role. Check resistance curve checking installation footprint.

Datasheet:: 109P0424H701 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404015
Max.Air Flow(m³/h)	10.8
Max.Pressure(Pa)	75.5
Input Power(W)	1.92
Speed(rpm)	7700
Noise(db)	28

Product Features

High Airflow Design

SANYO DENKI positions 109P0424H701 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 10.8 m3/h maximum airflow supports rapid air exchange, while 75.5 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Qualify performance with the production guard. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109P0424H701 serves server chassis and computing nodes that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Storage Systems

109P0424H701 is suitable for storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0424H701 supports thermal management in network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

What input power is listed for 109P0424H701?

The worksheet lists 1.92 W. Check supply capacity and operating conditions before commissioning.

Can 109P0424H701 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What should procurement confirm for 109P0424H701?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109P0424H701 have a pressure rating?

The worksheet lists 75.5 Pa. Use the official curve to match it to system resistance.

Is 109P0424H701 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

What IP protection is documented for 109P0424H701?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.
