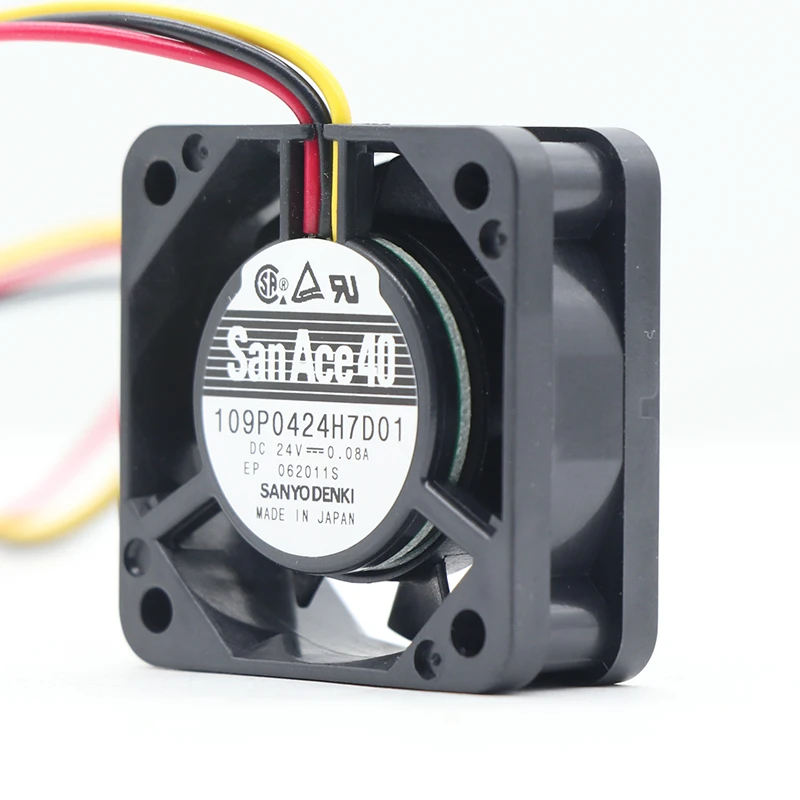

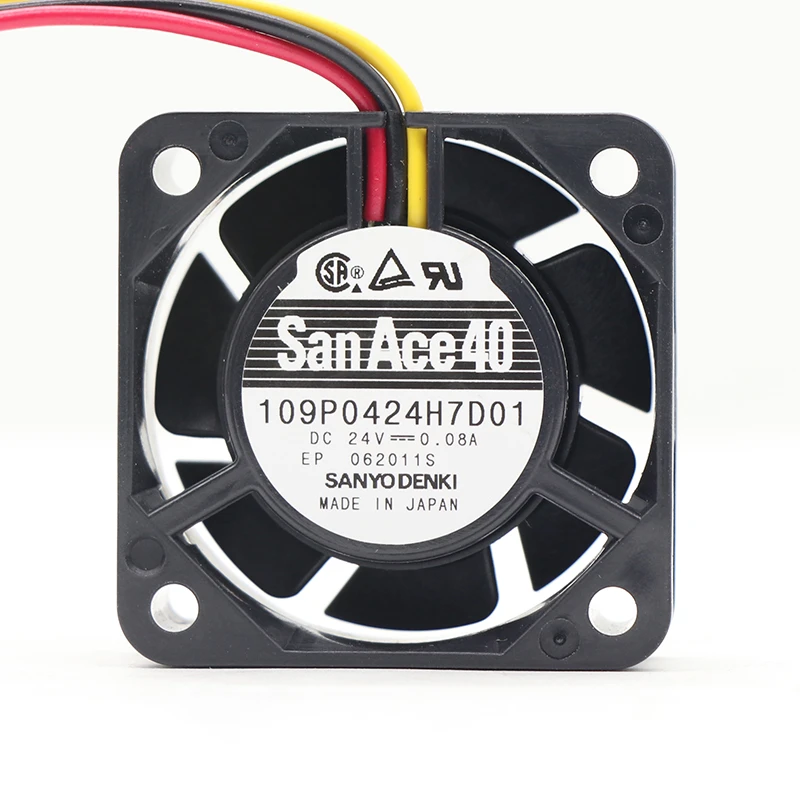

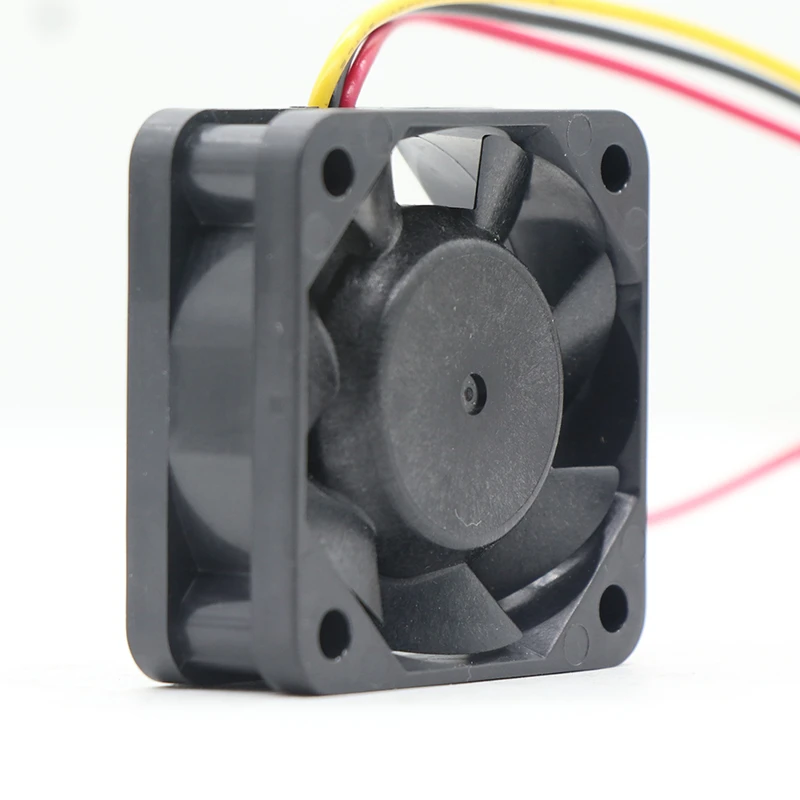

109P0424H7D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H7D01 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109P0424H7D01 combines 24 VDC operation with a 40 × 40 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 11 m³/h airflow figure supports its stated equipment-cooling role. Check airflow path balancing performance curve.

Datasheet:: 109P0424H7D01 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404015
Max.Air Flow(m³/h)	11
Max.Pressure(Pa)	75.5
Input Power(W)	1.92
Speed(rpm)	7700
Noise(db)	28

Product Features

High Airflow Design

SANYO DENKI positions 109P0424H7D01 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

With up to 11 m3/h airflow and 75.5 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Check startup demand against the power supply. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0424H7D01 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 109P0424H7D01 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 109P0424H7D01 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

How noisy is 109P0424H7D01?

The worksheet lists 28 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Can 109P0424H7D01 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What should procurement confirm for 109P0424H7D01?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 109P0424H7D01 be matched to an enclosure?

Check its 40 × 40 × 15 mm size, 11 m³/h airflow, 75.5 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109P0424H7D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109P0424H7D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
