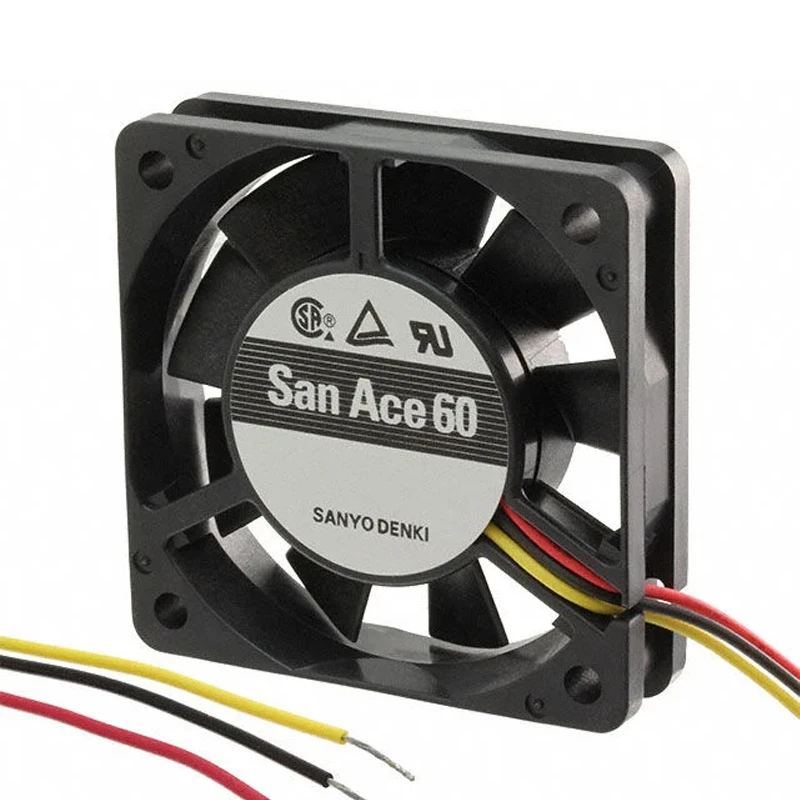

109P0624H601 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0624H601 | Sanyo Denki 24VDC 1.68W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 60 × 60 × 20 mm Sanyo Denki 109P0624H601 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. During wiring review, compare the model's dimensional envelope. Obtain the applicable curve before final duty-point approval. Focus: mounting geometry validation.

Product Features

Rated Voltage(V)	24
Size(mm)	606020
Max.Air Flow(m³/h)	24.8
Max.Pressure(Pa)	31.8
Input Power(W)	1.68
Speed(rpm)	4200
Noise(db)	31

Product Features

Stable San Ace Fan

The SANYO DENKI 109P0624H601 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

Its 24.8 m3/h maximum airflow supports rapid air exchange, while 31.8 Pa pressure capability helps overcome resistance within the finished equipment. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Assess vibration transfer into enclosure panels. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 109P0624H601 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

109P0624H601 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0624H601 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What IP protection is documented for 109P0624H601?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 109P0624H601 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 109P0624H601 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109P0624H601?

The worksheet lists 31 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109P0624H601 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109P0624H601 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.
