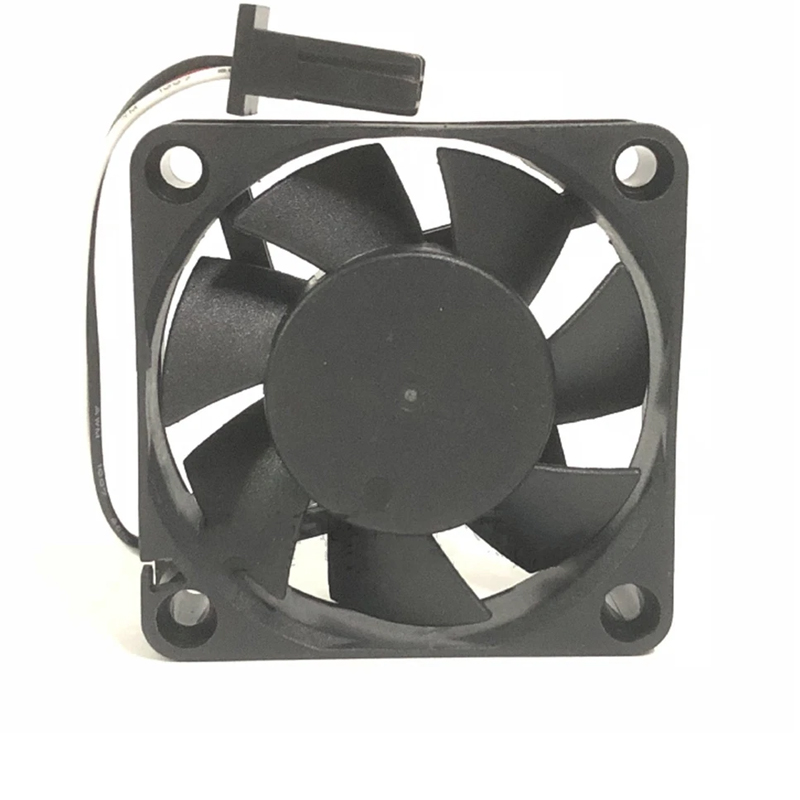

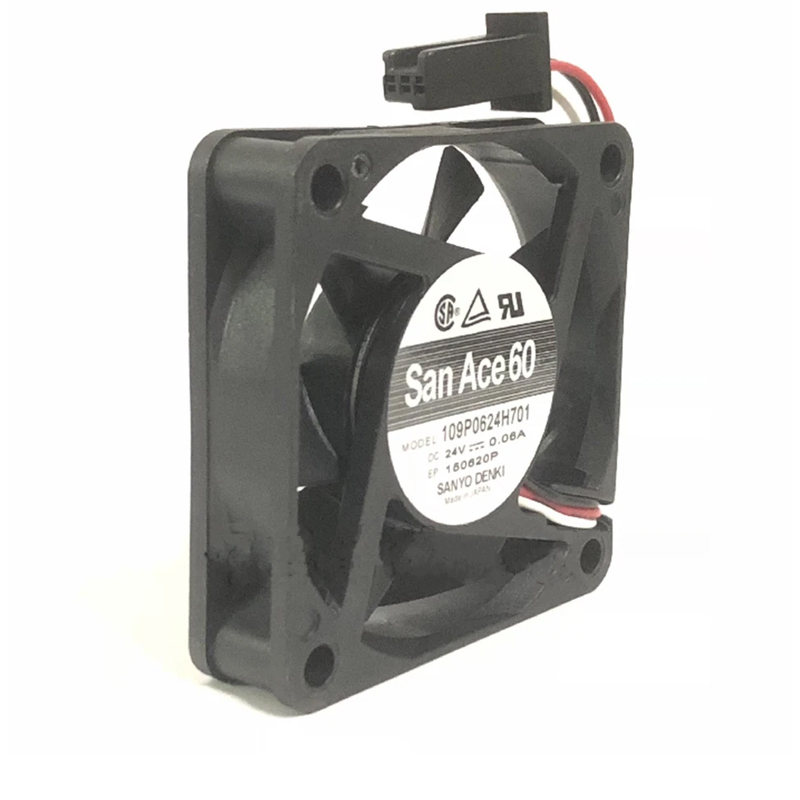

109P0624H701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0624H701 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 24 VDC Sanyo Denki 109P0624H701 is a DC axial fan sized 60 × 60 × 15 mm for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. A listed input of 1.44 W is the notable efficiency-related parameter. Check compatibility risk checking volume-flow figure.

Product Features

Rated Voltage(V)	24
Size(mm)	606015
Max.Air Flow(m³/h)	23.97
Max.Pressure(Pa)	38.2
Input Power(W)	1.44
Speed(rpm)	4100
Noise(db)	32

Product Features

High Airflow Design

109P0624H701 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 23.97 m3/h airflow and 38.2 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify the mating connector and lead reach. The check aligns mechanical fit with cooling duty. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0624H701 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

For storage arrays and data appliances, 109P0624H701 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

ICT Equipment

SANYO DENKI 109P0624H701 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What bearing type does 109P0624H701 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109P0624H701 be matched to an enclosure?

Check its 60 × 60 × 15 mm size, 23.97 m³/h airflow, 38.2 Pa pressure, mounting points, airflow direction, and system resistance.

Is 109P0624H701 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

What IP protection is documented for 109P0624H701?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 109P0624H701 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Why choose 109P0624H701 instead of a standard fan?

Its 24 VDC rating and documented a listed input of 1.44 w is the notable efficiency-related parameter. provide model-specific selection data without relying on unlisted claims.
