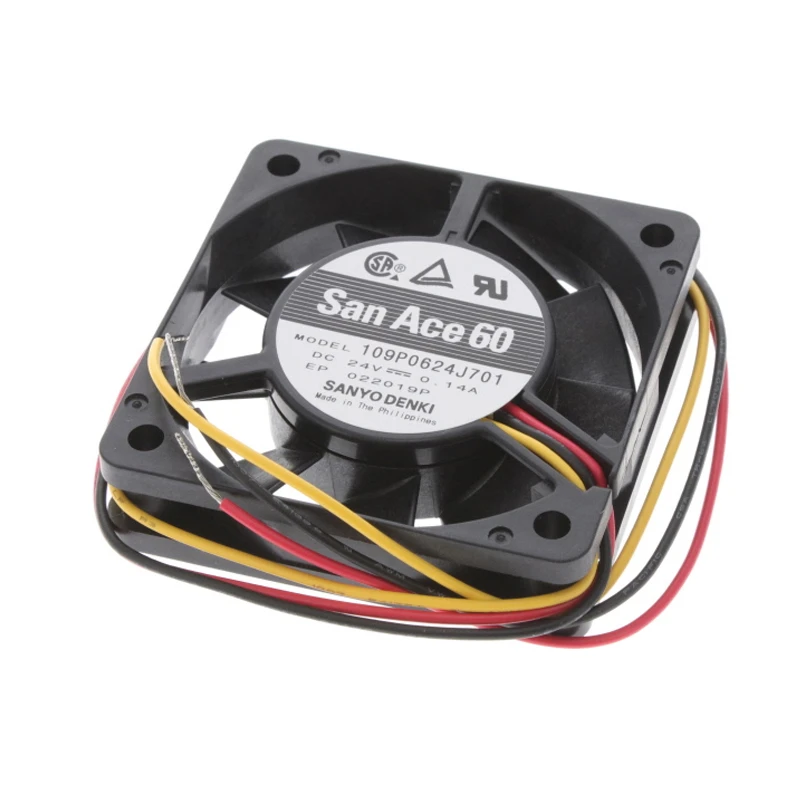

109P0624J701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0624J701 | Sanyo Denki 24VDC 3.36W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0624J701 combines a 60 × 60 × 15 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 36.1 m³/h airflow figure supports its stated equipment-cooling role. Selection focus: duty point matching rotational rating.

Product Features

Rated Voltage(V)	24
Size(mm)	606015
Max.Air Flow(m³/h)	36.1
Max.Pressure(Pa)	86.4
Input Power(W)	3.36
Speed(rpm)	6200
Noise(db)	44

Product Features

Low Vibration Fan

109P0624J701 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

A listed maximum airflow of 36.1 m3/h and maximum pressure of 86.4 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Confirm inlet clearance around nearby cables. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109P0624J701 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

The San Ace 109P0624J701 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109P0624J701 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What supply voltage does 109P0624J701 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 109P0624J701 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 109P0624J701 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109P0624J701 be matched to an enclosure?

Check its 60 × 60 × 15 mm size, 36.1 m³/h airflow, 86.4 Pa pressure, mounting points, airflow direction, and system resistance.

Is 109P0624J701 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.
