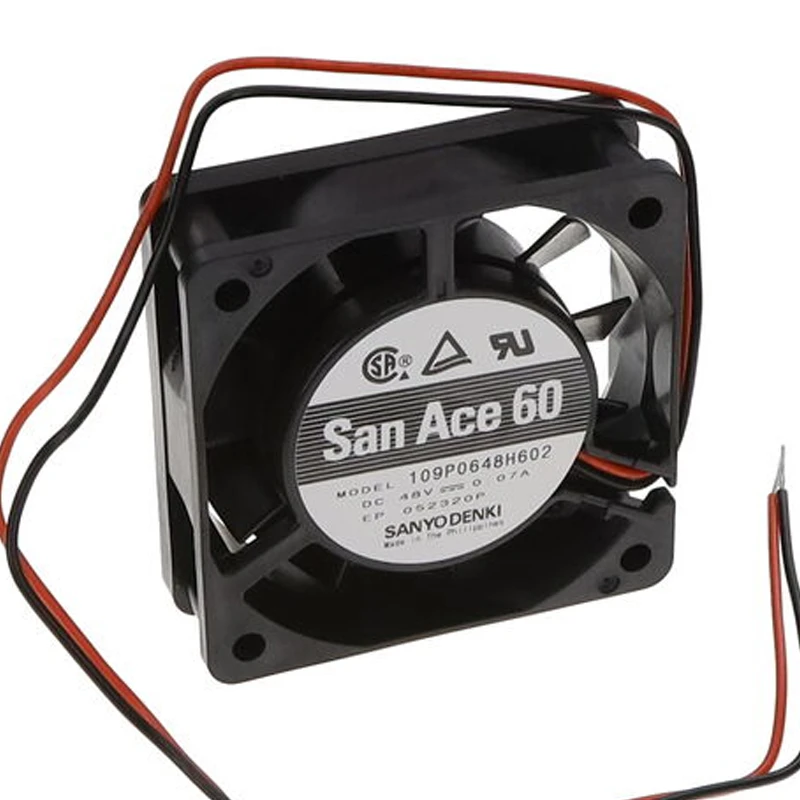

109P0648H602 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0648H602 | Sanyo Denki 48VDC 3.36W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 60 × 60 × 20 mm Sanyo Denki 109P0648H602 brings 48 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Review its frame geometry during spares assessment. Validate mounting and wiring from the model drawing. Focus: duty point matching operating point.

Product Features

Rated Voltage(V)	48
Size(mm)	606020
Max.Air Flow(m³/h)	32.6
Max.Pressure(Pa)	52.8
Input Power(W)	3.36
Speed(rpm)	5600
Noise(db)	41

Product Features

Reliable Fan Cooling

SANYO DENKI positions 109P0648H602 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 32.6 m3/h and maximum pressure of 52.8 Pa give engineers a clear basis for matching the fan to enclosure resistance. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Check startup demand against the power supply. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109P0648H602 is suitable for server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Storage Systems

The San Ace 109P0648H602 supports thermal management in storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

ICT Equipment

For network and other ICT hardware, 109P0648H602 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

What bearing type does 109P0648H602 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Does 109P0648H602 have a pressure rating?

The worksheet lists 52.8 Pa. Use the official curve to match it to system resistance.

What equipment is 109P0648H602 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 109P0648H602?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109P0648H602?

The worksheet lists 32.6 m³/h. Compare the operating point with system resistance and the official performance curve.
