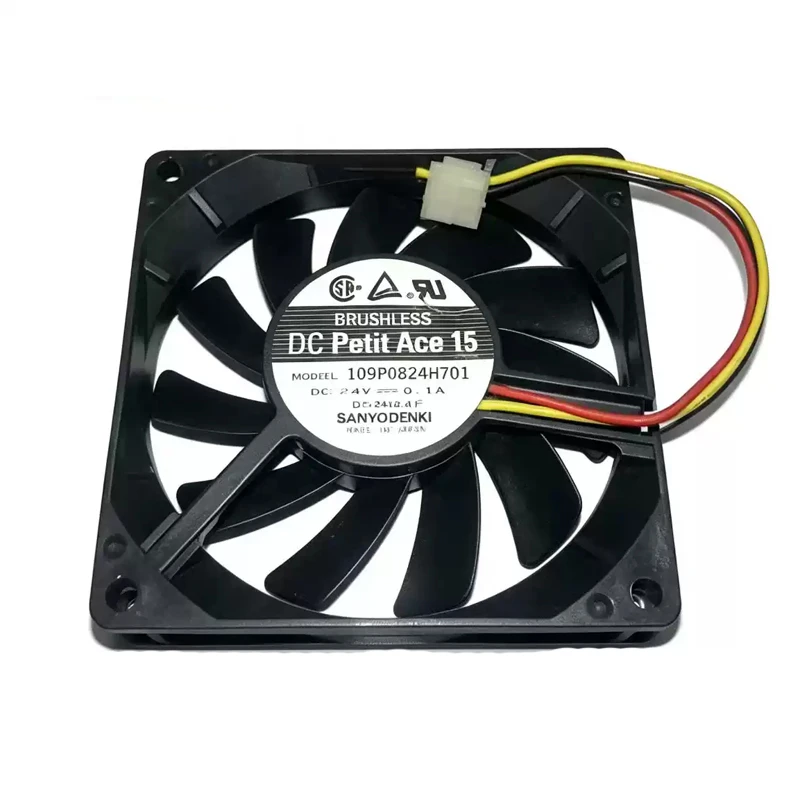

109P0824H701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0824H701 | Sanyo Denki 24VDC 2.4W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109P0824H701 is a Sanyo Denki 24 VDC, 80 × 80 × 15 mm DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The recorded pressure capability should guide maintenance preparation. Confirm environmental protection for the ordered version.

Product Features

Rated Voltage(V)	24
Size(mm)	808015
Max.Air Flow(m³/h)	53.9
Max.Pressure(Pa)	29.4
Input Power(W)	2.4
Speed(rpm)	3100
Noise(db)	31

Product Features

Pressure Cooling

109P0824H701 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The rated peak airflow of 53.9 m3/h combines with 29.4 Pa pressure capability to support useful flow after installation losses are considered. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Test component temperatures at peak load. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 109P0824H701 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

SANYO DENKI 109P0824H701 serves storage arrays and data appliances that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

ICT Equipment

109P0824H701 is suitable for network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Frequently Asked Questions

Is 109P0824H701 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

What IP protection is documented for 109P0824H701?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What maintenance does 109P0824H701 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 109P0824H701 instead of a standard fan?

Its 24 VDC rating and documented 29.4 pa maximum pressure is the most distinctive duty-point parameter. provide model-specific selection data without relying on unlisted claims.

What input power is listed for 109P0824H701?

The worksheet lists 2.4 W. Check supply capacity and operating conditions before commissioning.
