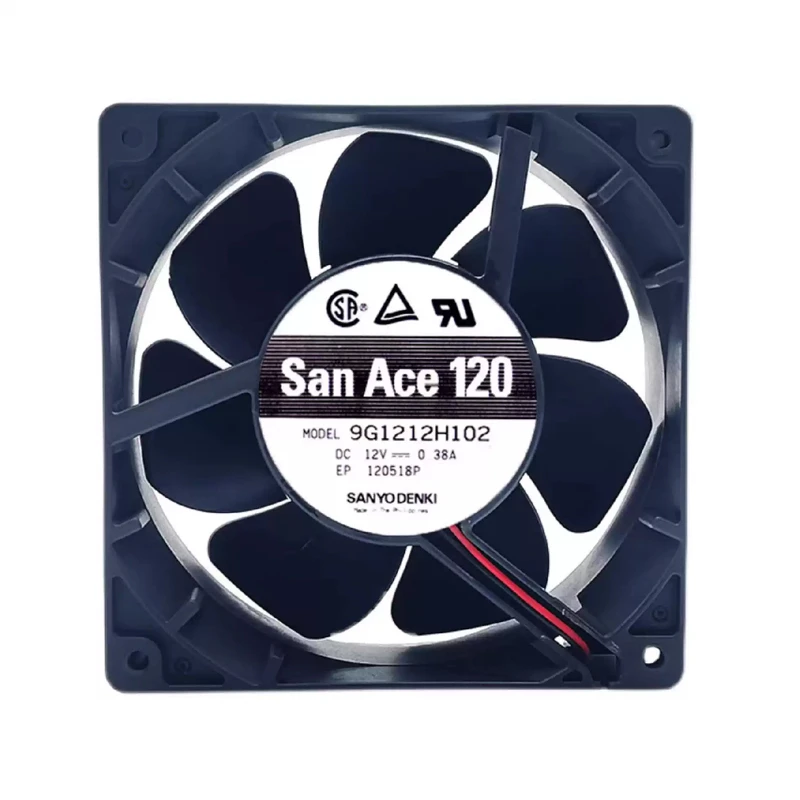

9G1212H102 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1212H102 | Sanyo Denki 12VDC 4.56W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9G1212H102 for servers, UPS systems, and telecom equipment as a 12 VDC DC axial fan with 119 × 119 × 38 mm dimensions. Its 2600 rpm rating defines a lower-speed operating point. During equipment integration, compare the model's installation footprint. Match the exact part number before approving a substitute.

Datasheet:: 9G1212H102 | Sanyo Denki 12VDC 4.56W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	11911938
Max.Air Flow(m³/h)	168.2
Max.Pressure(Pa)	70.5
Input Power(W)	4.56
Speed(rpm)	2600
Noise(db)	39

Product Features

Low Vibration Fan

For servers, storage systems and ICT equipment, the SANYO DENKI 9G1212H102 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

The rated peak airflow of 168.2 m3/h combines with 70.5 Pa pressure capability to support useful flow after installation losses are considered. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Review grille loss at the required duty point. This improves consistency between prototype and production. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 9G1212H102 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Storage Systems

SANYO DENKI 9G1212H102 serves storage arrays and data appliances that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

ICT Equipment

9G1212H102 is suitable for network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Frequently Asked Questions

What should be checked if 9G1212H102 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 9G1212H102 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 9G1212H102?

Use rated voltage, 119 × 119 × 38 mm dimensions, 168.2 m³/h airflow, 2600 rpm, and 4.56 W input for preliminary comparison.

What certifications apply to 9G1212H102?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 9G1212H102 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
