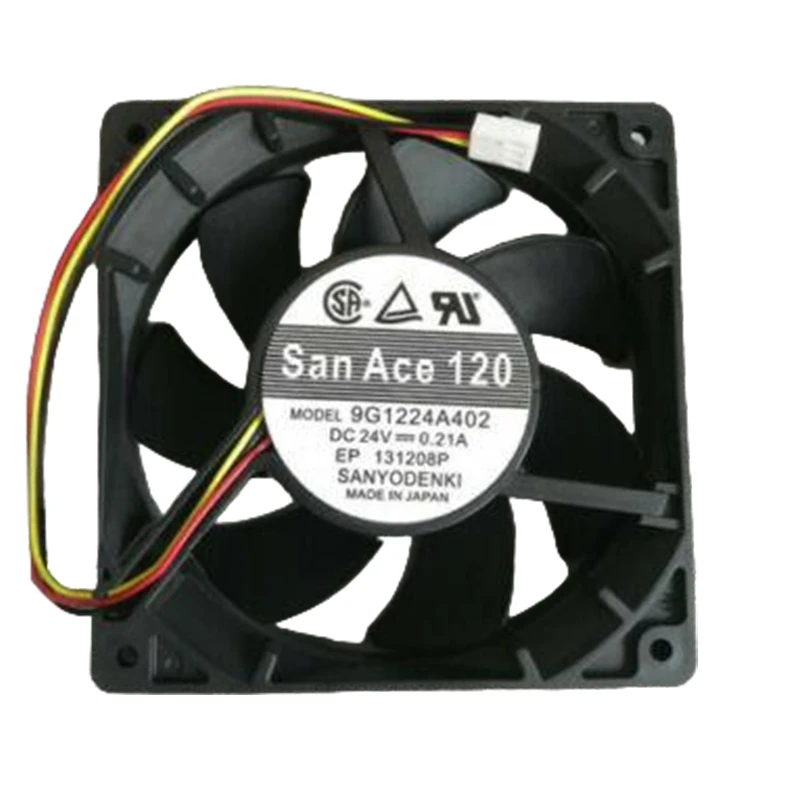

9G1224A402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224A402 | Sanyo Denki 24VDC 5.04W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9G1224A402 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 120 × 120 × 25 mm dimensions. Its listed airflow of 170 m³/h is the standout performance value. Treat the sound level as a primary input to acoustic assessment. Treat bearing and life data as suffix-specific.

Datasheet:: 9G1224A402 | Sanyo Denki 24VDC 5.04W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012025
Max.Air Flow(m³/h)	170
Input Power(W)	5.04
Speed(rpm)	3150
Noise(db)	44

Product Features

Efficient Cooling

SANYO DENKI positions 9G1224A402 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

The specified maximum airflow of 170 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Review grille loss at the required duty point. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 9G1224A402 serves server chassis and computing nodes that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Storage Systems

9G1224A402 is suitable for storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 9G1224A402 supports thermal management in network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Frequently Asked Questions

What maintenance does 9G1224A402 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 9G1224A402 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 170 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

What supply voltage does 9G1224A402 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9G1224A402 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 9G1224A402 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9G1224A402 be matched to an enclosure?

Check its 120 × 120 × 25 mm size, 170 m³/h airflow, mounting points, airflow direction, and system resistance.
