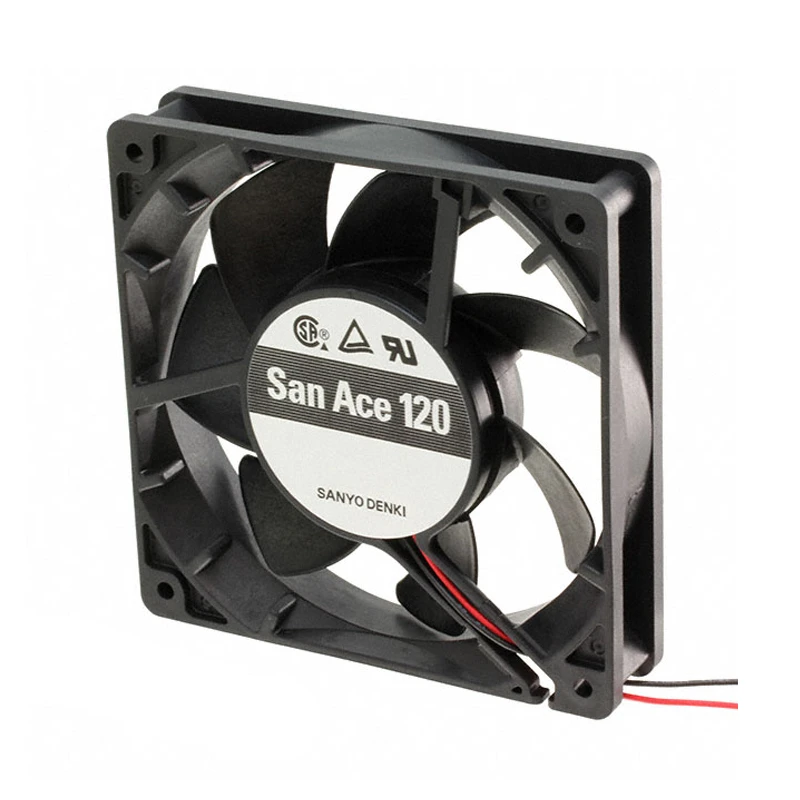

9G1224F402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224F402 | Sanyo Denki 24VDC 2.4W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9G1224F402 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 119 × 119 × 25 mm dimensions. Its 2250 rpm rating defines a lower-speed operating point. Review its installation footprint during equipment integration. Verify the exact bearing and signal options in the datasheet.

Datasheet:: 9G1224F402 | Sanyo Denki 24VDC 2.4W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911925
Max.Air Flow(m³/h)	117.6
Max.Pressure(Pa)	42.1
Input Power(W)	2.4
Speed(rpm)	2250
Noise(db)	35

Product Features

Reliable Fan Cooling

The San Ace 9G1224F402 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

The rated peak airflow of 117.6 m3/h combines with 42.1 Pa pressure capability to support useful flow after installation losses are considered. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Keep the impeller path clear of wiring. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 9G1224F402 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Storage Systems

SANYO DENKI 9G1224F402 serves storage arrays and data appliances that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

ICT Equipment

9G1224F402 is suitable for network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

Is 9G1224F402 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 9G1224F402?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 9G1224F402 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 9G1224F402 instead of a standard fan?

Its 24 VDC rating and documented its 2250 rpm rating defines a lower-speed operating point. provide model-specific selection data without relying on unlisted claims.

How noisy is 9G1224F402?

The worksheet lists 35 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
