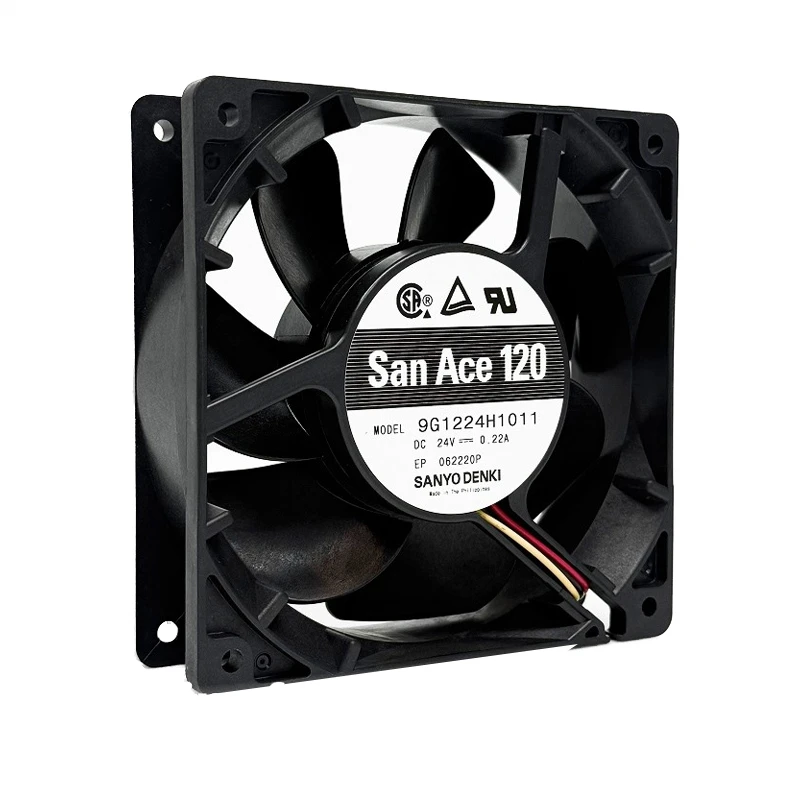

9G1224H1011 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224H1011 | Sanyo Denki 24VDC 5.28W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For thermal management in servers, UPS systems, and telecom equipment, the 9G1224H1011 provides a 24 VDC DC axial fan configuration measuring 119 × 119 × 38 mm. Its 2600 rpm rating defines a lower-speed operating point. Treat the equipment fit as a primary input to controller selection. Validate mounting and wiring from the model drawing.

Datasheet:: 9G1224H1011 | Sanyo Denki 24VDC 5.28W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	166.2
Max.Pressure(Pa)	70.5
Input Power(W)	5.28
Speed(rpm)	2600
Noise(db)	39

Product Features

Efficient Cooling

SANYO DENKI positions 9G1224H1011 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 166.2 m3/h maximum airflow supports rapid air exchange, while 70.5 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Preserve outlet space to limit recirculation. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 9G1224H1011 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

9G1224H1011 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

ICT Equipment

The San Ace 9G1224H1011 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What should procurement confirm for 9G1224H1011?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 9G1224H1011 have a pressure rating?

The worksheet lists 70.5 Pa. Use the official curve to match it to system resistance.

What equipment is 9G1224H1011 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 9G1224H1011?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 9G1224H1011 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 9G1224H1011?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.
