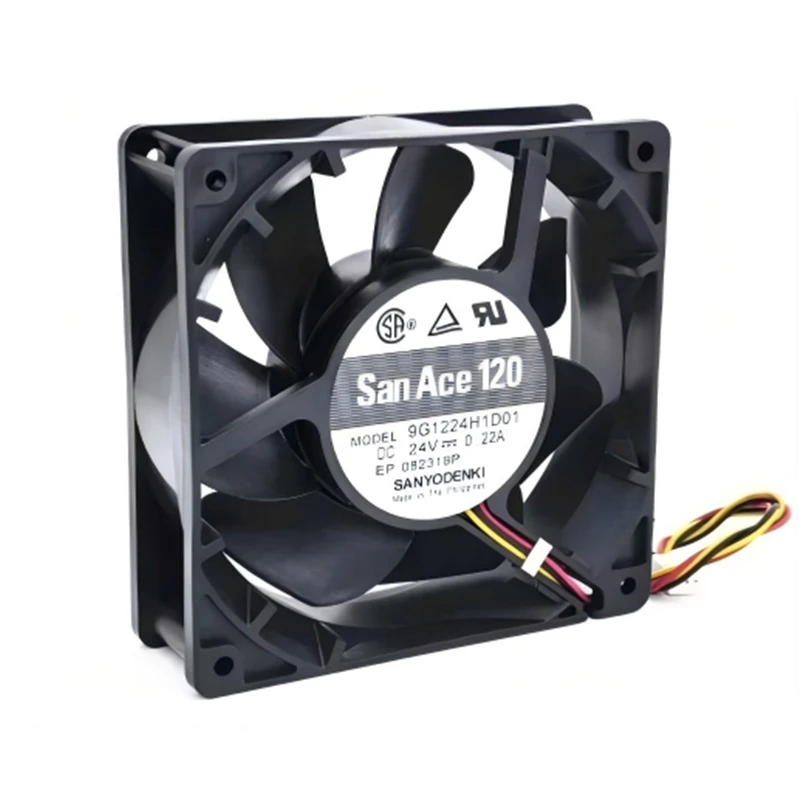

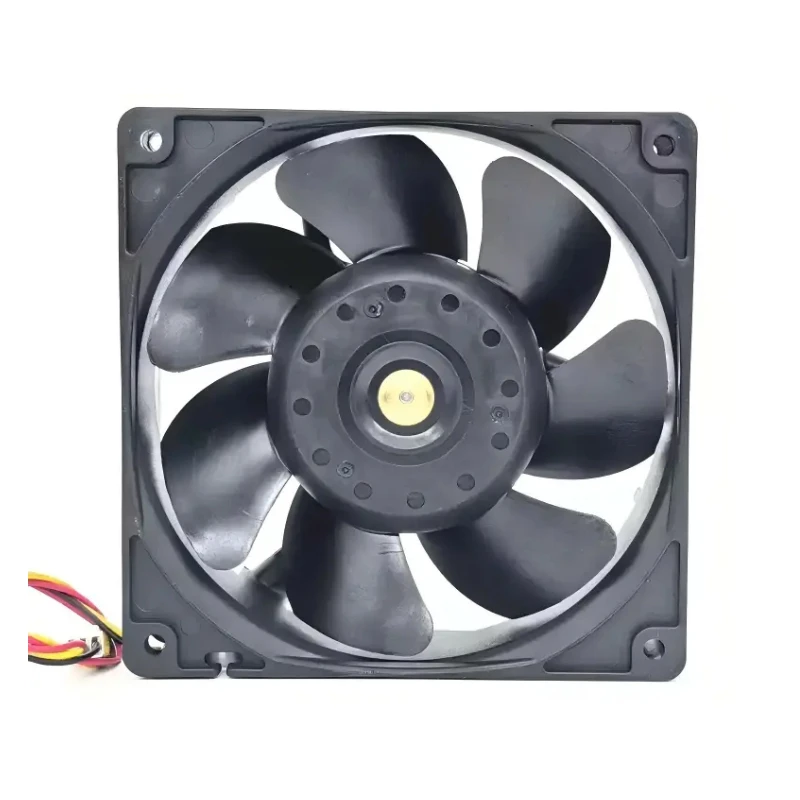

9G1224H1D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224H1D01 | Sanyo Denki 24VDC 5.28W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 119 × 119 × 38 mm Sanyo Denki 9G1224H1D01 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. The recorded frame geometry should guide mounting verification. Verify the exact bearing and signal options in the datasheet. Focus: power budget review motor input.

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	168.3
Max.Pressure(Pa)	70.5
Input Power(W)	5.28
Speed(rpm)	2600
Noise(db)	39

Product Features

Stable San Ace Fan

The SANYO DENKI 9G1224H1D01 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 168.3 m3/h airflow and 70.5 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Review airflow direction before design release. The outcome supports dependable long-term equipment service. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 9G1224H1D01 supports thermal management in server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 9G1224H1D01 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 9G1224H1D01 serves network and other ICT hardware that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Can 9G1224H1D01 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 9G1224H1D01 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9G1224H1D01 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 9G1224H1D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Does 9G1224H1D01 have a pressure rating?

The worksheet lists 70.5 Pa. Use the official curve to match it to system resistance.

What certifications apply to 9G1224H1D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.
